Effects of Solid Solution and Aging Treatment on Texture Evolution and Properties of Cu-Ni-Si Alloy

Abstract:

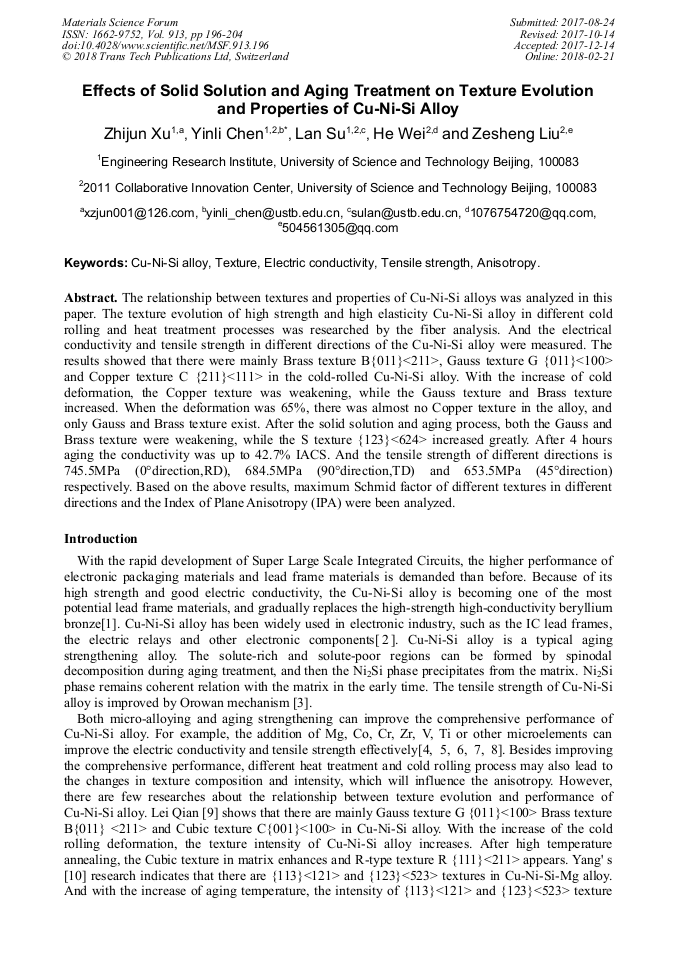

The relationship between textures and properties of Cu-Ni-Si alloys was analyzed in this paper. The texture evolution of high strength and high elasticity Cu-Ni-Si alloy in different cold rolling and heat treatment processes was researched by the fiber analysis. And the electrical conductivity and tensile strength in different directions of the Cu-Ni-Si alloy were measured. The results showed that there were mainly Brass texture B{011}<211>，Gauss texture G {011}<100> and Copper texture C {211}<111> in the cold-rolled Cu-Ni-Si alloy. With the increase of cold deformation, the Copper texture was weakening, while the Gauss texture and Brass texture increased. When the deformation was 65%, there was almost no Copper texture in the alloy, and only Gauss and Brass texture exist. After the solid solution and aging process, both the Gauss and Brass texture were weakening, while the S texture {123}<624> increased greatly. After 4 hours aging the conductivity was up to 42.7% IACS. And the tensile strength of different directions is 745.5MPa (0°direction,RD), 684.5MPa (90°direction,TD) and 653.5MPa (45°direction) respectively. Based on the above results, maximum Schmid factor of different textures in different directions and the Index of Plane Anisotropy (IPA) were been analyzed.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 196-204
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.196
• Online since: February 2018
• Authors: Zhi Jun Xu, Yin Li Chen*, Lan Su, He Wei, Ze Sheng Liu
• Keywords: Anisotropy, Cu-Ni-Si Alloy, Electrical Conductivity, Tensile Strength, Texture

References

[1] Yuwen Cao, Jusheng Ma, Xiangyun Tang, etc. Design of Cu-Ni-Si copper alloy for lead frame.

[2] Sanhua Li, Zhou Li, Qian Lei, etc. Microstructure and Properties of Superhigh Strength Cu-Ni-(Al)-Si Alloy[J]. RARE METAL MATERIALS AND ENGINEERING, 44(6) (2015) 1427-1431.

[3] Rdzawski Z，Stobrawa J. Thermomechanical Processing of Cu-Ni-Si-Cr-Mg alloy[J] . Materials Science and Technology[J], 9(02) (1993) 142～149.

DOI: 10.1179/mst.1993.9.2.142

[4] Li Z., Pan Z.Y., Zhao Y.Y., etc. Microstructure and properties of high-conductivity, super- high-strength Cu-8. 0Ni-1. 8Si-0. 6Sn-0. 15Mg alloy [J]. J. Mater. Res, 24(6) (2009) 2122-2129.

DOI: 10.1557/jmr.2009.0251

[5] Wei wang, Huijun kang, Zongning Chen, etc. Effects of Cr and Zr additions on microstructure and properties of Cu-Ni-Si alloys[J]. Materials Science & Engineering A, (673) (2016) 378-390.

DOI: 10.1016/j.msea.2016.07.021

[6] S. Z. Han, J. h. gu, J. H. lee, etc. Effect of V addition on hardness and electrical conductivity in Cu-Ni-Si alloys[J]. Metals and Materials International, 19(4) (2013) 637-641.

DOI: 10.1007/s12540-013-4002-x

[7] Chihiro Watanabe, Satoshi tak'eshita, Ryoichi monzen. Effects of Small Addition of Ti on Strength and Microstructure of a Cu-Ni-Si Alloy[J]. Metallurgical and Materials Transactions, 46(6) (2015) 2469-2475.

DOI: 10.1007/s11661-015-2870-z

[8] Zhiyong Pan, Mingpu Wang, Zhou Li, etc. Thermomechanical treatment of super high strength Cu-8. 0Ni-1. 8Si alloy[J]. Transactions of Nonferrous Metals Society of China, 17(S1) (2007) 1076-1080.

[9] Qian Lei. Fundamental Research and Preparation of an Ultrahigh Strength, Elastic and Conductive CuNiSi Alloy [D]. Changsha: Central South University, (2014).

[10] Taisheng Yang. Study on Anisotropy and Texture evolutionof Cu-Ni-Si-Mg Alloy for Lead Frame [D]. Nanchang: Jiangxi University of Science and Technology, (2016).

[11] S.R. Reddy M.Z. -Ahmed G.D. -Sathiaraj P.P. -Bhattacharjee. Effect of strain path on microstructure and texture formation in cold-rolled and annealed FCC equiatomic Co Cr Fe Mn Ni high entropy alloy[J]. Intermetallics, 87 (2017) 94-103.

DOI: 10.1016/j.intermet.2017.04.016

[12] Haile Yan. Mechanical Behavior and Texture Evolution of Low Stacking Fault Energy FCC Metals at Large Deformation [D]. Shengyang: Northeastern University, (2012).

[13] Chunsheng Xie, Qiming Zhai, Wenqing Xu, etc. Study and Application Development of Strengthening Theory of Copper Alloy with High Strength and High Conductivity[J]. Heat Treatment of Metals, 32(1) (2007) 12-20.

[14] R. Monzen, C. Watanabe, Z.G. Zhang, and R. Monzen: Microstructure and mechanical properties of Cu-Ni-Si alloys. J. Soc. Mat. Sci. Jpn. 54, 717 (2005).

DOI: 10.2472/jsms.54.717

[15] D.M. Zhao, Q.M. Dong, and P. Liu: Structure and strength of the age hardened Cu-Ni-Si alloy. Mater. Chem. Phys. 79, 81 (2003).

[16] Li Peng. Effect of Heat Treatment on Microstructure and Mechanical Properties of Cu-Ni-Co Alloy[D]. Lanzhou: Lanzhou University of Technology, (2014).

[17] Gongting Zhang. Effect of annealing temperatures on the planar anisotropyof a high strength IF steel[J]. HEAT TREATMENT OF METALS, 2012, v. 37; No. 423(11): 92-95.

[18] Gengxiang Hu, Xun Cai, Yonghua Rong. Fundamentals of Materials Science [M]，Shanghai： Shanghai Jiao Tong University Press，(2013) 173-176.

[19] Xinhua Wang, Fan Wu, Huie Hu. Research on anisotropy of rolled plates of 5083 aluminum alloy [J]. Light Alloy Fabrication Technology, 42 (10) (2014) 58-62.

[20] Zhiyong Pan, Mingpu Wang, Zhou Li, etc. Effect of Aging and Cold Deforming on Microstructure and Performance of Cu-5. 2Ni-1. 2Si Alloy[J]. RARE METAL MATERIALS AND ENGINEERING, 38(S1) (2009) 485-489.

[21] Qian Lei, Zhu Xiao, Weiping Hu, etc. Phase transformation behaviors and properties of a high strength Cu-Ni-Si alloy[J]. Materials Science & Engineering A, 697 (2017) 37-47.

DOI: 10.1016/j.msea.2017.05.001
