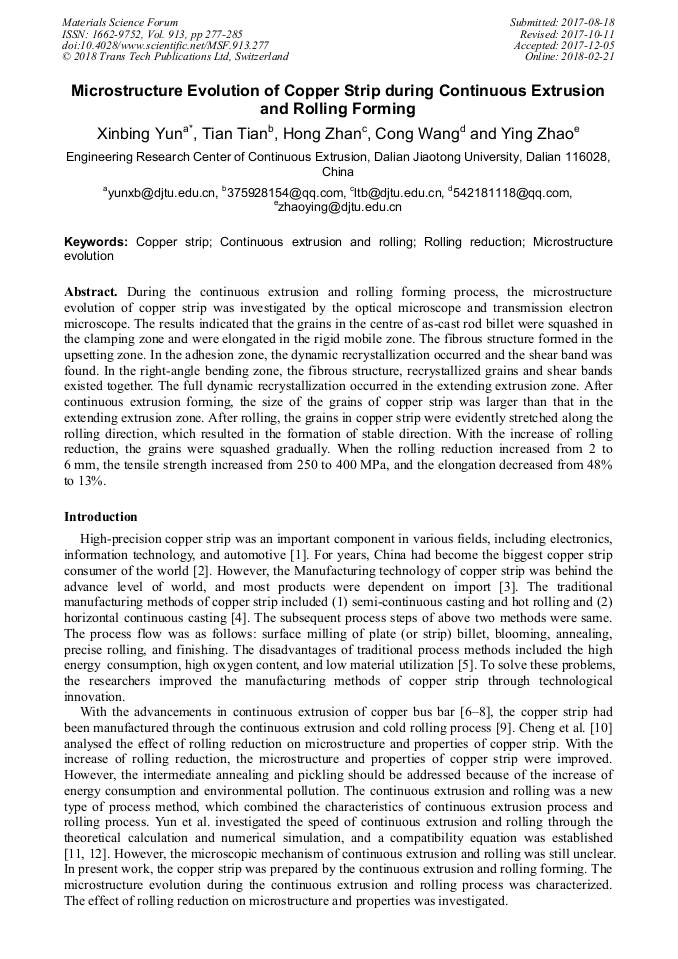

Microstructure Evolution of Copper Strip during Continuous Extrusion and Rolling Forming

Abstract:

During the continuous extrusion and rolling forming process, the microstructure evolution of copper strip was investigated by the optical microscope and transmission electron microscope. The results indicated that the grains in the centre of as-cast rod billet were squashed in the clamping zone and were elongated in the rigid mobile zone. The fibrous structure formed in the upsetting zone. In the adhesion zone, the dynamic recrystallization occurred and the shear band was found. In the right-angle bending zone, the fibrous structure, recrystallized grains and shear bands existed together. The full dynamic recrystallization occurred in the extending extrusion zone. After continuous extrusion forming, the size of the grains of copper strip was larger than that in the extending extrusion zone. After rolling, the grains in copper strip were evidently stretched along the rolling direction, which resulted in the formation of stable direction. With the increase of rolling reduction, the grains were squashed gradually. When the rolling reduction increased from 2 to 6 mm, the tensile strength increased from 250 to 400 MPa, and the elongation decreased from 48% to 13%.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 277-285
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.277
• Online since: February 2018
• Authors: Xin Bing Yun*, Tian Tian, Hong Zhan, Cong Wang, Ying Zhao
• Keywords: Continuous Extrusion, Continuous Rolling, Copper Strip, Microstructure Evolution, Rolling Reduction

References

[1] B. Wang, Production and market of copper and copper alloy strip, World Nonferrous Metals. 12 (2007) 34-36.

[2] B. Wang, Steady development of China's copper processing industry in the face of adversity, Chinese Journal of Nonferrous Metals. 6 (2010)1-2.

[3] J. Wang, Analysis of copper with industry conditions, Nonferrous Metals. 12 (2010) 32-33.

[4] B. Wang, Production and market of copper and copper alloy strip, World Nonferrous Metals. 1 (2008) 34-35.

[5] L. Y. Lan, Y. Q. Li, H. Y. Yang, Copper and Copper Alloy Precision Strip Production Technology, Metallurgical Industry Press, Beijing, (2009).

[6] B. Y. Song, N. N. Song, L. Chen, Analysis of continuous extrusion extending forming force for wide copper bus-bar, Journal of Plasticity Engineering. 4 (2011) 6-10.

[7] M. Yu, N. N. Dai, Y. Zhong, Calculation of pressure and power required by continuous extrusion of copper bus bar by slab method, Chinese Mechanical Engineering. 21 (2012) 2630-2633.

[8] X. B. Yun, M. L. Yao, Y. Wu, B. Y. Song, Numerical simulation of continuous extrusion extending forming under the large expansion ratio for copper strip, Applied Mechanics and Materials. 80-81 (2011) 91-95.

DOI: 10.4028/www.scientific.net/amm.80-81.91

[9] G. L. Xu, Y. F. Yao, Y. F. Luo, Production of oxygen-free copper strip by continuous conforming, Special Casting & Nonous Alloys. 7 (2011) 648-650.

[10] Y. L. Cheng, X. B. Yun, J. Y. Yang, Effect of rolling deformation on microstructure and mechanical properties of continuous extrusion copper strip, Journal of Plasticity Engineering. 5 (2014) 77-81.

[11] X. B. Yun, W. You, Y. Zhao, B. Li, Z. X. Fan, Continuous extrusion and rolling forming velocity of copper strip, Transactions of Nonferrous Metals Society of China. 4 (2013) 1108-1113.

DOI: 10.1016/s1003-6326(13)62572-8

[12] X. B. Yun, W. Qi, China Patent ZL 201320102889.5. (2013).

[13] J. Wang, X. B. Yun, B. Li, Z. X. Fan, B. Y. Song, Microstructure evolution of copper during continuous extrusion process, Nonferrous Metals. 5 (2011) 38-41.

[14] D. H. Liu, Y. C. Su, C. P. Deng, Q. P. Hu, Z. Y. Pan, Microstructure and properties of ACR copper tube during three-roll planetary milling process, The Chinese Journal of Nonferrous Metals. 5 (2006) 881-886.

[15] M. A. Chen, H. Z. Li, X. Q. Li, C. M. Liu, W. L. Liu, Features of fractured surface and microstructure of plastic shearing zone of red copper bar under axial load, The Chinese Journal of Nonferrous Metals. 4 (2005) 513-518.

[16] S. Xia, H. Li, B. X. Zhou, W. J. Chen, Control and application of annealing twins in metallic materials: grain boundary engineering, Chinese Journal of Nature. 2 (2010) 94-100.
