Formation of Face Centered Cubic Titanium Thin Films on MgO(111) Single Crystal Substrate

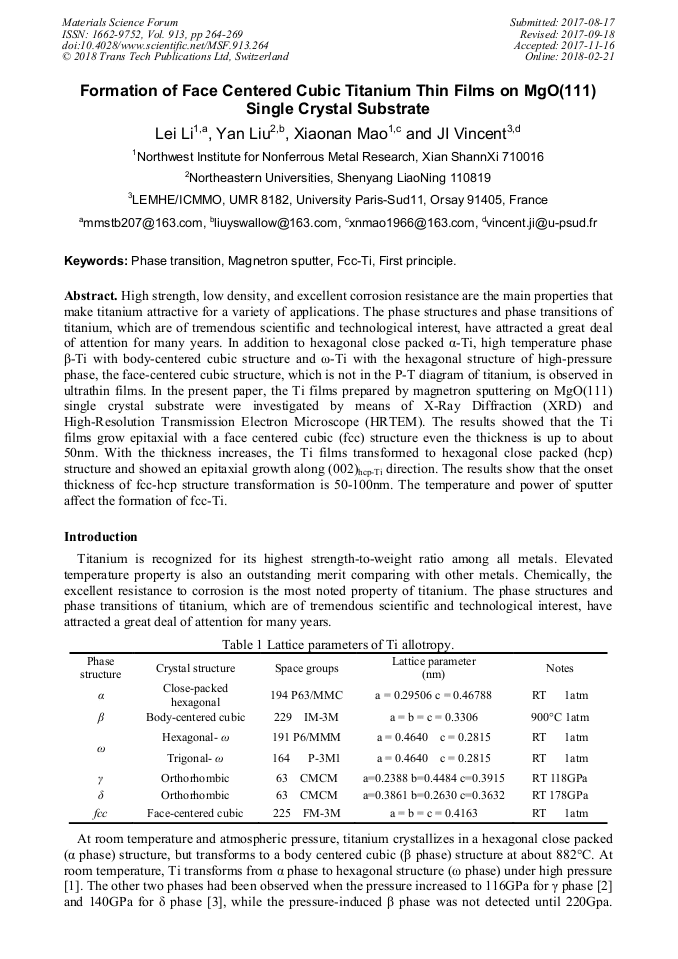

Article Preview

Abstract:

High strength, low density, and excellent corrosion resistance are the main properties that make titanium attractive for a variety of applications. The phase structures and phase transitions of titanium, which are of tremendous scientific and technological interest, have attracted a great deal of attention for many years. In addition to hexagonal close packed α-Ti, high temperature phase β-Ti with body-centered cubic structure and ω-Ti with the hexagonal structure of high-pressure phase, the face-centered cubic structure, which is not in the P-T diagram of titanium, is observed in ultrathin films. In the present paper, the Ti films prepared by magnetron sputtering on MgO(111) single crystal substrate were investigated by means of X-Ray Diffraction (XRD) and High-Resolution Transmission Electron Microscope (HRTEM). The results showed that the Ti films grow epitaxial with a face centered cubic (fcc) structure even the thickness is up to about 50nm. With the thickness increases, the Ti films transformed to hexagonal close packed (hcp) structure and showed an epitaxial growth along (002)_hcp-Ti direction. The results show that the onset thickness of fcc-hcp structure transformation is 50-100nm. The temperature and power of sputter affect the formation of fcc-Ti.

You might also be interested in these eBooks

Functional and Functionally Structured Materials II

Info:

Periodical:

Materials Science Forum (Volume 913)

Pages:

264-269

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.913.264

Citation:

Cite this paper

Online since:

February 2018

Authors:

Lei Li*, Yan Liu, Xiao Nan Mao, Vincent Ji

Keywords:

Fcc-Ti, First Principle, Magnetron Sputtering, Phase Transition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J.C. Jamieson, Crystal Structures of Titanium, Zirconium, and Hafnium at High Pressures, Science. 140 (1963) 72-73.

DOI: 10.1126/science.140.3562.72

[2] Y.K. Vohra, P.T. Spencer, Novel gamma-phase of titanium metal at megabar pressures, Phys. Rev. Lett. 86 (2001) 3068-3071.

DOI: 10.1103/physrevlett.86.3068

[3] Y. Akahama, H. Kawamura, T. Lebihan, New δ(distorted-bcc)-Titanium to 220 GPa, Phys. Rev. Lett. 87 (2001) 275503.

DOI: 10.1103/physrevlett.87.275503

[4] F.E. Wawner, K.R. Lawless, Epitaxial Growth of Titanium Thin Films, J. Vac. Sci. Technol. 6 (1969) 588-590.

DOI: 10.1116/1.1315691

[5] A.A. Saleh, V. Shutthanandan, N.R. Shivaparan, R.J. Smith, Epitaxial growth of fcc Ti films on Al(001) surfaces, Phys. Rev. B. 56 (1997) 9841-9847.

DOI: 10.1103/physrevb.56.9841

[6] S.K. Kim, F. Jona, P.M. Marcus. Growth of face-centred-cubic titanium on aluminium, J. Phys.: Condens Matter. 8 (1996) 25.

DOI: 10.1088/0953-8984/8/1/005

[7] Y. Sugawara, N. Shibata, Interface structure of face-centered-cubic-Ti thin film grown on 6H-SiC substrate, J. Mate. Res. 15 (2000) 2121-2124.

DOI: 10.1557/jmr.2000.0305

[8] T. Kado, Structure of Ti films deposited on MgO(001) substrates, Surf. Sci. 454 (2000) 783-789.

DOI: 10.1016/s0039-6028(00)00139-4

[9] J. Chakraborty, K. Kumar, R. Ranjan, S.G. Chowdhury, S.R. Singh, Thickness-dependent fcc–hcp phase transformation in polycrystalline titanium thin films, Acta Mater. 59 (2011) 2615-2623.

DOI: 10.1016/j.actamat.2010.12.046

[10] M. Fazio, D. Vega, A. Kleiman, D. Colombo, L.M. Franco Arias, A. Márquez, Study of the structure of titanium thin films deposited with a vacuum arc as a function of the thickness, Thin Solid Films. 593 (2015) 110-115.

DOI: 10.1016/j.tsf.2015.09.015

[11] D.H. Hong, T.W. Lee, S.H. Lim, W.Y. Kim, S.K. Hwang, Stress-induced hexagonal close-packed to face-centered cubic phase transformation in commercial-purity titanium under cryogenic plane-strain compression, Scripta. Mater. 69 (2013) 405-408.

DOI: 10.1016/j.scriptamat.2013.05.038

[12] H.C. Wu, A. Kumar, J. Wang, X.F. Bi, C.N. Tomé, Z. Zhang, S.X. Mao, Rolling-induced Face Centered Cubic Titanium in Hexagonal Close Packed Titanium at Room Temperature, Scientific Reports. 6 (2016) 24370.

DOI: 10.1038/srep24370

[13] I. Manna, P.P. Chattopadhyay, P. Nandi, F. Banhart, H. -J. Fecht, Formation of face-centered-cubic titanium by mechanical attrition, J. Appl. Phys. 93 (2003) 1520-1524.

DOI: 10.1063/1.1530718

[14] E. Galvanetto, F.P. Galliano, F. Borgioli, U. Bardi, A. Lavacchi, XRD and XPS study on reactive plasma sprayed titanium–titanium nitride coatings, Thin Solid Films 384 (2001) 223-229.

DOI: 10.1016/s0040-6090(00)01871-x

[15] Y.L. Jeyachandran, S.K. Narayandass, D. Mangalaraj, S. Areva, J.A. Mielczarski, Properties of titanium nitride films prepared by direct current magnetron sputtering, Mat. Sci. Eng. A. 445 (2007) 223-236.

DOI: 10.1016/j.msea.2006.09.021
