Interfacial Microstructure and Formation Mechanism of Zirconia Ceramic and Nb Brazed with Ag-Cu-Ti Powder without and with Mo-Particle-Reinforced

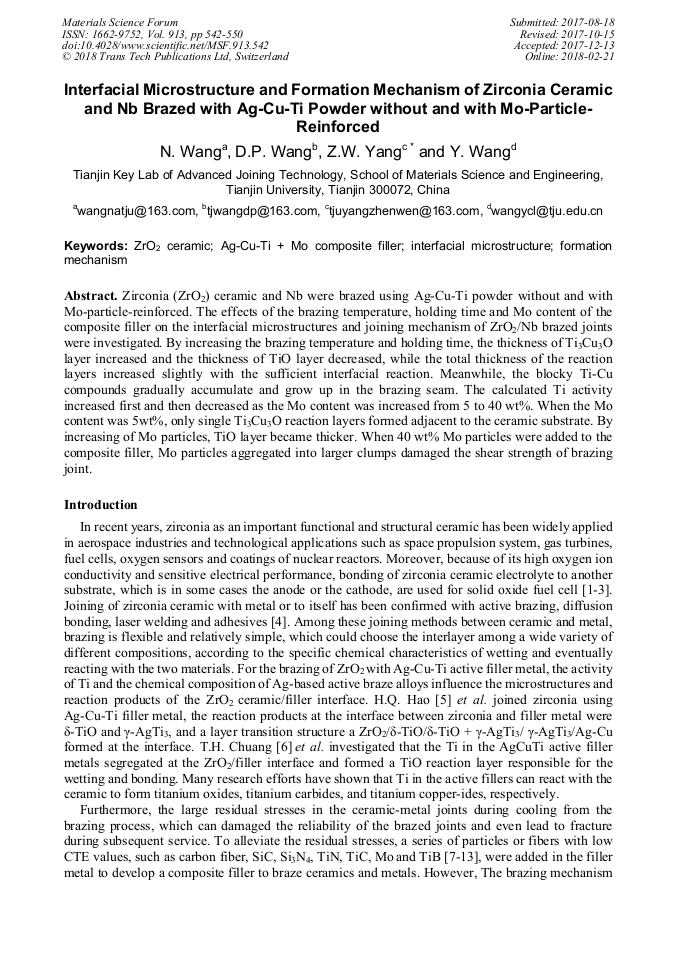

Abstract:

Zirconia (ZrO₂) ceramic and Nb were brazed using Ag-Cu-Ti powder without and with Mo-particle-reinforced. The effects of the brazing temperature, holding time and Mo content of the composite filler on the interfacial microstructures and joining mechanism of ZrO₂/Nb brazed joints were investigated. By increasing the brazing temperature and holding time, the thickness of Ti₃Cu₃O layer increased and the thickness of TiO layer decreased, while the total thickness of the reaction layers increased slightly with the sufficient interfacial reaction. Meanwhile, the blocky Ti-Cu compounds gradually accumulate and grow up in the brazing seam. The calculated Ti activity increased first and then decreased as the Mo content was increased from 5 to 40 wt%. When the Mo content was 5wt%, only single Ti₃Cu₃O reaction layers formed adjacent to the ceramic substrate. By increasing of Mo particles, TiO layer became thicker. When 40 wt% Mo particles were added to the composite filler, Mo particles aggregated into larger clumps damaged the shear strength of brazing joint.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 542-550
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.542
• Online since: February 2018
• Authors: Na Wang, D.P. Wang*, Zhen Wen Yang, Ying Wang
• Keywords: Ag-Cu-Ti+Mo Composite Filler, Formation Mechanism, Interfacial Microstructure, ZrO₂ Ceramic

References

[1] G.W. Liu, G.J. Qiao, H.J. Wang, J.F. Yang, T.J. Lu, Pressureless brazing of zirconia to stainless steel with Ag-Cu filler metal and TiH2 powder, J. Eur. Ceram. Soc. 28 (2008) 2701-2708.

DOI: 10.1016/j.jeurceramsoc.2008.04.008

[2] M. Singh, T. P. Shpargel, R. Asthana, Brazing of stainless steel to yttria-stabilized zirconia using gold-based brazes for solid oxide fuel cell applications, Int. J. Appl. Ceram. Tec. 4 (2007) 119-133.

DOI: 10.1111/j.1744-7402.2007.02126.x

[3] J.A. Fernie, R.A.L. Drew, K.M. Knowles, Joining of engineering ceramics, Int. Mater. Rev. 54 (2009) 283-331.

[4] R.M. Ormerod, Solid oxide fuel cells, Chem. Soc. Rev. 32 (2003) 17-28.

[5] H.Q. Hao, Y.L. Wang, Z.H. Jin, X.T. Wang, Joining of zirconia to zirconia using Ag-Cu-Ti filler metal, J. Mater. Process. Technol. 52 (1995) 238-247.

DOI: 10.1016/0924-0136(94)01611-4

[6] T.H. Chuang, M.S. Yeh, Y.H. Chai, Brazing of zirconia with AgCuTi and SnAgTi active filler metals, Metall. Mater. Trans. A 31 (2000) 1591-1597.

DOI: 10.1007/s11661-000-0169-0

[7] J. Zhang, Y.M. He, Y. Sun, C.F. Liu, Microstructure evolution of Si3N4/Si3N4 joint brazed with Ag-Cu-Ti + SiCp composite filler, Ceram. Int. 36 (2010) 1397-1404.

DOI: 10.1016/j.ceramint.2010.02.010

[8] G. Blugan, J. Kuebler, V. Bissig, J. Janczak-Rusch, Brazing of silicon nitride ceramic composite to steel using SiC-particle-reinforced active brazing alloy, Ceram. Int. 33 (2007) 1033-1039.

DOI: 10.1016/j.ceramint.2006.03.010

[9] Y.X. Zhao, M.R. Wang, J. Cao, X.G. Song, D.Y. Tang, J.C. Feng, Brazing TC4 alloy to Si3N4 ceramic using nano-Si3N4 reinforced AgCu composite filler, Mater. Des. 76 (2015) 40-46.

DOI: 10.1016/j.matdes.2015.03.046

[10] T.P. Wang, Toni Ivas, Christian Leinenbach, J. Zhang, J. Alloys Compd. 651 (2015) 623-630.

[11] J. Roger, F. Audubert, Y.L. Petitcorps, Thermal effect of TiC in the Mo/TiC/SiC system at elevated temperature, J. Alloys Compd. 496 (2010) 244-250.

DOI: 10.1016/j.jallcom.2009.12.158

[12] Q.W. Qiu, Y. Wang, Z.W. Yang, X. Hu, D.P. Wang, Mater. Des. 90 (2016) 650-659.

[13] Y.M. He, J. Zhang, Y. Sun, C.F. Liu, J. Eur. Ceram. Soc. 30 (2010) 3245-3251.

[14] C.D. Qin, N.A. James, B. Derby, Palladium-zirconia diffusion bonds: Mechanical properties and interface reactions, Acta Mater. 40 (1992) 925-938.

DOI: 10.1016/0956-7151(92)90069-q

[15] W.B. Hanson, K.I. Ironside, J.A. Fernie, Active metal brazing of zirconia, Acta Mater. 48 (2000) 4673-4676.

DOI: 10.1016/s1359-6454(00)00256-1

[16] J.C. Feng, X.Y. Dai, D. Wang, R. Li, J. Cao, Microstructure evolution and mechanical properties of ZrO2/TiAl joints vacuum brazed by Ag-Cu filler metal, Mater. Sci. Eng. A 639 (2015) 739-746.

DOI: 10.1016/j.msea.2015.05.059

[17] C. Valette, M.F. Devismes, R. Voytovych, N. Eustathopoulos, Interfacial reactions in alumina/CuAgTi braze/CuNi system, Scripta Mater. 52 (2005) 1-6.

DOI: 10.1016/j.scriptamat.2004.09.008

[18] A.V. Durov, Y.V. Naidich, B.D. Kostyuk, Investigation of interaction of metal melts, J. Mater. Sci. 40 (2005) 2173-2178.

DOI: 10.1007/s10853-005-1928-5

[19] J.J. Stephens, F.M. Hosking, T.J. Headley, P.F. Hlava, F.G. Host, Reaction layers and mechanisms for a Ti-activated braze on sapphire, Metall. Mater. Trans. A 34 (2003) 2963-2972.

DOI: 10.1007/s11661-003-0195-9

[20] J.L. Murray, The Cu-Ti (copper-titanium) system, J. Phase Equil. 4 (1983) 81-95.

[21] A.R. Miedema, A.K. Niessen, The enthalpy of solution for solid binary alloys of two 4d-transition metals, Calphad. 7 (1983) 27-36.

DOI: 10.1016/0364-5916(83)90027-5

[22] K.C. Chou, A general solution model for predicting ternary thermodynamic properties, Calphad. 19 (1995) 315-325.

DOI: 10.1016/0364-5916(95)00029-e

[23] K.C. Chou, Y.A. Chang, A Study of Ternary Geometrical Models, Ber. Bunsenges. Phys. Chem. 93 (1989) 735-741.

[24] N.A. Gokcen, Statistical thermodynamics of alloys. New York: Plenum Press, (1986) 255-261.
