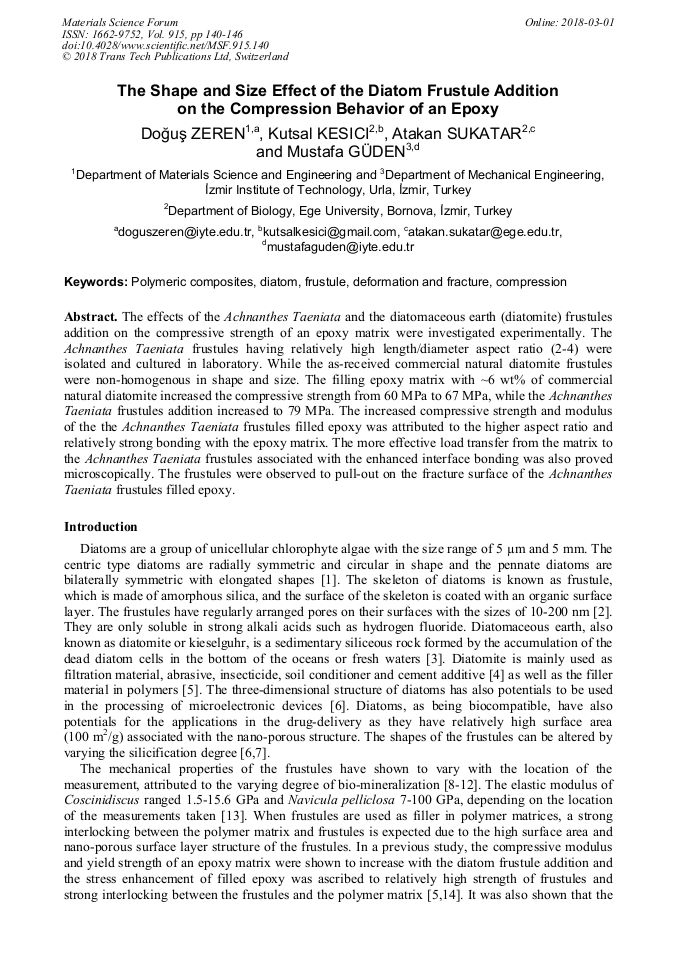

The Shape and Size Effect of the Diatom Frustule Addition on the Compression Behavior of an Epoxy

Abstract:

The effects of the Achnanthes taeniata and the diatomaceous earth (diatomite) frustules addition on the compressive strength of an epoxy matrix were investigated experimentally. The Achnanthes taeniata frustules having relatively high length/diameter aspect ratio (2-4) were isolated and cultured in laboratory. While the as-received commercial natural diatomite frustules were non-homogenous in shape and size. The filling epoxy matrix with ~6 wt% of commercial natural diatomite increased the compressive strength from 60 MPa to 67 MPa, while the Achnanthes taeniata frustules addition increased to 79 MPa. The increased compressive strength and modulus of the the Achnanthes taeniata frustules filled epoxy was attributed to the higher aspect ratio and relatively strong bonding with the epoxy matrix. The more effective load transfer from the matrix to the Achnanthes taeniata frustules associated with the enhanced interface bonding was also proved microscopically. The frustules were observed to pull-out on the fracture surface of the Achnanthes taeniata frustules filled epoxy.

• Periodical: Materials Science Forum (Volume 915)
• Pages: 140-146
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.915.140
• Online since: March 2018
• Authors: Doğuş Zeren*, Kutsal Kesici, Atakan Sukatar, Mustafa Güden
• Keywords: Compression, Deformation, Diatom, Fracture, Frustule, Polymeric Composites

References

[1] A. Falciatore and C. Bowler, Revealing the molecular secrets of marine diatoms, Annu Rev Plant Biol, vol. 53, pp.109-130, (2002).

[2] T. Fuhrmann, S. Landwehr, M. El Rharbi-Kucki, and M. Sumper, Diatoms as living photonic crystals, Applied Physics B: Lasers and Optics, vol. 78, pp.257-260, (2004).

DOI: 10.1007/s00340-004-1419-4

[3] L. E. Antonides, Diatomite, The United States Geological Survey, p.24. 1-24. 6, (1997).

[4] J. Robert D. Crangle, Diatomite, 2010 Minerals Yearbook, vol. September 2011, p.22. 1-22. 6, (2010).

[5] Tasdemirci A, Yuksel S, Karsu D, et al. Diatom frustule filled epoxy: Experimental and numerical study of the quasi-static and high strain rate compression behavior. Mater Sci Eng A-Struct Mater Prop Microstruct Process 2008; 480: 373–382.

DOI: 10.1016/j.msea.2007.07.037

[6] R. Gordon, D. Losic, M. A. Tiffany, S. S. Nagy, and F. A. S. Sterrenburg, The Glass Menagerie: diatoms for novel applications in nanotechnology, Trends in Biotechnology, vol. 27, pp.116-127, (2009).

DOI: 10.1016/j.tibtech.2008.11.003

[7] R. Gordon and J. Parkinson, Potential roles for diatomists in nanotechnology, Journal of nanoscience and nanotechnology, vol. 5, pp.35-40, (2005).

DOI: 10.1166/jnn.2005.002

[8] N. Almqvist, Y. Delamo, B. L. Smith, N. H. Thomson, A. Bartholdson, R. Lal, et al., Micromechanical and structural properties of a pennate diatom investigated by atomic force microscopy, J Microsc, vol. 202, pp.518-32, Jun (2001).

DOI: 10.1046/j.1365-2818.2001.00887.x

[9] L. S. Dimas and M. J. Buehler, Influence of geometry on mechanical properties of bio-inspired silica-based hierarchical materials, Bioinspir Biomim, vol. 7, p.036024, Sep (2012).

DOI: 10.1088/1748-3182/7/3/036024

[10] A. P. Garcia, D. Sen, and M. J. Buehler, Hierarchical Silica Nanostructures Inspired by Diatom Algae Yield Superior Deformability, Toughness, and Strength, Metallurgical and Materials Transactions A, vol. 42, pp.3889-3897, December 01 (2011).

DOI: 10.1007/s11661-010-0477-y

[11] C. E. Hamm, R. Merkel, O. Springer, P. Jurkojc, C. Maier, K. Prechtel, et al., Architecture and material properties of diatom shells provide effective mechanical protection, Nature, vol. 421, pp.841-843, 02/20/print (2003).

DOI: 10.1038/nature01416

[12] G. Subhash, S. Yao, B. Bellinger, and M. R. Gretz, Investigation of mechanical properties of diatom frustules using nanoindentation, J Nanosci Nanotechnol, vol. 5, pp.50-6, Jan (2005).

DOI: 10.1166/jnn.2005.006

[13] Karp-Boss, Lee, Rachel Gueta, and Itay Rousso. Judging Diatoms by Their Cover: Variability in Local Elasticity of Lithodesmium Undulatum Undergoing Cell Division., Ed. Andrew Pelling. PLoS ONE 9. 10 (2014): e109089. PMC. Web. 12 Sept. (2017).

DOI: 10.1371/journal.pone.0109089

[14] E. A. Gültürk, M. Güden, and A. Taşdemirci, Calcined and natural frustules filled epoxy matrices: The effect of volume fraction on the tensile and compression behavior, Composites Part B: Engineering, vol. 44, pp.491-500, 2013/01/01/ (2013).

DOI: 10.1016/j.compositesb.2012.03.022

[15] D. Zeren and M. Güden, The increased compression strength of an epoxy resin with the addition of heat-treated natural nano-structured diatom frustules, Journal of Composite Materials, vol. 51, pp.1681-1691, (2017).

DOI: 10.1177/0021998316669855

[16] K. Kesici. İ. Tüney. D. Zeren. M. Güden. A. Sukatar, Morphological and molecular identifcation of pennate diatoms isolated from Urla, İzmir, coast of the Aegean Sea, Turkish Journal of Biology, vol. 37, pp.530-537, (2013).

DOI: 10.3906/biy-1205-40
