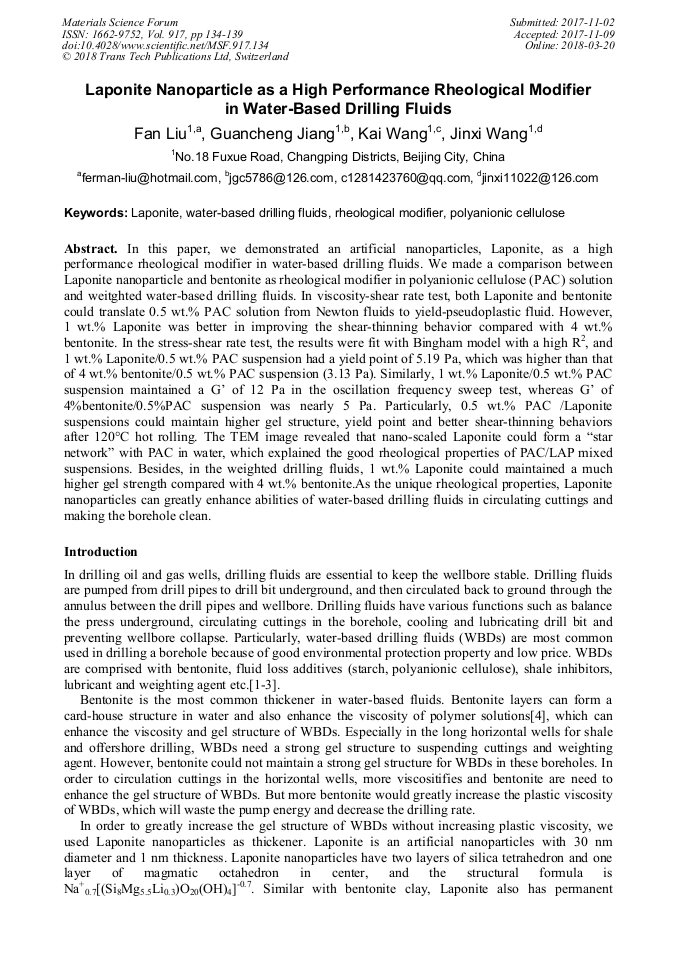

Laponite Nanoparticle as a High Performance Rheological Modifier in Water-Based Drilling Fluids

Abstract:

In this paper, we demonstrated an artificial nanoparticles, Laponite, as a high performance rheological modifier in water-based drilling fluids. We made a comparison between Laponite nanoparticle and bentonite as rheological modifier in polyanionic cellulose (PAC) solution and weitghted water-based drilling fluids. In viscosity-shear rate test, both Laponite and bentonite could translate 0.5 wt.% PAC solution from Newton fluids to yield-pseudoplastic fluid. However, 1 wt.% Laponite was better in improving the shear-thinning behavior compared with 4 wt.% bentonite. In the stress-shear rate test, the results were fit with Bingham model with a high R², and 1 wt.% Laponite/0.5 wt.% PAC suspension had a yield point of 5.19 Pa, which was higher than that of 4 wt.% bentonite/0.5 wt.% PAC suspension (3.13 Pa). Similarly, 1 wt.% Laponite/0.5 wt.% PAC suspension maintained a G’ of 12 Pa in the oscillation frequency sweep test, whereas G’ of 4%bentonite/0.5%PAC suspension was nearly 5 Pa. Particularly, 0.5 wt.% PAC /Laponite suspensions could maintain higher gel structure, yield point and better shear-thinning behaviors after 120°C hot rolling. The TEM image revealed that nanoscaled Laponite could form a “star network” with PAC in water, which explained the good rheological properties of PAC/LAP mixed suspensions. Besides, in the weighted drilling fluids, 1 wt.% Laponite could maintained a much higher gel strength compared with 4 wt.% bentonite.As the unique rheological properties, Laponite nanoparticles can greatly enhance abilities of water-based drilling fluids in circulating cuttings and making the borehole clean.

• Periodical: Materials Science Forum (Volume 917)
• Pages: 134-139
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.917.134
• Online since: March 2018
• Authors: Fan Liu, Guang Cheng Jiang, Kai Wang, Jin Xi Wang
• Keywords: Laponite, Polyanionic Cellulose, Rheological Modifier, Water-Based Drilling Fluids

References

[1] Liu F, Jiang G, Peng S, He Y, Wang J. Amphoteric Polymer as an Anti-calcium Contamination Fluid-Loss Additive in Water-Based Drilling Fluids. Energy & Fuels. 2016; 30: 7221-8.

DOI: 10.1021/acs.energyfuels.6b01567

[2] Li MC, Wu Q, Song K, Lee S, Jin C, Ren S, et al. Soy Protein Isolate As Fluid Loss Additive in Bentonite-Water-Based Drilling Fluids. ACS applied materials & interfaces. 2015; 7: 24799-809.

DOI: 10.1021/acsami.5b07883

[3] Li MC, Wu Q, Song K, Qing Y, Wu Y. Cellulose nanoparticles as modifiers for rheology and fluid loss in bentonite water-based fluids. ACS applied materials & interfaces. 2015; 7: 5006-16.

DOI: 10.1021/acsami.5b00498

[4] Luckham PF, Rossi S. The colloidal and rheological properties of bentonite suspensions. Advances in Colloid and Interface Science. 1999; 82: 43-92.

DOI: 10.1016/s0001-8686(99)00005-6

[5] Miyoshi E. Rheological and thermal studies of gel-sol transition in gellan gum aqueous solutions. Carbohydrate Polymers. 1996; 30: 109-19.

DOI: 10.1016/s0144-8617(96)00093-8

[6] Ruzicka B, Zaccarelli E. A fresh look at the Laponite phase diagram. Soft Matter. 2011; 7: 1268.

DOI: 10.1039/c0sm00590h

[7] Li C, Mu C, Lin W, Ngai T. Gelatin Effects on the Physicochemical and Hemocompatible Properties of Gelatin/PAAm/Laponite Nanocomposite Hydrogels. ACS applied materials & interfaces. 2015; 7: 18732-41.

DOI: 10.1021/acsami.5b05287

[8] Lian C, Lin Z, Wang T, Sun W, Liu X, Tong Z. Self-Reinforcement of PNIPAm–Laponite Nanocomposite Gels Investigated by Atom Force Microscopy Nanoindentation. Macromolecules. 2012; 45: 7220-7.

DOI: 10.1021/ma300874n

[9] Wu C-J, Gaharwar AK, Chan BK, Schmidt G. Mechanically Tough Pluronic F127/Laponite Nanocomposite Hydrogels from Covalently and Physically Cross-Linked Networks. Macromolecules. 2011; 44: 8215-24.

DOI: 10.1021/ma200562k
