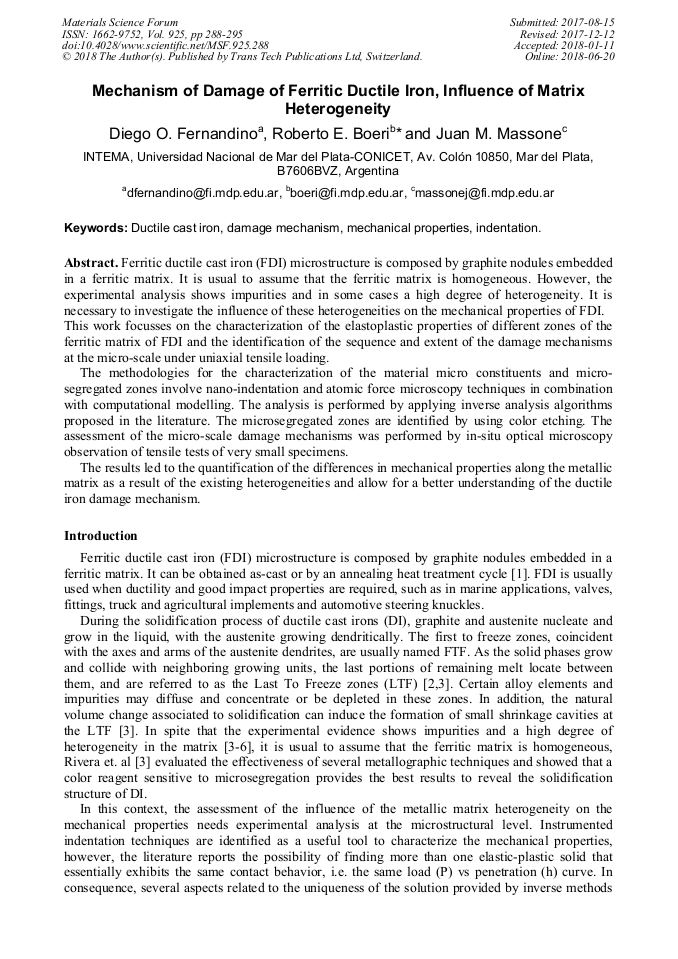

Mechanism of Damage of Ferritic Ductile Iron, Influence of Matrix Heterogeneity

Abstract:

Ferritic ductile cast iron (FDI) microstructure is composed by graphite nodules embedded in a ferritic matrix. It is usual to assume that the ferritic matrix is homogeneous. However, the experimental analysis shows impurities and in some cases a high degree of heterogeneity. It is necessary to investigate the influence of these heterogeneities on the mechanical properties of FDI.This work focusses on the characterization of the elastoplastic properties of different zones of the ferritic matrix of FDI and the identification of the sequence and extent of the damage mechanisms at the micro-scale under uniaxial tensile loading.The methodologies for the characterization of the material micro constituents and micro-segregated zones involve nano-indentation and atomic force microscopy techniques in combination with computational modelling. The analysis is performed by applying inverse analysis algorithms proposed in the literature. The microsegregated zones are identified by using color etching. The assessment of the micro-scale damage mechanisms was performed by in-situ optical microscopy observation of tensile tests of very small specimens.The results led to the quantification of the differences in mechanical properties along the metallic matrix as a result of the existing heterogeneities and allow for a better understanding of the ductile iron damage mechanism.

• Periodical: Materials Science Forum (Volume 925)
• Pages: 288-295
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.925.288
• Online since: June 2018
• Authors: Diego O. Fernandino, Roberto Enrique Boeri*, Juan M. Massone
• Keywords: Damage Mechanism, Ductile Cast Iron, Indentation, Mechanical Properties

References

[1] Ductile Iron Data for Design Engineers (1990). Cap. II Introduction.

[2] G. Rivera, R. Boeri, J. Sikora, Revealing and characterizing solidification structure of ductile cast iron. Material Science and technology. 18 (2002) 691-698.

DOI: 10.1179/026708302225003668

[3] G. Rivera, R. Boeri, J. Sikora, Revealing the solidification structure of nodular iron. Int J Cast Metals Res. 8, 1 (1995) 1–5.

DOI: 10.1080/09534962.1995.11819186

[4] N. Tenaglia, R. Boeri, G. Rivera, J. Massone, Study of shrinkage porosity in spheroidal graphite cast iron. Int J Cast Met Res. 29, 1–2, (2016) 112–120.

DOI: 10.1080/13640461.2015.1106783

[5] R. Boeri, F. Weinberg, Microsegregation of alloying elements in cast iron. Cast metals, (1993) 153-158.

DOI: 10.1080/09534962.1993.11819142

[6] D.O. Fernandino, A.P. Cisilino, R.E. Boeri, Determination of effective elastic properties of ferritic ductile cast iron by means computational homogenization and microindentation test. Mech Mater. 83 (2015) 110–121.

DOI: 10.1016/j.mechmat.2015.01.002

[7] M. Dao, N. Chollacoop, K.J. Vanvliet, T. Venkatesh, Computational modeling of the forward and reverse problems in instrumented sharp indentation. Acta mater. 49 (2001) 3899–3918.

DOI: 10.1016/s1359-6454(01)00295-6

[8] M. Mata, J Alcalá, Mechanical property evaluation through sharp indentations in elastoplastic and fully plastic contact regimes. J Mater Res. 17 (2003) 1705–1709.

DOI: 10.1557/jmr.2003.0234

[9] O. Casals, J. Alcalá, The duality in mechanical property extractions from Vickers and Berkovich instrumented indentation experiments. Acta Mater. 53(2005) 3545–3561.

DOI: 10.1016/j.actamat.2005.03.051

[10] H.Z. Lan, T.A. Venkatesh, On the uniqueness and sensitivity issues in determining the elastic and plastic properties of power-law hardening materials through sharp and spherical indentation. Philos. Mag. A. 87 (2007a) 4671–4729.

DOI: 10.1080/14786430701589343

[11] H.Z. Lan, T.A. Venkatesh, On the sensitivity characteristics in the determination of the elastic and plastic properties of materials through multiple indentation. J. Mater. Res. 22 (2007b) 1043–1063.

DOI: 10.1557/jmr.2007.0123

[12] L. Liu, N. Ogasawara, N. Chiba, X. Chen, Can indentation technique measure unique elastoplastic properties? J. Mater. Res. 24 (2009) 784-800.

DOI: 10.1557/jmr.2009.0100

[13] W.C. Oliver, G.M. Pharr, An improved technique for determining hardness and elastic modulus using load and displacement sensing indentation experiments. J Mater Res. 7, 6 (1992) 1564–1583.

DOI: 10.1557/jmr.1992.1564

[14] M. Mata, J Alcalá , Mechanical property evaluation through sharp indentations in elastoplastic and fully plastic contact regimes. J Mater Res. 17 (2003) 1705–1709.

DOI: 10.1557/jmr.2003.0234

[15] D.O. Fernandino, Fracture of ductile cast iron. Experimental analysis and multi-scale modelling. PhD thesis, National University of Mar del Plata, March 2015. Mar del Plata, Buenos Aires, Argentina.

DOI: 10.25085/rsea.780101

[16] V. Di Cocco, F. Iacoviello, A. Rossi, D. Iacoviello, Macro and microscopical approach to the damaging micromechanisms analysis in a ferritic ductile cast iron. Theor Appl Fract Mech. 69 (2014) 26–33.

DOI: 10.1016/j.tafmec.2013.11.003

[17] K.A. Kasvayee, K. Salomonsson , E. Ghassemali, A.E.W. Jarfors, Microstructural strain distribution in ductile iron; comparison between finite element simulation and digital image correlation measurements. Mater Sci Eng A. 655 (2016) 27–35.

DOI: 10.1016/j.msea.2015.12.056
