Development of an Optimised Shielding Strategy for Laser Beam Welding of Ti6Al2Sn4Zr2Mo

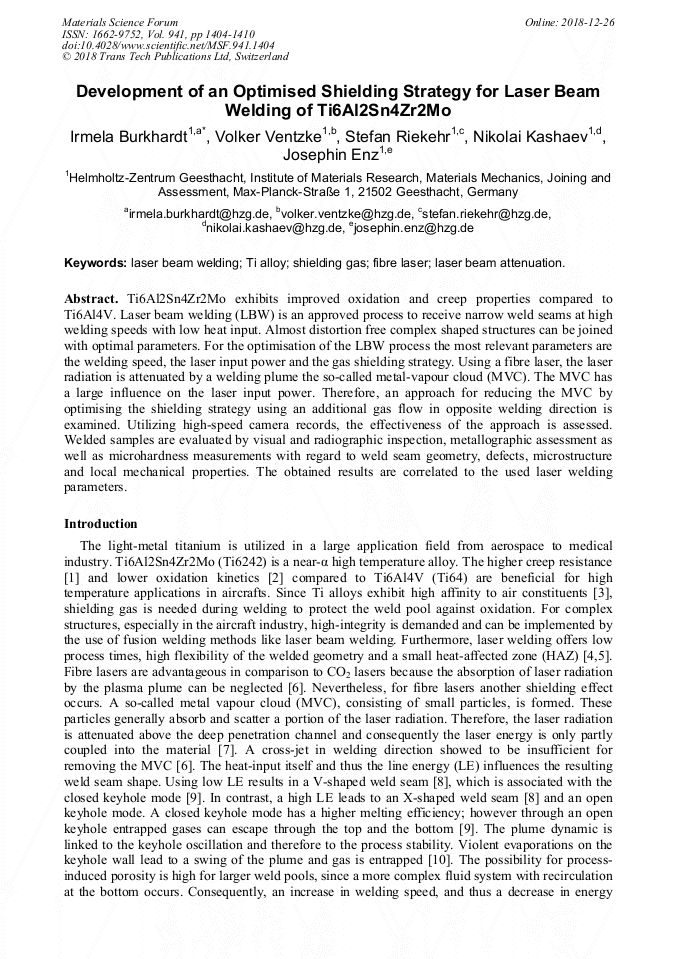

Article Preview

Abstract:

Ti6Al2Sn4Zr2Mo exhibits improved oxidation and creep properties compared to Ti6Al4V. Laser beam welding (LBW) is an approved process to receive narrow weld seams at high welding speeds with low heat input. Almost distortion free complex shaped structures can be joined with optimal parameters. For the optimisation of the LBW process the most relevant parameters are the welding speed, the laser input power and the gas shielding strategy. Using a fibre laser, the laser radiation is attenuated by a welding plume the so-called metal-vapour cloud (MVC). The MVC has a large influence on the laser input power. Therefore, an approach for reducing the MVC by optimising the shielding strategy using an additional gas flow in opposite welding direction is examined. Utilizing high-speed camera records, the effectiveness of the approach is assessed. Welded samples are evaluated by visual and radiographic inspection, metallographic assessment as well as microhardness measurements with regard to weld seam geometry, defects, microstructure and local mechanical properties. The obtained results are correlated to the used laser welding parameters.

You might also be interested in these eBooks

THERMEC 2018

Info:

Periodical:

Materials Science Forum (Volume 941)

Pages:

1404-1410

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.941.1404

Citation:

Cite this paper

Online since:

December 2018

Authors:

Irmela Burkhardt*, Volker Ventzke, Stefan Riekehr, Nikolai Kashaev, Josephin Enz

Keywords:

Fibre Laser, Laser Beam Attenuation, Laser Beam Welding (LBW), Shielding Gas, Titanium Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2018 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] E. G. Welsch, R.Boyer, Materials Properties Handbook: Titanium Alloys, ASM International, Materials Park, (1998).

[2] R. Gaddam, B. Sefer, R. Pederson, M.L. Antti, Oxidation and alpha-case formation in Ti-6Al-2Sn-4Zr-2Mo alloy, Mater. Charact. 99 (2015) 166–174.

DOI: 10.1016/j.matchar.2014.11.023

[3] M. Peters, C. Leyens, Titan und Titanlegierungen, WILEY-VCH, Weinheim, (2002).

[4] C. Dawes, Laser welding, a practical guide, Abington Publishing, Cambridge, (1992).

[5] E. Akman, A. Demir, T. Canel, T. Sinmazçelik, Laser welding of Ti6Al4V titanium alloys, J. Mater. Process. Technol. 209 (2009) 3705–3713.

DOI: 10.1016/j.jmatprotec.2008.08.026

[6] S.A. Uspenskiy, V.N. Petrovskiy, D.P. Bykovskiy, V.D. Mironov, N.M. Prokopova, E. V Tret'yakov, Spectral diagnostics of a vapor-plasma plume produced during welding titanium with a high-power ytterbium fiber laser, J. Phys. Conf. Ser. 594 (2015) 12033.

DOI: 10.1088/1742-6596/594/1/012033

[7] P.Y. Shcheglov, S.A. Uspenskiy, A. V Gumenyuk, V.N. Petrovskiy, M. Rethmeier, V.M. Yermachenko, Plume attenuation of laser radiation during high power fiber laser welding, Laser Phys. Lett. 8 (2011) 475–480. doi:DOI 10.1002/lapl.201110010.

DOI: 10.1002/lapl.201110010

[8] G. Casalino, M. Mortello, S.L. Campanelli, Ytterbium fiber laser welding of Ti6Al4V alloy, J. Manuf. Process. 20 (2015) 250–256.

DOI: 10.1016/j.jmapro.2015.07.003

[9] M.Y. Krasnoperov, R.R.G.M. Pieters, I.M. Richardson, Weld pool geometry during keyhole laser welding of thin steel sheets, Sci. Technol. Weld. Join. 9 (2004) 501–506.

DOI: 10.1179/136217104225021733

[10] S. Pang, X. Chen, X. Shao, S. Gong, J. Xiao, Dynamics of vapor plume in transient keyhole during laser welding of stainless steel: Local evaporation, plume swing and gas entrapment into porosity, Opt. Lasers Eng. 82 (2016) 28–40.

DOI: 10.1016/j.optlaseng.2016.01.019

[11] C. Panwisawas, B. Perumal, R.M. Ward, N. Turner, R.P. Turner, J.W. Brooks, H.C. Basoalto, Keyhole formation and thermal fluid flow-induced porosity during laser fusion welding in titanium alloys: Experimental and modelling, Acta Mater. 126 (2017) 251–263.

DOI: 10.1016/j.actamat.2016.12.062

[12] F. Fomin, N. Kashaev, Influence of Porosity on the High Cycle Fatigue Behaviour of Laser Beam Welded Ti-6Al-4V Butt Joints, Procedia Struct. Integr. 7 (2017) 415–422.

DOI: 10.1016/j.prostr.2017.11.107

[13] H.L. Wei, J.W. Elmer, T. DebRoy, Crystal growth during keyhole mode laser welding, Acta Mater. 133 (2017) 10–20.

DOI: 10.1016/j.actamat.2017.04.074

[14] S.R.K. Rao, G.M. Reddy, M. Kamaraj, K.P. Rao, Grain refinement through arc manipulation techniques in Al-Cu alloy GTA welds, Mater. Sci. Eng. A. 404 (2005) 227–234.

DOI: 10.1016/j.msea.2005.05.080

[15] S. Kou, Welding Metallurgy, second ed., Hoboken, NJ, (2003).

[16] O. Jin, S. Mall, Effects of microstructure on short crack growth behavior of Ti-6Al-2Sn-4Zr-2Mo-0.1Si alloy, Mater. Sci. Eng. A. 359 (2003) 356–367.

DOI: 10.1016/s0921-5093(03)00377-0
