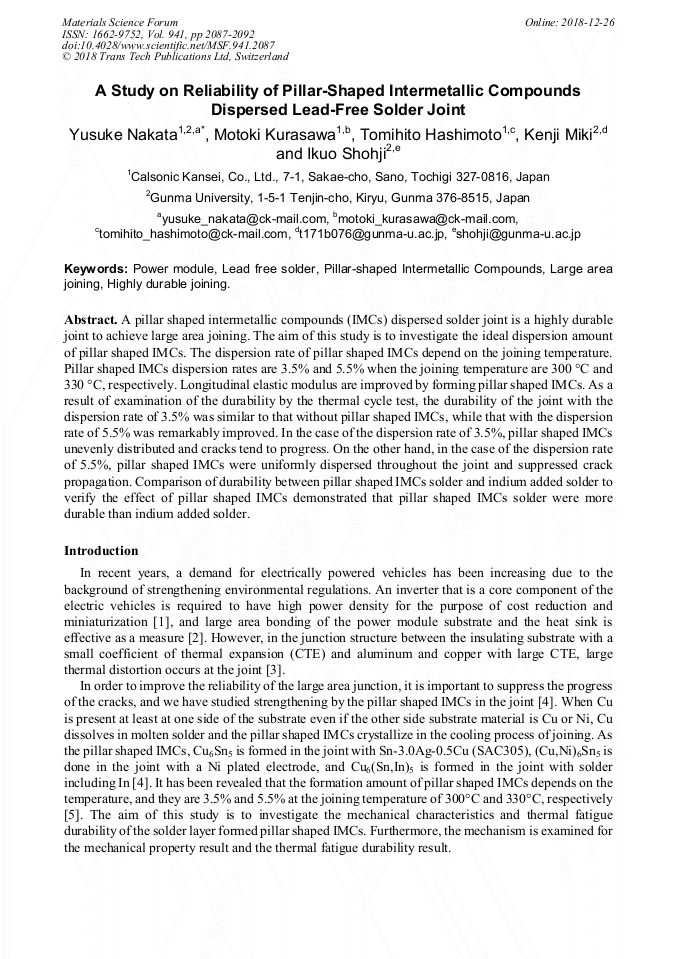

A Study on Reliability of Pillar-Shaped Intermetallic Compounds Dispersed Lead-Free Solder Joint

Abstract:

A pillar shaped intermetallic compounds (IMCs) dispersed solder joint is a highly durable joint to achieve large area joining. The aim of this study is to investigate the ideal dispersion amount of pillar shaped IMCs. The dispersion rate of pillar shaped IMCs depend on the joining temperature. Pillar shaped IMCs dispersion rates are 3.5% and 5.5% when the joining temperature are 300 °C and 330 °C, respectively. Longitudinal elastic modulus are improved by forming pillar shaped IMCs. As a result of examination of the durability by the thermal cycle test, the durability of the joint with the dispersion rate of 3.5% was similar to that without pillar shaped IMCs, while that with the dispersion rate of 5.5% was remarkably improved. In the case of the dispersion rate of 3.5%, pillar shaped IMCs unevenly distributed and cracks tend to progress. On the other hand, in the case of the dispersion rate of 5.5%, pillar shaped IMCs were uniformly dispersed throughout the joint and suppressed crack propagation. Comparison of durability between pillar shaped IMCs solder and indium added solder to verify the effect of pillar shaped IMCs demonstrated that pillar shaped IMCs solder were more durable than indium added solder.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 2087-2092
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.2087
• Online since: December 2018
• Authors: Yusuke Nakata*, Motoki Kurasawa, Tomihito Hashimoto, Kenji Miki, Ikuo Shohji
• Keywords: Highly Durable Joining, Large Area Joining, Lead Free Solder, Pillar-Shaped Intermetallic Compounds, Power Module

References

[1] Chau, K. T. and Chan, C. C., Emerging energy-efficient technologies for hybrid electric vehicles, Proceeding of the IEEE 95 (2007) 821-835.

DOI: 10.1109/jproc.2006.890114

[2] T. Kimura, R. Saito, K. Kubo, K. Nakatsu, H. Ishikawa and K. Sasaki, High-power-density inverter technology for hybrid and electric vehicle applications, Hitachi Review 63 (2014) 96-102.

[3] H. Arai, K. Higuchi and T. Koyama, 3rd-generaten direct liquid cooling power module for automotive applications, Fuji Electric Review 61 (2015) 252-257.

[4] Y. Hayashi, I. Shohji, Y. Nakata and T. Hashimoto, Effect of joining time and joining temperature on lead-free solder joints dispersed pillar shaped IMCs, Procedia Engineering 184 (2017) 214-222.

DOI: 10.1016/j.proeng.2017.04.088

[5] Y. Nakata, T. Hashimoto, M. Kurasawa, Y. Hayashi and I. Shohji, Formation mechanism of pillar-shaped intermetallic compounds dispersed lead-free solder joint, IOP Conf. Series: Materials Science and Engineering 257 (2017) 012014.

DOI: 10.1088/1757-899x/257/1/012014
