Compositional Optimization of In718 Superalloy Powder for Additive Manufacturing

Abstract:

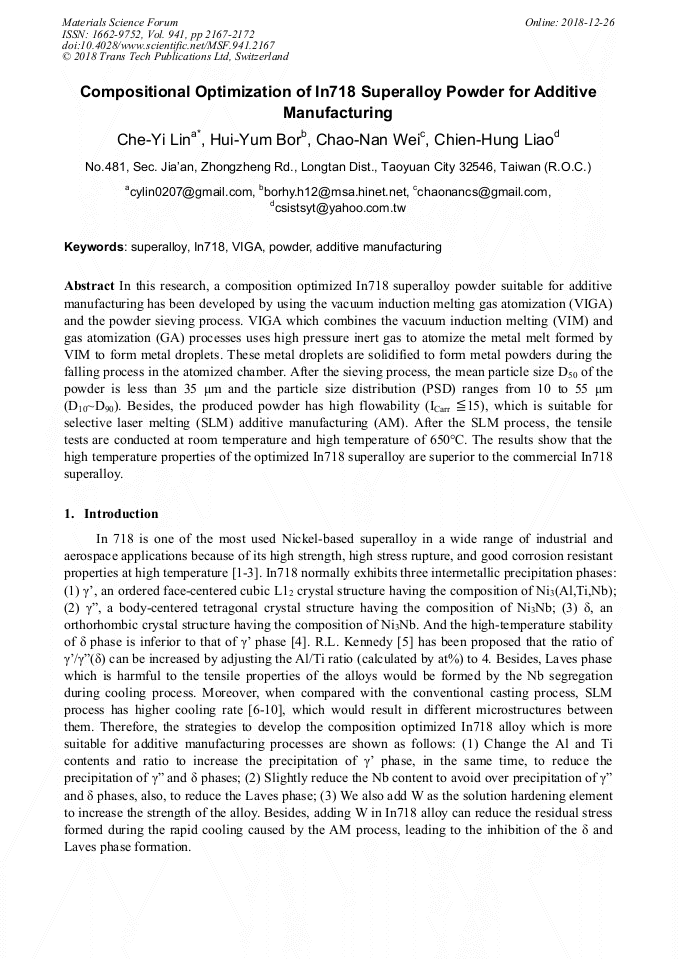

In this research, a composition optimized In718 superalloy powder suitable for additive manufacturing has been developed by using the vacuum induction melting gas atomization (VIGA) and the powder sieving process. VIGA which combines the vacuum induction melting (VIM) and gas atomization (GA) processes uses high pressure inert gas to atomize the metal melt formed by VIM to form metal droplets. These metal droplets are solidified to form metal powders during the falling process in the atomized chamber. After the sieving process, the mean particle size D₅₀ of the powder is less than 35 μm and the particle size distribution (PSD) ranges from 10 to 55 μm (D₁₀~D₉₀). Besides, the produced powder has high flowability (I_Carr ≦15), which is suitable for selective laser melting (SLM) additive manufacturing (AM). After the SLM process, the tensile tests are conducted at room temperature and high temperature of 650°C. The results show that the high temperature properties of the optimized In718 superalloy are superior to the commercial In718 superalloy.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 2167-2172
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.2167
• Online since: December 2018
• Authors: Che Yi Lin*, Hui Yum Bor, Chao Nan Wei, Chien Hung Liao
• Keywords: Additive Manufacturing (AM), Inconel 718, Powder, Superalloy, VIGA

References

[1] G. Çam, M. Koçak, Progress in joining of advanced materials, International Materials Reviews 43 (1998) 1-44.

DOI: 10.1179/imr.1998.43.1.1

[2] H.Y. Zhang, S.H. Zhang, M. Cheng, Z.X. Li, Deformation characteristics of δ phase in the delta-processed Inconel 718 alloy, Materials Characterization 61 (2010) 49-53.

DOI: 10.1016/j.matchar.2009.10.003

[3] J. Warren, D.Y. Wei, The cyclic fatigue behavior of direct age In718 at 149, 315, 454 and 538℃, Materials Science and Engineering A 428 (2006) 106-115.

DOI: 10.1016/j.msea.2006.04.091

[4] S.H. Chang, In situ TEM observation of γ', γ" and δ precipitations on Inconel 718 superalloy through HIP treatment, Journal of Alloys and Compounds 486 (2009) 716-721.

DOI: 10.1016/j.jallcom.2009.07.046

[5] R.L. Kennedy, Allvac 718plus, superalloy for the next forty years, Superalloys 718, 625, 706 and Derivatives 2005 TMS (2005) 1-14.

DOI: 10.7449/2005/superalloys_2005_1_14

[6] X.M. Zhao, J. Chen, X. Lin, W.D. Huang, Study on microstructure and mechanical properties of laser rapid forming Inconel 718, Materials Science and Engineering A 478 (2008) 119-124.

DOI: 10.1016/j.msea.2007.05.079

[7] K.N. Amato, S.M. Gaytan, L.E. Murr, E. Martinez, P.W. Shindo, J. Hernandez, S. Collins, F. Medina, Microstructures and mechanical behavior of Inconel 718 fabricated by selective laser melting, Acta Materialia 60 (2012) 2229-2239.

DOI: 10.1016/j.actamat.2011.12.032

[8] W. Tillmann, C. Schaak, J. Nellesen, M. Schaper, M.E. Aydinöz, K.-P. Hoyer, Hot isostatic pressing of IN718 components manufactured by selective laser melting, Additive Manufacturing 13 (2017) 93-102.

DOI: 10.1016/j.addma.2016.11.006

[9] L. Huynh, J. Rotella, M.D. Sangid, Fatigue behavior of IN718 microtrusses produced via additive manufacturing, Materials and Design 105 (2016) 278-289.

DOI: 10.1016/j.matdes.2016.05.032

[10] H. Xiao, S.M. Li, W.J. Xiao, Y.Q. Li, L.M. cha, J. Mazumder, L.J. Song, Effects of laser modes on Nb segregation and Laves phase formation during laser additive manufacturing of Nickel-based superalloy, Materials Letters 188 (2017) 260-262.

DOI: 10.1016/j.matlet.2016.10.118

[11] D.Y. Zhang, W. Niu, X.Y. Cao, Z. Liu, Effect of standard heat treatment on the microstructure and mechanical properties of selective laser melting manufactured Inconel 718 superalloy, Materials Science and Engineering A 644 (2015) 32-40.

DOI: 10.1016/j.msea.2015.06.021
