Microstructures and Mechanical Properties of Welded Joints of Several High Tensile Strength Steel

Abstract:

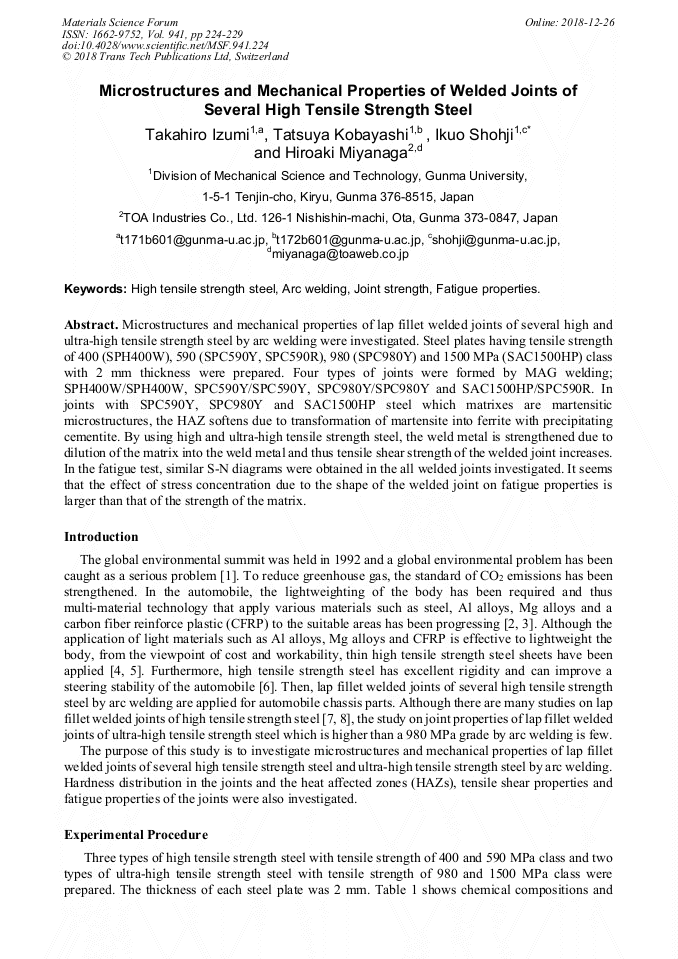

Microstructures and mechanical properties of lap fillet welded joints of several high and ultra-high tensile strength steel by arc welding were investigated. Steel plates having tensile strength of 400 (SPH400W), 590 (SPC590Y, SPC590R), 980 (SPC980Y) and 1500 MPa (SAC1500HP) class with 2 mm thickness were prepared. Four types of joints were formed by MAG welding; SPH400W/SPH400W, SPC590Y/SPC590Y, SPC980Y/SPC980Y and SAC1500HP/SPC590R. In joints with SPC590Y, SPC980Y and SAC1500HP steel which matrixes are martensitic microstructures, the HAZ softens due to transformation of martensite into ferrite with precipitating cementite. By using high and ultra-high tensile strength steel, the weld metal is strengthened due to dilution of the matrix into the weld metal and thus tensile shear strength of the welded joint increases. In the fatigue test, similar S-N diagrams were obtained in the all welded joints investigated. It seems that the effect of stress concentration due to the shape of the welded joint on fatigue properties is larger than that of the strength of the matrix.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 224-229
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.224
• Online since: December 2018
• Authors: Takahiro Izumi*, Tatsuya Kobayashi, Ikuo Shohji, Hiroaki Miyanaga
• Keywords: Arc Welding, Fatigue Properties, High Tensile Strength Steel, Joint Strength

References

[1] J. Byrne, L. Glover, A common future or towards a future or towards a future commons: Globalization and sustainable development since UNCED, International Review for Environmental Strategies 3 (2000) 5-25.

[2] W. Tao, Z. Liu, P. Zhu, C. Zhu, W. Chen, Multi-scale design of three dimensional woven composite automobile fender using modified particle swarm optimization algorithm, Composite Structures 181 (2017) 73-83.

DOI: 10.1016/j.compstruct.2017.08.065

[3] S. Wenlong, C. Xiaokai, W. Lu, Analysis of energy saving and emission reduction of vehicles using light weight materials, Energy Procedia 88 (2016) 889-893.

DOI: 10.1016/j.egypro.2016.06.106

[4] K. Mori, P.F. Bariani, B.-A. Behrens, A. Brosius, S. Bruschi, T. Maeno, M. Merklein, J. Yanagimoto, Hot stamping of ultra-high strength steel parts, CIRP Annals 66 (2017) 755-777.

DOI: 10.1016/j.cirp.2017.05.007

[5] G. Marulo, J. Baumgartner, F. Frendo, Fatigue strength assessment of laser welded thin-walled joints made of mild and high strength steel, International Journal of Fatigue 96 (2017) 142-151.

DOI: 10.1016/j.ijfatigue.2016.11.016

[6] S. Hashimoto, Effect of Nb on hot rolled high strength steel sheets produced by thin slab casting and hot direct rolling process, ISIJ International 43 (2003) 1658-1663.

DOI: 10.2355/isijinternational.43.1658

[7] I. Hwang, D.-Y. Kim, G. Jeong, M. Kang, D. Kim, Y.-M. Kim, Effect of weld bead shape on the fatigue behavior of GMAW lap fillet joint in GA 590 MPa steel sheets, Metals 7 (2017) 1-12.

DOI: 10.3390/met7100399

[8] C. M. Amodeo, W.-J. Lai, J. Lee, J. Pan, Failure modes of gas metal arc welds in lap-shear specimens of high strength low alloy (HSLA) steel, Engineering Fracture Mechanics 131 (2014) 74-99.

DOI: 10.1016/j.engfracmech.2014.07.009

[9] M. Leitner, Influence of effective stress ratio on the fatigue strength of welded and HFMI-treated high-strength steel joints, International Journal of Fatigue 102 (2017) 158-170.

DOI: 10.1016/j.ijfatigue.2017.03.008

[10] A. Akyel, M.H. Kolstein, F.S.K. Bijlaard, Fatigue strength of repaired welded connections made of very high strength steel, Engineering Structures 161 (2018) 28-40.

DOI: 10.1016/j.engstruct.2018.01.023
