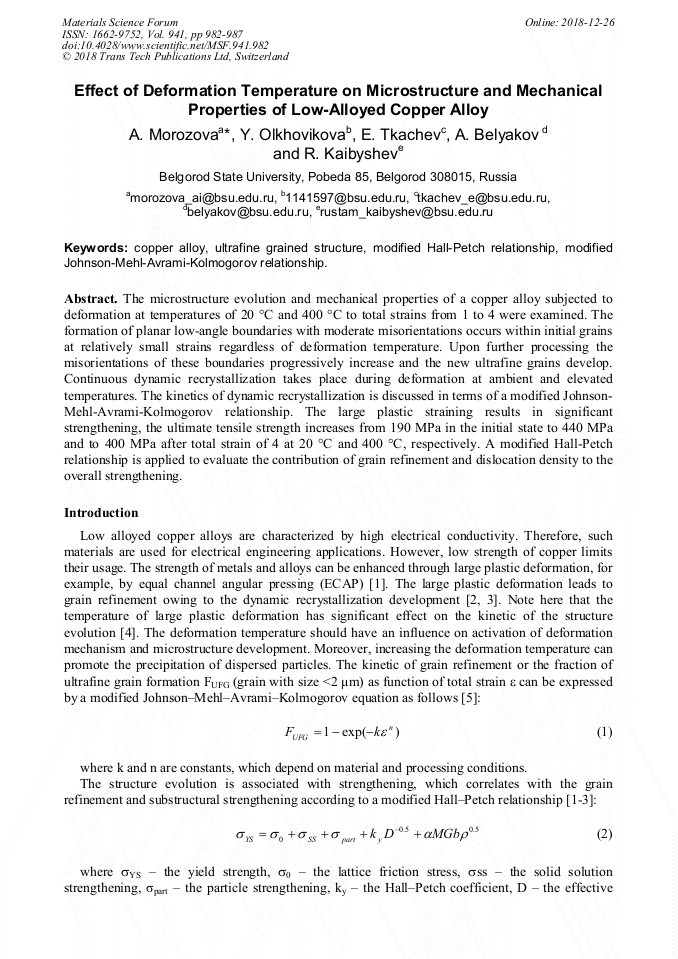

Effect of Deformation Temperature on Microstructure and Mechanical Properties of Low-Alloyed Copper Alloy

Abstract:

The microstructure evolution and mechanical properties of a copper alloy subjected to deformation at temperatures of 20 °C and 400 °C to total strains from 1 to 4 were examined. The formation of planar low-angle boundaries with moderate misorientations occurs within initial grains at relatively small strains regardless of deformation temperature. Upon further processing the misorientations of these boundaries progressively increase and the new ultrafine grains develop. Continuous dynamic recrystallization takes place during deformation at ambient and elevated temperatures. The kinetics of dynamic recrystallization is discussed in terms of a modified Johnson-Mehl-Avrami-Kolmogorov relationship. The large plastic straining results in significant strengthening, the ultimate tensile strength increases from 190 MPa in the initial state to 440 MPa and to 400 MPa after total strain of 4 at 20 °C and 400 °C, respectively. A modified Hall-Petch relationship is applied to evaluate the contribution of grain refinement and dislocation density to the overall strengthening.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 982-987
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.982
• Online since: December 2018
• Authors: A. Morozova*, Yana Olkhovikova, Evgeniy Tkachev, Andrey Belyakov, Rustam Kaibyshev
• Keywords: Copper Alloy, Modified Hall-Petch Relationship, Modified Johnson-Mehl-Avrami-Kolmogorov Relationship, Ultrafine Grained Structure

References

[1] M. Yu. Murashkin, I. Sabirov, X. Sauvage, R. Z. Valiev, Nanostructured Al and Cu alloys with superior strength and electrical conductivity, J. Mater. Sci. 51 (2016) 33–49.

DOI: 10.1007/s10853-015-9354-9

[2] A. Morozova, A. Belyakov, R. Kaibyshev, Effect of Deformation Structure on Strength of a Low Alloyed Cu-Cr-Zr Alloy. Mater. Sci. Forum 879 (2017) 1332-1337.

DOI: 10.4028/www.scientific.net/msf.879.1332

[3] A.P. Zhilyaev, I. Shakhova, A. Morozova, A. Belyakov, R. Kaibyshev, Grain refinement kinetics and strengthening mechanisms in Cu–0.3 Cr–0.5 Zr alloy subjected to intense plastic deformation. Mater. Sci. Eng. A 654 (2016) 131–142.

DOI: 10.1016/j.msea.2015.12.038

[4] A. Belyakov, K. Tsuzaki, Y. Kimura, Regularities of deformation microstructures in ferritic stainless steels during large strain cold working, ISIJ 48 (2008) 1071-1079.

DOI: 10.2355/isijinternational.48.1071

[5] A. Morozova, E. Borodin, V. Bratov, S. Zherebtsov, A. Belyakov, R. Kaibyshev, Grain Refinement Kinetics in a Low Alloyed Cu–Cr–Zr Alloy Subjected to Large Strain Deformation. Materials 10(12) (2017) 1394.

DOI: 10.3390/ma10121394
