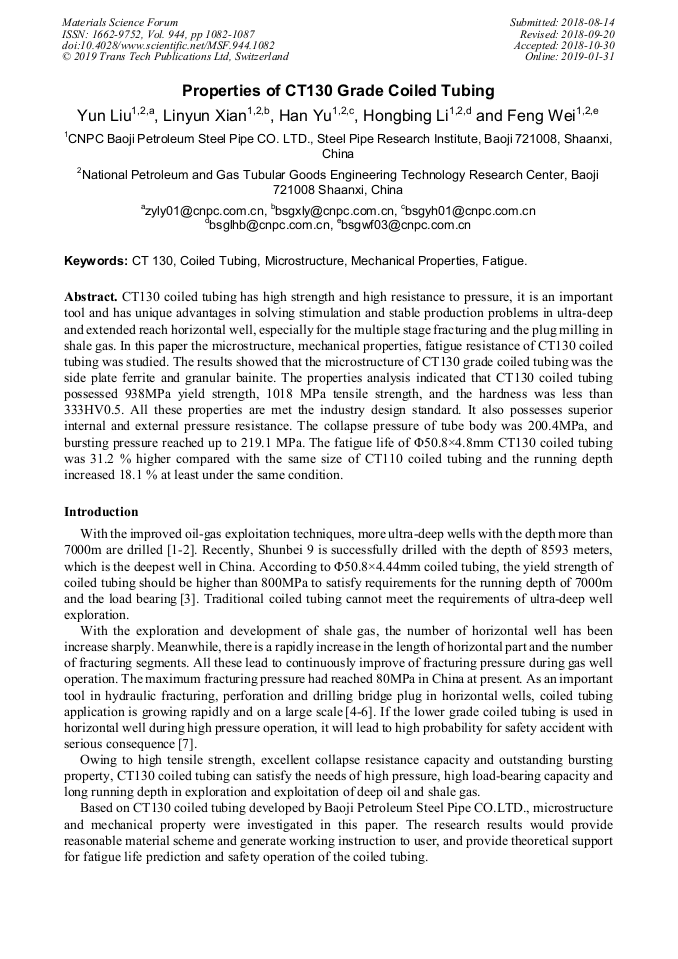

Properties of CT130 Grade Coiled Tubing

Abstract:

CT130 coiled tubing has high strength and high resistance to pressure, it is an important tool and has unique advantages in solving stimulation and stable production problems in ultra-deep and extended reach horizontal well, especially for the multiple stage fracturing and the plug milling in shale gas. In this paper the microstructure, mechanical properties, fatigue resistance of CT130 coiled tubing is studied. The results show that the microstructure of CT130 grade coiled tubing is the side plate ferrite and granular bainate. The properties analysis indicates that CT130 coiled tubing possesses 938MPa yield strength, 1018 MPa tensile strength, and the hardness is less than 333HV0.5，all these properties are met the industry design standard. It also possess superior internal and external pressure resistance. the collapse pressure of tube body is 200.4MPa，and bursting pressure reaches up to 219.1MPa. The fatigue life of Φ50.8×4.8mm CT130 coiled tubing is 31.2 percent higher compared with the same size of CT110 coiled tubing and the running depth increased 18.1 percent at least under the same condition.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 1082-1087
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.1082
• Online since: January 2019
• Authors: Yun Liu*, Lin Yun Xian, Han Yu, Hong Bin Li, Feng Wei
• Keywords: Coiled Tubing, CT 130, Fatigue, Mechanical Properties, Microstructure

References

[1] S.B. Zhang, G. Yang. Application status and prospect analysis of coiled tubing technology in Tarim oil field[J]. Science and Technology Innovation Herald, 2015, (16): 100-101.

[2] H.G. Wang. Y.H. Ge, L. Shi. Technologies in deep and ultra-deep well drilling: Present status, challenges and future trend in the 13th Five-Year Plan period (2016-2020) Natural Gas Industry, 2017, 37(4):1-8.

DOI: 10.1016/j.ngib.2017.09.001

[3] Andrew S. Zheng, Henrik A. Larsen. High-Pressure coiled tubing string design [C]. SPE 54480.

[4] C.N. Zou, D.Z. Dong, Y.M. Wang, X.C. Li, J.L. Huang, H.Y. Wang. Shale gas in China: characteristics, challenges and prospects (II) [J]. Petroleum Exploration and Development. 2016, 43(2): 166-178.

DOI: 10.1016/s1876-3804(16)30022-2

[5] G.R. Lai, An Chunqing, Fan Linpei.Analysis and application of coiled tubing bridge plug drilling and grinding technology for horizontal wells [J].Technology Supervision in Petroleum Industry. 2016, 32(1): 54-57.

[6] H.J. Pu, Q. Wu, Y.H. Yang, J. He. Application and practice of 8000m coiled tubing high-sulfur gas wells with ultra-deep[J]. Drilling & Production Technology. 2015, 35(2): 111-113.

[7] X.P. Lv, C.F. Zhou, H. Chen, J.F. Gou, D.D. Xiao. Coiled Tubing Technology Prospect in Exploration and Development of Shale Gas [7]. Oil field equipment. 2012, 41(2): 67-70.

[8] H.L. Li, S.W. Guo, Gao qiang du wei he jin guan xian gang xian wei zu zhi fen xi yu jian bie tu pu[M]. Petroleum Industry Press. 2001: 19.

[9] American Petroleum Institute. API Specification 5ST: Specification for Coiled Tubing[S].The 8st Edition. Washington: API Publishing Services. (2010).

[10] Z.Y. Bi, X.F, Zhang, W.P. Zhang, X.T. Jing .Design and manufacture of fatigue test of coiled tubing[J]. Phisical Testing and chemical ananlysis part A physical testing. 2012, 48(2): 79-82.

[11] Y.J. Wang, Z.X. Wang, L.Y. Shen, X.Y. Li. Domesticeep and Ultra-deep Drilling Technology Status and Development Trend [J],Petrochemical Industry Technology, 2016, (2): 52.

[12] Caineng Zou, Dazhong Dong, Shejiao Wang, et al, Geological characteristics and resource potential of shale gas in China, Petroleum Exploration and Development. 2010, 37(6): 641-653.

DOI: 10.1016/s1876-3804(11)60001-3

[13] Xin gang Zhao, Jiaoli Kang, Bei Lan, Focus on the development of shale gas in China—Based on SWOT analysis, Renewable and Sustainable Energy Reviews. 2013, 21: 603-613.

DOI: 10.1016/j.rser.2012.12.044
