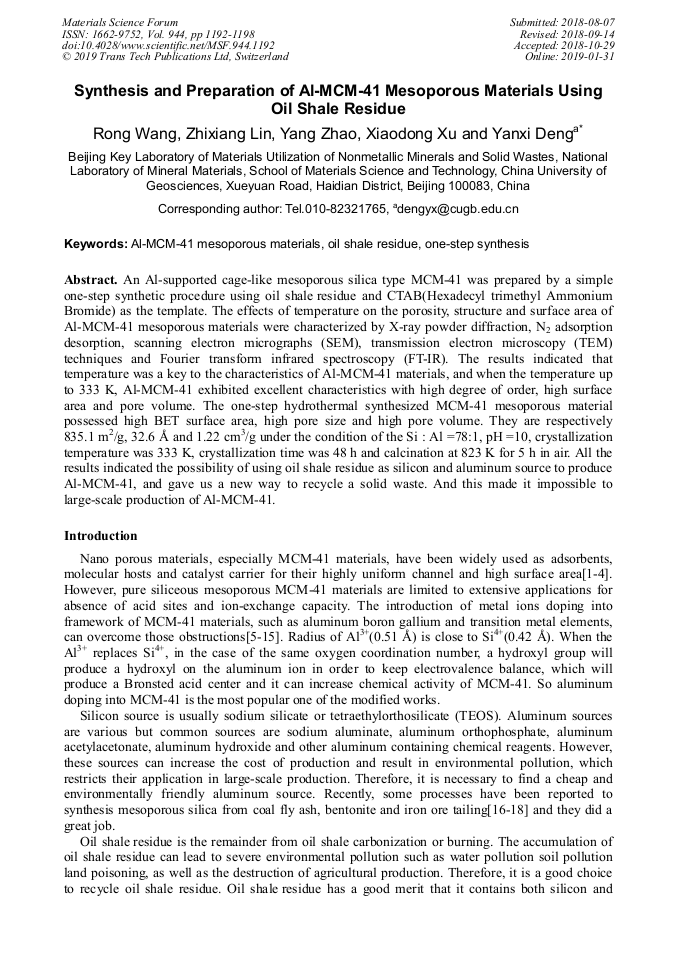

Synthesis and Preparation of Al-MCM-41 Mesoporous Materials Using Oil Shale Residue

Abstract:

An Al-supported cage-like mesoporous silica type MCM-41 has been prepared using a simple one-step synthetic procedure using oil shale residue and CTAB(Hexadecyl trimethyl Ammonium Bromide) as the template. The effects of temperature on the porosity, structure and surface area of Al-MCM-41 mesoporous materials were characterized by X-ray powder diffraction, N₂ adsorption desorption, scanning electron micrographs (SEM), transmission electron microscopy (TEM) techniques and Fourier transform infrared spectroscopy (FT-IR). The results indicated that temperature was a key to the characteristics of Al-MCM-41 materials, and when the temperature up to 333 K, Al-MCM-41 exhibited excellent characteristics with high degree of order, high surface area and pore volume. The one-step hydrothermal synthesized MCM-41 mesoporous material possessed high BET surface area, high pore size and high pore volume. They are respectively 835.1 m²/g, 32.6 Å and 1.22 cm³/g under the condition of the Si : Al =78:1, pH =10, crystallization temperature was 333K, crystallization time was 48h and calcination at 823 K for 5 h in air. All the results indicated the possibility of using oil shale residue as silicon and aluminum source to produce Al-MCM-41, and gave us a new way to recycle a solid waste. As well as this made it impossible to large-scale production of Al-MCM-41. Keywords: Al-MCM-41 mesoporous materials, oil shale residue, one-step synthesis

• Periodical: Materials Science Forum (Volume 944)
• Pages: 1192-1198
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.1192
• Online since: January 2019
• Authors: Rong Wang, Zhi Xiang Lin, Yang Zhao, Xiao Dong Xu, Yan Xi Deng*
• Keywords: Al-MCM-41 Mesoporous Materials, Oil Shale Residue, One-Step Synthesis

References

[1] Hamzehloo, M., et al.The synergistic cooperation between MCM-41 and azithromycin: a pH responsive system for drug adsorption and release. Journal of Porous Materials. (2018) 25(5): 1275-1285.

DOI: 10.1007/s10934-017-0538-3

[2] Fujita, S. I., et al. One-Pot Room-Temperature Synthesis of Mg Containing MCM-41 Mesoporous Silica for Aldol Reactions. Journal of Materials Science & Technology. (2018) 34(12): 2521-2528.

DOI: 10.1016/j.jmst.2016.08.025

[3] Kocaman, E., et al.Isobutene oligomerization on MCM-41-supported tungstophosphoric acid. Molecular Catalysis. (2018) 457: 41-50.

DOI: 10.1016/j.mcat.2018.07.013

[4] Mercier, Louis, and T. J. Pinnavaia. Access in mesoporous materials: Advantages of a uniform pore structure in the design of a heavy metal ion adsorbent for environmental remediation. Advanced Materials. (1997) 500-503.

DOI: 10.1002/adma.19970090611

[5] Chen C Y, Li H X, Davis M E. Studies on mesoporous materials: I. Synthesis and characterization of MCM-41[J]. Microporous Materials. (1993) 2(1):17-26.

[6] Kolodziejski W, Corma A, Navarro M T, et al. Solid-state NMR study of ordered mesoporous aluminosilicate MCM-41 synthesized on a liquid-crystal template.[J]. Solid State Nuclear Magnetic Resonance. (1993) 2(5): 253-259.

DOI: 10.1016/0926-2040(93)90005-8

[7] Corma A, Fornes V, Navarro M T, et al. Acidity and Stability of MCM-41 Crystalline Aluminosilicates[J]. Journal of Catalysis. (1994) 148(2): 569-574.

DOI: 10.1006/jcat.1994.1243

[8] Schmidt R, Akporiaye D, Stoecker M, et al. ChemInform Abstract: Synthesis of a Mesoporous MCM‐41 Material with High Levels of Tetrahedral Aluminium[J]. Cheminform. (1994) 25(43): 1493-1494.

DOI: 10.1002/chin.199443285

[9] Akporiaye D, Hansen E W, Schmidt R, et al. Water-Saturated Mesoporous MCM-41 Systems Characterized by 1H NMR[J]. Journal of Physical Chemistry A. (1995) 99(12): 4148-4112.

DOI: 10.1021/j100012a040

[10] On D T, And P N J, Kaliaguine S. Synthesis, Stability and State of Boron in Boron-Substituted MCM-41 Mesoporous Molecular Sieves[J]. J.phys.chem. (1996) 100(16): 6743-6748.

DOI: 10.1021/jp953516r

[11] Chatterjee M, Iwasaki T, Hayashi H, et al. Characterization of Tetrahedral Vanadium-Containing MCM-41 Molecular Sieves Synthesized at Room Temperature[J]. Chemistry of Materials. (1999) 11(5).

DOI: 10.1021/cm981152k

[12] Dai L X, Hayasaka R, Iwaki Y, et al. Vapour phase Beckmann rearrangement of cyclohexanone oxime catalysed by H? zeolite[J]. Chemical Communications. (1996) 9(9): 1071-1072.

DOI: 10.1039/cc9960001071

[13] Ulagappan N, Rao C N R. Synthesis and characterization of the mesoporous chromium silicates, Cr-MCM-41[J]. Chemical Communications. (1996) 9(9): 1047-1048.

DOI: 10.1039/cc9960001047

[14] Jentys A, Pham N H, Vinek H, et al. Synthesis and characterization of mesoporic materials containing highly dispersed cobalt[J]. Microporous Materials. (1996) 6(1): 13-17.

DOI: 10.1016/0927-6513(95)00079-8

[15] Wang L, Velu S, Tomura S, et al. Synthesis and characterization of CuO containing mesoporous silica spheres[J]. Journal of Materials Science (2002) 37(4): 801-806.

[16] Zhou C, Gao Q, Luo W, et al. Preparation, characterization and adsorption evaluation of spherical mesoporous Al-MCM-41 from coal fly ash [J]. Journal of the Taiwan Institute of Chemical Engineers, 2015, 52(3): 147-157.

DOI: 10.1016/j.jtice.2015.02.014

[17] Yang, H.M., Deng, Y.H. Novel synthesis of ordered mesoporous materials Al-MCM-41 from bentonite. Appl. Clay Sci. (2010) 47 351-355.

DOI: 10.1016/j.clay.2009.11.050

[18] Yang, G, Deng, Y. X., Wang, J. Non-hydrothermal synthesis and characterization of MCM-41 mesoporous materials from iron ore tailing. Ceram. Int. (2014) 40, 7401-7406.

DOI: 10.1016/j.ceramint.2013.12.086

[19] Horváth G, Kawazoe K. Method for Calculation of Effective Pore Size Distribution in Molecular Sieve Carbon[J]. Journal of Chemical Engineering of Japan. (1983) 16(6):470-475.

DOI: 10.1252/jcej.16.470

[20] Huo Q, Zhao D, Feng J, et al. Cheminform Abstract:ambient temperature Growth of Mesoporous Silica Fibers: A New High- Surface-Area Optical Waveguide.[J]. Cheminform. (2010) 28(48): 974-978.

DOI: 10.1002/chin.199748015

[21] Sakthivel A, Badamali S K, Selvam P. para-Selective t-butylation of phenol over mesoporous H-AlMCM-41[J]. Microporous & Mesoporous Materials. (2000) 39(3): 457-463.

DOI: 10.1016/s1387-1811(00)00222-5

[22] Selvam P, Bhatia S K, Sonwane C G. Recent Advances in Processing and Characterization of Periodic Mesoporous MCM-41 Silicate Molecular Sieves[J]. Industrial & Engineering Chemistry Research. (2001) 40(15): 3237-3261.

DOI: 10.1021/ie0010666

[23] Rouquerol F, Rouquerol J, Sing K. Adsorption by Powder and Porous Solids. Academic Press, Scan Diego. (1999).

DOI: 10.1016/b978-012598920-6/50002-6

[24] Zheng M, Zhao T, Xu W, et al. Preparation and characterization of CuO/SiO 2, and NiO/SiO 2, with bimodal pore structure by sol-gel method[J]. Journal of Sol-Gel Science and Technology. (2006) 39(2): 151-157.

DOI: 10.1007/s10971-006-9172-2

[25] Yaling Xie, Aidong Tang, Huaming Yang. Synthesis of Nanoporous Materials Al-MCM-41 from Natural Halloysite[J]. Nano Brief Reports & Reviews. (2015) 10(1).

DOI: 10.1142/s1793292015500058

[26] Yu K, Quyang Z, Zaman B, et al. Single-sized Cd Se nanocrystals with Bandgap Photoemission via non-injected one-pot approach.[J]. Journal of Physical Chemistry C Nanomaterials & Interfaces. (2009).
