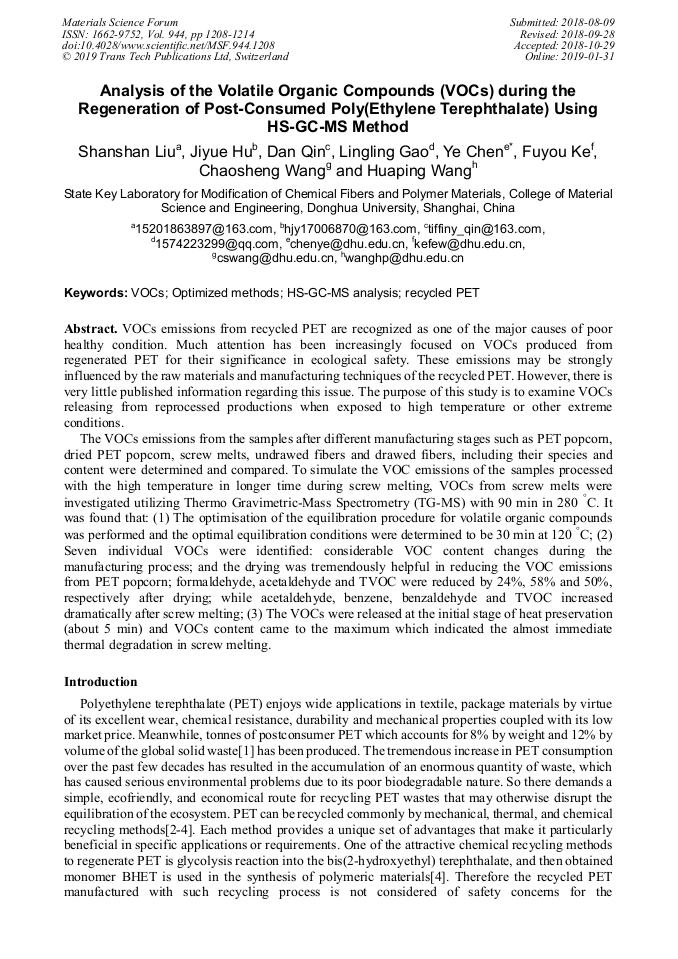

Analysis of the Volatile Organic Compounds (VOCs) during the Regeneration of Post-Consumed Poly(Ethylene Terephthalate) Using HS-GC-MS Method

Abstract:

VOCs emissions from recycled PET are recognized as one of the major causes of poor healthy condition. Much attention has been increasingly focused on VOCs produced from regenerated PET for their significance in ecological safety. These emissions may be strongly influenced by the raw materials and manufacturing techniques of the recycled PET. However, there is very little published information regarding this issue. The purpose of this study was to examine VOCs releasing from reprocessed productions when exposed to high temperature or other extreme conditions.In this study, we determined and compared VOCs emissions from samples after different manufacturing stages such as PET popcorn, dried PET popcorn, screw melts, undrawed fibers and drawed fibers, including their species and content. To simulate the VOC emissions of samples processed with the high temperature in longer time during screw melting, we investigated VOCs from screw melts utilizing Thermo Gravimetric-Mass Spectrometry (TG-MS) with 90 min in 280^°C . We found that: (1) The optimisation of the equilibration procedure for volatile organic compounds was performed and the optimal equilibration conditions were determined to be 30 min at 120^°C ; (2) Seven individual VOCs were identified: considerable VOC content changes during the manufacturing process; and the drying was tremendously helpful in reducing the VOC emissions from PET popcorn; formaldehyde, acetaldehyde and TVOC were reduced by 24%, 58% and 50%, respectively after drying; while acetaldehyde, benzene, benzaldehyde and TVOC increased dramatically after screw melting; (3) The VOCs were released at the initial stage of heat preservation (about 5 min) and VOCs content came to the maximum which indicated the almost immediate thermal degradation in screw melting.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 1208-1214
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.1208
• Online since: January 2019
• Authors: Shan Shan Liu, Ji Yue Hu, Dan Qin, Ling Ling Gao, Ye Chen*, Fu You Ke, Chao Sheng Wang, Hua Ping Wang
• Keywords: HS-GC-MS Analysis, Optimized Methods, Recycled PET, VOCs

References

[1] G. Neena. and T. Kurian, Recent Developments in the Chemical Recycling of Postconsumer Poly(ethylene terephthalate) Waste,J. Ind Eng Chen Res, 53(37) 2014 14185-14198.

DOI: 10.1021/ie501995m

[2] M. Teotia, N. Tarannum, R. K. Soni, Depolymerization of PET waste to potentially applicable aromaticamides: Their characterization and DFT study,J. J Appl Polym Sci, 2017 45153(1-10).

DOI: 10.1002/app.45153

[3] N. D. Pingale, V. S. Palekar, S.R. Shukla, Glycolysis of postconsumer polyethylene terephthalate waste,J. J Appl Polym Sci. 115(1) 2010 249-254.

DOI: 10.1002/app.31092

[4] S. B. Wang, C. S. Wang, H. P. Wang, X. L. Chen, S. B. Wang., Sodium titanium tris(glycolate) as a catalyst for the chemical recycling of poly(ethylene terephthalate) via glycolysis and repolycondensation, J. Polym Degrad Stabil. 114 2015 105-114.

DOI: 10.1016/j.polymdegradstab.2015.02.006

[5] D Qin, C. S. Wang, H. P. Wang., Effect of Azo Dyes on the Thermal Degradation of Post-consumer Polyester Fabrics, in MATEC Web of Conferences. 2016 06053.

DOI: 10.1051/matecconf/20166706053

[6] A. Choodum, P. Thavarungkul, P. Kanatharana, Acetaldehyde residue in polyethylene terephthalate (PET) bottles. J Environ Sci Health B, 42(5) 2007 577-583.

DOI: 10.1080/03601230701391856

[7] Z. K. He,Y. P. Zhang, W. J. Wei, Formaldehyde and VOC emissions at different manufacturing stages of wood-based panels, J. Build Environ, 47 2012 197-204.

DOI: 10.1016/j.buildenv.2011.07.023

[8] M. Mutsuga, Y. Kawamura, Y. Sugita-Konishi, Y. Hara-Kudo, K. Takatori, K.Tanamoto, Migration of formaldehyde and acetaldehyde into mineral water in polyethylene terephthalate (PET) bottles, J. Food Addit Contam, 23(2) 2006 212-218.

DOI: 10.1080/02652030500398361

[9] B.Thiebaut, A. Lattuati-Derieux, M. Hocevar, L. B. Vilmont, Application of headspace SPME-GC-MS in characterisation of odorous volatile organic compounds emitted from magnetic tape coatings based on poly(urethane-ester) after natural and artificial ageing.J. Polym Test, 26(2) 2007 243-256.

DOI: 10.1016/j.polymertesting.2006.10.006

[10] C. Dutra, D. Pezo, M. T. Freire, C. Nerín, F. G. Reyes, Determination of volatile organic compounds in recycled polyethylene terephthalate and high-density polyethylene by headspace solid phase microextraction gas chromatography mass spectrometry to evaluate the efficiency of recycling processes, J. J Chromatogr A, 1218(10) 2011.1319-1330.

DOI: 10.1016/j.chroma.2010.12.099

[11] L. Duffin, X. Wang, J. Stoesz, Detection of Volatile Organic Compounds in Froth Multiphase Systems from Oil Sands Operations Using a Headspace GC–MS Method, J. Energy & Fuels, 31(11) 2017. 11925-11931.

DOI: 10.1021/acs.energyfuels.7b02286

[12] M. Molina-Calle, F. Priego-Capote, MDLD. Castro, Headspace−GC–MS volatile profile of black garlic vs fresh garlic: Evolution along fermentation and behavior under heating, J. LWT, 80 2017 98-105.

DOI: 10.1016/j.lwt.2017.02.010

[13] C. Bach, X. Dauchy, I. Severin, J. F Munoz, S. Etienne, Effect of temperature on the release of intentionally and non-intentionally added substances from polyethylene terephthalate (PET) bottles into water: Chemical analysis and potential toxicity, J. Food Chem, 139(1-4) 2013 672-680.

DOI: 10.1016/j.foodchem.2013.01.046

[14] D. Qin, C. S. Wang, H. P. Wang, Y. Chen, P. Ji, Modeling and Optimizing of Producing Recycled PET from Fabrics Waste via Falling Film-Rotating Disk Combined Reactor. International, J. Journal of Polymer Science, 2017 1-13.

DOI: 10.1155/2017/1062493
