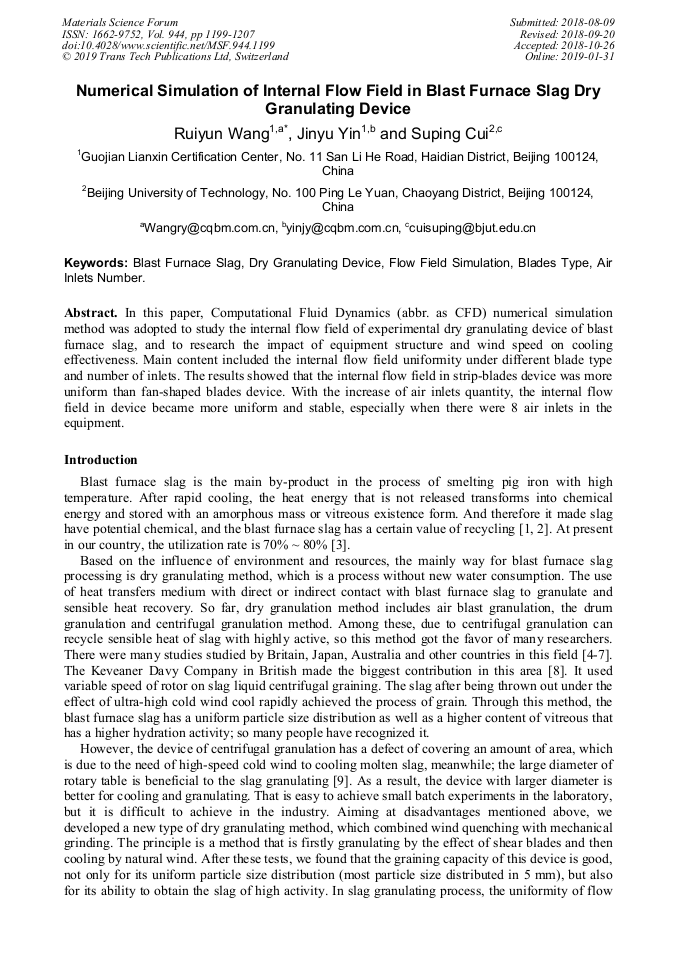

Numerical Simulation of Internal Flow Field in Blast Furnace Slag Dry Granulating Device

Abstract:

In this paper, CFD numerical simulation method was adopted to study the internal flow field of experimental dry granulating device of blast furnace slag and to research the impact of equipment structure and wind speed on cooling effectiveness. Main content included the internal flow field uniformity under different blade type and number of inlets. The results showed that the internal flow field in strip-blades device was more uniform than fan-shaped blades device. With the increase of air inlets quantity, the internal flow field in device became more uniform and stable, especially when there were 8 air inlets in the equipment.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 1199-1207
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.1199
• Online since: January 2019
• Authors: Rui Yun Wang*, Jin Yu Yin, Su Ping Cui
• Keywords: Air Inlets Number, Blades Type, Blast Furnace Slag, Dry Granulating Device, Flow Field Simulation

References

[1] Wen Zhen. A new way of blast furnace slag and steel slag utilization [J].Technology and Market (in Chinese). 2010, 17(1):58.

[2] Shen Huiting. An overview of recovery of metals from slags [J]. Waste Management. 2003, (23):933-949.

DOI: 10.1016/s0956-053x(02)00164-2

[3] Feng Huiling, Sun Chen, Jia Lijun. Present situation and development tendency of blast furnace slag treatment [J]. Industrial Furnace (in Chinese). 2012, 34(4):16-18.

[4] Kenny W F. Energy conservation in process industries [M].Orlando: Academic Press,(1984).

[5] Toshio MIZUOCHI, Tomohiro AKIYAMA, Taihei SHIMA-DA, et al. Feasibility of rotary cup atomizer for slag granulation [J]. ISIJ International, 2001, 41(12):1423-1428.

DOI: 10.2355/isijinternational.41.1423

[6] Mizuochi T, Yagi J. Granulation of molten slag for heat recovery [C]. 37th Intersociety Energy Conversion Engineering Conference(IECEC 2002) Washington DC: IEEE, 2002, 641-646.

DOI: 10.1109/iecec.2002.1392121

[7] Xie D, Washington B. Dry granulation of slags-turning waste in to valuable products [J]. Materialand Craft, 2005, 18(4):1088-1091.

[8] Barry Featherstone W, Holliday K A. Slag treatment improvement by slag granulation [J]. Iron and Steel Engineer, 1998, (7):42-46.

[9] Yang Yinkai. Numerical simulation of blast furnace slag's dry centrifugal granulation [D]. Wuhan University of Science and Technology (in Chinese), (2013).

[10] SPALDING D B. Mathematics and computers in simulation [M].Holland: North Holland, (1981).

[11] JHW LEE&C Q CHEN. Numerical simulation of line puff via RNG k-ε model [J]. Communication of Nonlinear Science and Numerical Simulation, 1996, 1(4): 6-11.

DOI: 10.1016/s1007-5704(96)90045-3

[12] Gao Yuling, Chen Keqiang. Numerical simulation of viscous flow around a rowing shell [J]. Journal of Wuhan University of Technology (Transportation Science & Engineering) (in Chinese), 2010, 34(3):629-631.

[13] Zou Xing, Li Haitao, Zong Zhi. Numerical simulation on the process of structure water exit based on VOF model [J]. Journal of Wuhan University of Technology (Information & Management Engineering) (in Chinese), 2012, 34(5):558-561.

[14] Wang Fujun. Computational fluid dynamics analysis [M],Beijing: Tsinghua University Press (in Chinese), 2004, 116.

[15] Li Guohua, Han Fangliang, Nie Wenping. Numerical simulation of inner cavity flow field in New blade turbine classifier [J]. Journal of WuHan University of Technology (Information & Management Engineering) (in Chinese), 2006, 28(2):32-35.
