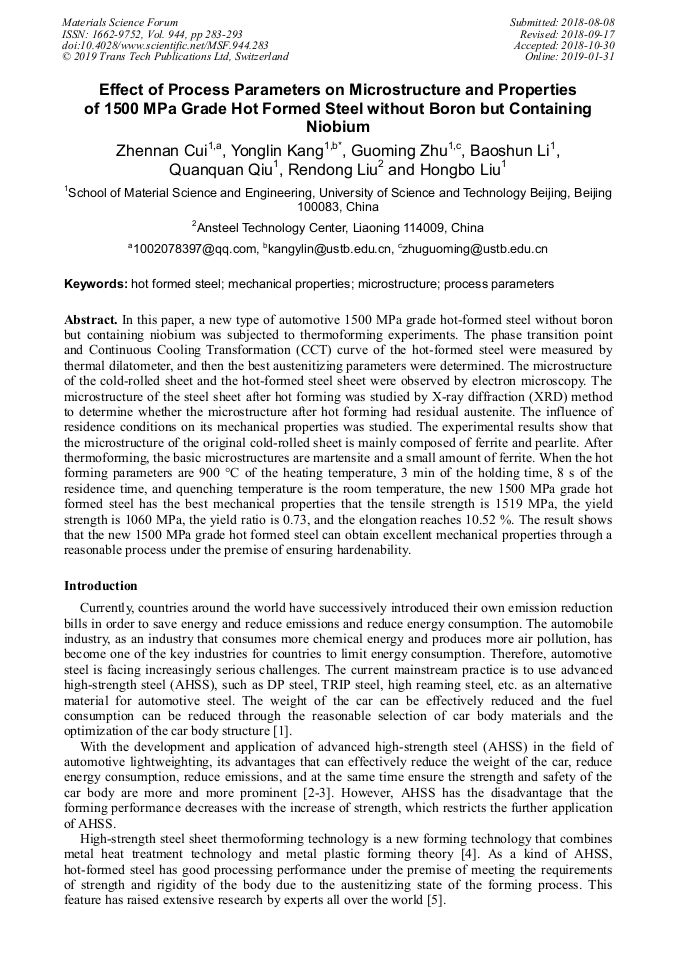

Effect of Process Parameters on Microstructure and Properties of 1500 MPa Grade Hot Formed Steel without Boron but Containing Niobium

Abstract:

In this paper, a new type of automotive 1500 MPa grade hot-formed steel without boron but containing niobium was subjected to thermoforming experiments. The phase transition point and Continuous Cooling Transformation (CCT) curve of the hot-formed steel were measured by thermal dilatometer, and then the best austenitizing parameters was determined. The microstructure of the cold-rolled sheet and the hot-formed steel sheet were observed by electron microscopy. The microstructure of the steel sheet after hot forming was studied by X-ray diffraction (XRD) method to determine whether the microstructure after hot forming had residual austenite. The influence of residence conditions on its mechanical properties was studied. The experimental results has shown that the microstructure of the original cold-rolled sheet is mainly composed of ferrite and pearlite. After thermoforming, the basic microstructure are martensite and a small amount of ferrite; When the hot forming parameters is that 900 °C of the heating temperature, 3 min of the holding time, 8 s of the residence time, quenching temperature is the room temperature, the new 1500 MPa grade hot formed steel has the best mechanical properties that the tensile strength is 1519 MPa, the yield strength is 1060 MPa, the yield ratio is 0.73, and the elongation reaches 10.52%. The result shows that the new 1500 MPa grade hot formed steel could obtain excellent mechanical properties through a reasonable process under the premise of ensuring hardenability.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 283-293
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.283
• Online since: January 2019
• Authors: Zhen Nan Cui, Yong Lin Kang*, Guo Ming Zhu, Bao Shun Li, Quan Quan Qiu, Ren Dong Liu, Hong Bo Liu
• Keywords: Hot Formed Steel, Mechanical Properties, Microstructure, Process Parameters

References

[1] W.L. Xu, S.R. Guan, J. Ai, A.H. Luo, Introduction of sheet metal hot-forming, Journal of Plasticity Engineering, 16 (4) (2009) 39.

[2] A. Turetta, S. Bruschi, A. Ghiotti, Investigation of 22MnB5 formability in hot stamping operations, Journal of Materials Processing Tech, 177(1-3) (2006) 396.

DOI: 10.1016/j.jmatprotec.2006.04.041

[3] H.T. Sun, P. Hu, N. Ma, G.Z. Shen, B. Liu, D.L. Zhou, Application of hot forming high strength steel parts on car body in side impact, Chinese Journal of Mechanical Engineering, 23(2) (2010) 252.

DOI: 10.3901/cjme.2010.02.252

[4] H. Karbasian, A.E. Tekkaya, A review on hot stamping, Journal of Materials Processing Tech, 210(15) (2010) 2103.

DOI: 10.1016/j.jmatprotec.2010.07.019

[5] N. Ma, G.Z. Shen, H.P. Sun, P. Hu, Material performance of hot-forming high strength steel and its application in vehicle body, Journal of Mechanical Engineering, 47(8) (2011) 60.

DOI: 10.3901/jme.2011.08.060

[6] Y.L. Zhang, X.G. Li, X. Zhang, Research and development of hot stamping of high strength steel sheets, Automobile Technology & Material, (2) (2015) 41.

[7] Y.L. Kang, Theory and technology of processing and forming for advanced automobile steel sheets [M], Beijing: Metallurgical Industry Press, (2009) 509.

[8] L. Bao, H.J. Zhang, The research and development of hot stamping forming technology and production line in view of high strength steel plate, Applied Mechanics & Materials, 422 (2013) 75.

DOI: 10.4028/www.scientific.net/amm.422.75

[9] Y.H. Mu, B.Y. Wang, J. Zhou, X. Huang, J.L. Li, Influences of hot stamping parameters on mechanical properties and microstructure of 30MnB5 and 22MnB5 quenched in flat die, Journal of Central South University, 25(4) (2018) 736.

DOI: 10.1007/s11771-018-3778-8

[10] W. Chen, W.L. Yang, Z.Q. Shu, L. Chen, Experimental research on key parameters of quenching process during hot stamping, Journal of Plasticity Engineering, 25(1) (2018) 264.

[11] W.G. Yu, X.P. Qiu, J. Zhang, S.M. Jiang, H.Y. Yang, Q.F. Zhang, Influence of pre-alloying time on zinc-based coatings of hot forming steel in structure and component. Iron and Steel, 52(7) (2017) 84.

[12] L.J. Zhu, Z.W. Gu, H Xu, Y. Lü, J. Chao, Modeling of microstructure evolution in 22MnB5 steel during hot stamping, Journal of Iron and Steel Research(International), 21(2) (2014) 197.

DOI: 10.1016/s1006-706x(14)60030-3

[13] Q.Y. Liu, G.J. Zhang, K.K. Li, L.L. Xia, Effect of initial temperature of sheet metal and stamping speed on 22MnB5 hot Stamping Process, Journal of North China University of Science & Technology, 39(4) (2017) 41.

[14] X.T. Li, J. Zhang, X.P. Qiu, S.M. Jiang, Q.F. Zhang, H.X. Teng, Effect of heating temperature on cracking of galvanized hot-formed steel, Heat Treatment of Metals, (1) (2018) 208.

[15] H.L. Yi, C.J. Dong, Hot press forming process and HPF steel, Shandong Metallurgy, 31(5) (2009) 17.

[16] H.G. Yang, Z.Z. Zhao, Y.H. Yang, J.T. Liang, Microstructure and properties of 1800 MPa-grade cold-rolled hot stamping steel, Cailiao Rechuli Xuebao/transactions of Materials & Heat Treatment, 38(7) (2017) 120.
