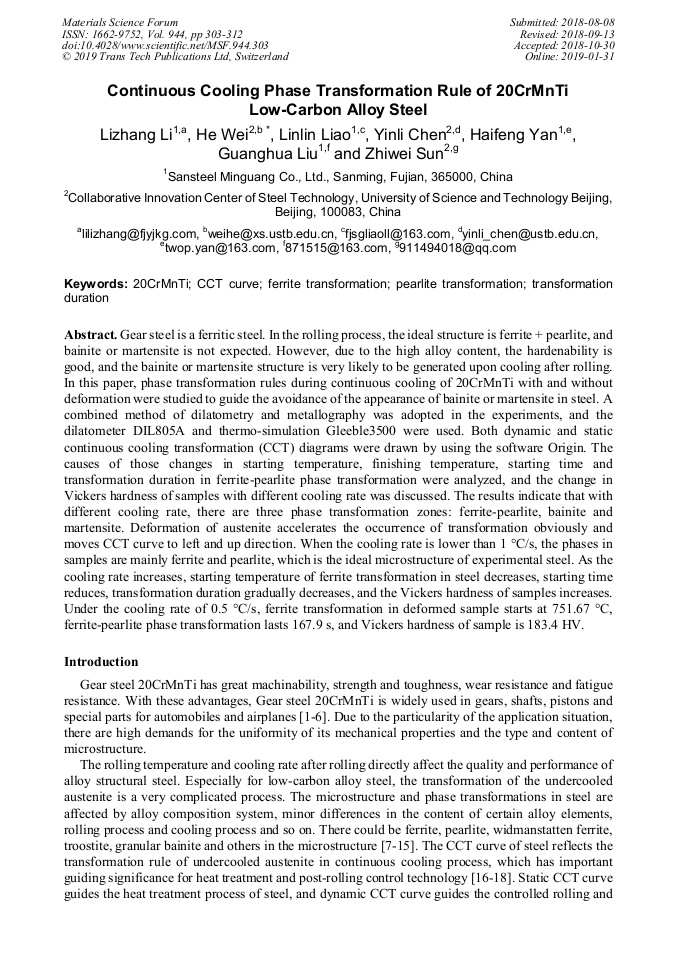

Continuous Cooling Phase Transformation Rule of 20CrMnTi Low-Carbon Alloy Steel

Abstract:

Gear steel is a ferritic steel. In the rolling process, the ideal structure is ferrite + pearlite, and bainite or martensite is not expected. However, due to the high alloy content, the hardenability is good, and the bainite or martensite structure is very likely to be generated upon cooling after rolling. In this paper, phase transformation rules during continuous cooling of 20CrMnTi with and without deformation were studied to guide the avoidance of the appearance of bainite or martensite in steel. A combined method of dilatometry and metallography was adopted in the experiments, and the dilatometer DIL805A and thermo-simulation Gleeble3500 were used. Both dynamic and static continuous cooling transformation (CCT) diagrams were drawn by using the software Origin. The causes of those changes in starting temperature, finishing temperature, starting time and transformation duration in ferrite-pearlite phase transformation were analyzed, and the change in Vickers hardness of samples with different cooling rate was discussed. The results indicate that with different cooling rate, there are three phase transformation zones: ferrite-pearlite, bainite and martensite. Deformation of austenite accelerates the occurrence of transformation obviously and moves CCT curve to left and up direction. When the cooling rate is lower than 1 °C/s, the phases in samples are mainly ferrite and pearlite, which is the ideal microstructure of experimental steel. As the cooling rate increases, starting temperature of ferrite transformation in steel decreases, starting time reduces, transformation duration gradually decreases, and the Vickers hardness of samples increases. Under the cooling rate of 0.5 °C/s, ferrite transformation in deformed sample starts at 751.67 °C, ferrite-pearlite phase transformation lasts 167.9 s, and Vickers hardness of sample is 183.4 HV.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 303-312
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.303
• Online since: January 2019
• Authors: Li Zhang Li, He Wei*, Lin Lin Liao, Yin Li Chen, Hai Feng Yan, Guang Hua Liu, Zhi Wei Sun
• Keywords: 20CrMnTi, CCT Curve, Ferrite Transformation, Pearlite Transformation, Transformation Duration

References

[1] M. N. Oğuztöreli, D. Mangeron, Cr atom diffusion in tribolayer T10 steel induced by dry sliding against 20CrMnTi steel, Appl. Surf. Sci., 270 (2013) 145-149.

DOI: 10.1016/j.apsusc.2012.12.147

[2] X. Wang, X. Wei, X. Hong, J. Yang, W. Wang, Formation of sliding friction-induced deformation layer with nanocrystalline structure in T10 steel against 20CrMnTi steel, Appl. Surf. Sci., 280 (2013) 381-387.

DOI: 10.1016/j.apsusc.2013.04.165

[3] X. Wang, X. Wei, X. Yang, Z. Cheng, W. Wang, Atomic diffusion of gradient ultrafine structured surface layer produced by T10 steel rubbing against 20CrMnTi steel, Wear, 304 (2013) 118-125.

DOI: 10.1016/j.wear.2013.04.034

[4] F. Qin, W. Feng, S. Wu, Microstructure and vickers-hardness of 20CrMnTiH steel during hot compression testing, Ironmaking & Steelmaking., 59 (2017) 1-7.

DOI: 10.1080/03019233.2017.1297003

[5] W. Feng, F. Qin, H. Long, Hot workability analysis and processing parameters optimisation for 20CrMnTiH steel by combining processing map with microstructure, Ironmaking & Steelmaking., 37 (2016) 1-8.

DOI: 10.1080/03019233.2016.1264145

[6] S.T. Wu, W. Feng, X. Hu, Constitutive modelling of flow behaviour of 20CrMnTiH steel, Ironmaking & Steelmaking, 42 (2014) 481-488.

DOI: 10.1179/1743281214y.0000000248

[7] Z.J. Xie, C.J. Shang, S.V. Subramanian, X.P. Ma, R.D.K. Misra, Atom probe tomography and numerical study of austenite stabilization in a low carbon low alloy steel processed by two-step intercritical heat treatment, Scr. Mater., 137 (2017) 36-40.

DOI: 10.1016/j.scriptamat.2017.05.002

[8] M. Kubota, Y. Kobayashi, K. Ushioda, J. Takahashi, Effects of alloying elements on static recrystallization behavior of work-hardened austenite of high carbon low alloy steel, Mater. Trans., 58 (2017) 186-195.

DOI: 10.2320/matertrans.m2016343

[9] E.P.D. Silva, W. Xu, C. Föjer, Y. Houbaert, J. Sietsma, Phase transformations during the decomposition of austenite below M s, in a low-carbon steel, Mater. Charact., 95 (2014) 85-93.

DOI: 10.1016/j.matchar.2014.06.003

[10] N. Takayama, G.Miyamoto, T. Furuhara, Chemistry and three-dimensional morphology of martensite-austenite constituent in the bainite structure of low-carbon low-alloy steels, Acta Mater., 58 (2017) 78-86.

DOI: 10.1016/j.actamat.2017.11.036

[11] A.S. Aghdam, S.R. Allahkaram, S. Mahdavi, Corrosion and tribological behavior of Ni–Cr alloy coatings electrodeposited on low carbon steel in Cr (III)–Ni (II) bath, Surf. Coat. Technol., 281 (2015) 144-149.

DOI: 10.1016/j.surfcoat.2015.10.006

[12] M. Szkodo, Influence of laser processing of the low alloy medium carbon structural steel on the development of the fatigue crack, Surf. Coat. Technol., 296 (2016) 117-123.

DOI: 10.1016/j.surfcoat.2016.04.032

[13] L. Lan, C. Qiu, H. Song, D. Zhao, Correlation of martensite–austenite constituent and cleavage crack initiation in welding heat affected zone of low carbon bainitic steel, Mater. Lett., 125 (2014) 86-88.

DOI: 10.1016/j.matlet.2014.03.123

[14] X. Zhang, S. Yang, W. Zhang, H. Guo, X. He, Influence of outer rust layers on corrosion of carbon steel and weathering steel during wet–dry cycles, Corros. Sci., 82 (2014) 165-172.

DOI: 10.1016/j.corsci.2014.01.016

[15] X. Yu, Z. Jiang, J. Zhao. D. Wei, C. Zhou, Microstructure and microtexture evolutions of deformed oxide layers on a hot-rolled microalloyed steel, Corros. Sci., 90 (2015) 140-152.

DOI: 10.1016/j.corsci.2014.10.005

[16] Q.S. Wu, S.H. Zheng, Q.Y. Huang, S.J. Liu, Y.Y. Han. Continuous cooling transformation behaviors of CLAM steel, J. Nucl. Mater., 442 (2013) S67-S70.

DOI: 10.1016/j.jnucmat.2013.03.072

[17] C.J. Hamelin, O. Muránsky, M.C. Smith, T.M. Holden, V. Luzin, Validation of a numerical model used to predict phase distribution and residual stress in ferritic steel weldments, Acta Mater., 75 (2014) 1-19.

DOI: 10.1016/j.actamat.2014.04.045

[18] G. Mandal, S.K. Ghosh, S.Mukherjee, Phase transformation and mechanical behaviour of thermo -mechanically controlled processed high-strength multiphase steel, J. Mater. Sci., 51 (2016) 6569-6582.

DOI: 10.1007/s10853-016-9852-4

[19] E.V. Pereloma, A.G. Kostryzhev, A. lshahrani, C. Zhu, J.M. Cairney, Effect of austenite deformation temperature on Nb clustering and precipitation in microalloyed steel, Scr. Mater., 75 (2014) 74-77.

DOI: 10.1016/j.scriptamat.2013.11.026

[20] Z.H. Cai, H. Ding, R.D.K. Misra, Z.Y. Ying, Austenite stability and deformation behavior in a cold-rolled transformation-induced plasticity steel with medium manganese content., Scr. Mater., 84 (2015) 229-236.

DOI: 10.1016/j.actamat.2014.10.052

[21] N. Haghdadi, P. Cizek, H. Beladi, P.D. Hodgson, The austenite microstructure evolution in a duplex stainless steel subjected to hot deformation, Philos. Mag., 97 (2017) 1209-1237.

DOI: 10.1080/14786435.2017.1293860

[22] T.R. Bieler, P. Eisenlohr, F. Roters, D.Kumar, D.E. Mason, Int. J. Plast., 25 (2009) 1655-1683.

[23] T.M. Maccagno, J.J. Jonas, P.D. Hodgson, Spreadsheet modelling of grain size evolution during rod rolling, ISIJ Int., 36 (1996) 720-8.

DOI: 10.2355/isijinternational.36.720

[24] A. Kumar, C. Mcculloch, E.B. Hawbolt, I.V. Samarasekera, Modelling thermal and microstructural evolution on runout table of hot strip mill, Mater. Sci. Technol., 7 (1991) 360-8.

DOI: 10.1179/mst.1991.7.4.360

[25] G. Niu, Y.l. CHEN, X. WANG, Effects of chromium, vanadium and austenite deformation on transformation behaviors of high-strength spring steels, J. Iron. Steel Res. Int., 23 (2016) 1323-1332.

DOI: 10.1016/s1006-706x(16)30195-9

[26] X.U. Jin-Qiao, Y.Z. Liu, S.M. Zhou. Computer simulation of microstructure evolution of 82B rod at different cooling rates, J. Iron. Steel Res. Int., 15 (2008) 56-59.

DOI: 10.1016/s1006-706x(08)60032-1

[27] X. Chen, N. Xiao, D. Li, G. Li, G. Sun, The finite element analysis of austenite decomposition during continuous cooling in 22MnB5 steel, Modell. Simul. Mater. Sci. Eng., 22 (2014) 564-571.

DOI: 10.1088/0965-0393/22/6/065005
