Solution Treatment of 20LH5 Chromium-Manganese Austenitic Stainless Steel

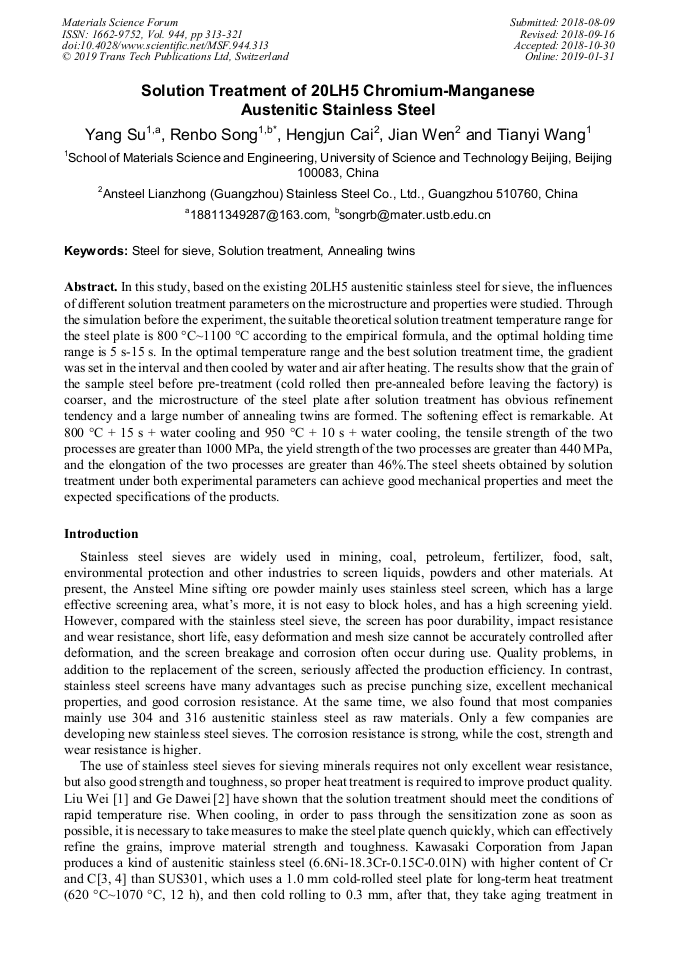

Abstract:

In this study, based on the existing 20LH5 austenitic stainless steel for sieve, the influence of different solution treatment parameters on the microstructure and properties were studied. Through the simulation before the experiment, the suitable theoretical solution treatment temperature range for the steel plate is 800 °C~1100 °C according to the empirical formula, and the optimal holding time range is 5 s-15 s. In the optimal temperature range and the best solution treatment time, the gradient was set in the interval and then cooled by water and air after heating. The results show that the grain of the sample steel before pre-treatment (cold rolled then pre-annealed before leaving the factory) is coarser, and the microstructure of the steel plate after solution treatment has obvious refinement tendency and a large number of annealing twins are formed. The softening effect is remarkable. At 800 °C + 15 s + water cooling and 950 °C + 10 s + water cooling, the tensile strength of the two processes are greater than 1000 MPa, the yield strength of the two processes are greater than 440 MPa, and the elongation of the two processes are greater than 46%.The steel sheets obtained by solution treatment under both experimental parameters can achieve good mechanical properties and meet the expected specifications of the products.

• Periodical: Materials Science Forum (Volume 944)
• Pages: 313-321
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.944.313
• Online since: January 2019
• Authors: Yang Su, Ren Bo Song*, Heng Jun Cai, Jian Wen, Tian Yi Wang
• Keywords: Annealing Twins, Solution Treatment, Steel for Sieve

References

[1] Liu, Wei. SA213-TP304Austenitic Stainless Steel Solid Solution Treatment Technology and Application., Mechanical Management & Development (2014).

[2] Ge, Dafang, et al. Comparison of Two Typical Heat Treatment Process for ZG15CrMo Steel., Heat Treatment of Metals (1998).

[3] Robinson, S. L., et al. Strain-aging in highly worked 316L stainless steel., Practical Failure Analysis 1.2(2001):83-92.

DOI: 10.1007/bf02715166

[4] Moor, E. De, et al. Effect of Retained Austenite Stabilized via, Quench and Partitioning on the Strain Hardening of Martensitic Steels., Metallurgical & Materials Transactions A 39.11(2008):2586.

DOI: 10.1007/s11661-008-9609-z

[5] Mészáros, István, and J. Prohászka. Magnetic investigation of the effect of α'-martensite on the properties of austenitic stainless steel., Journal of Materials Processing Tech 161.1(2005): 162-168.

DOI: 10.1016/j.jmatprotec.2004.07.020

[6] Juntunen, Pasi, et al. Optimizing continuous annealing of interstitial-free steels for improving deep drawability., Metallurgical & Materials Transactions A 32.8(2001):1989-1995.

DOI: 10.1007/s11661-001-0011-3

[7] Fenili, Cleber Pereira, et al. Effect of sensitization on tribological behavior of AISI 304 austenitic stainless steel., International Journal of Materials Research 109.3 (2018): 234-240.

DOI: 10.3139/146.111594

[8] Mahajan, S. Critique of mechanisms of formation of deformation, annealing and growth twins: Face-centered cubic metals and alloys., Scripta Materialia 68.2 (2013): 95-99.

DOI: 10.1016/j.scriptamat.2012.09.011
