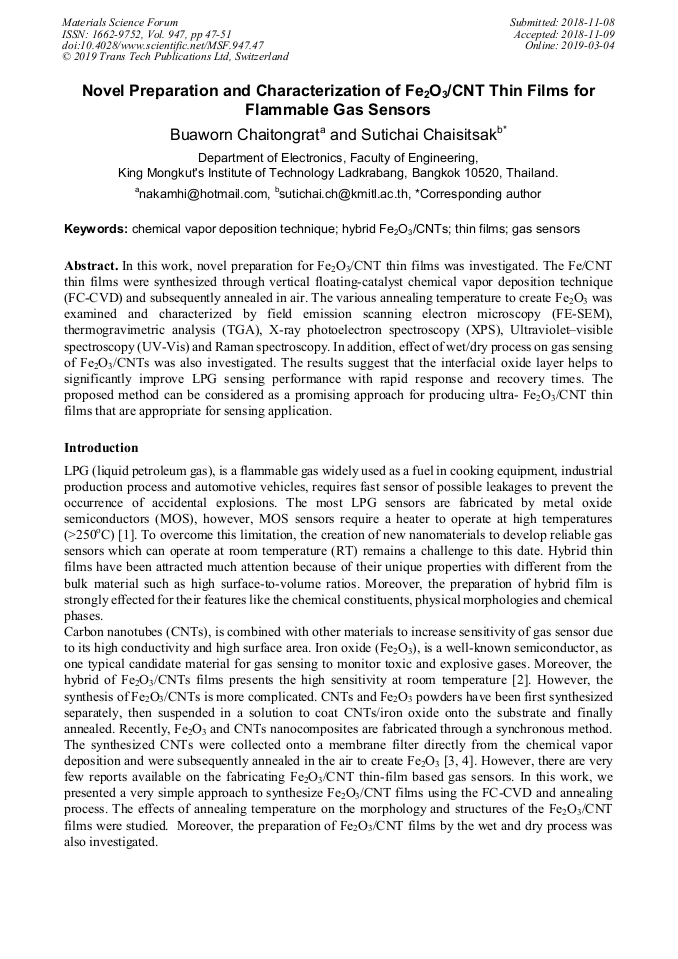

Novel Preparation and Characterization of Fe₂O₃/CNT Thin Films for Flammable Gas Sensors

Abstract:

In this work, novel preparation for Fe₂O₃/CNT thin films was investigated. The Fe/CNT thin films were synthesized through vertical floating-catalyst chemical vapor deposition technique (FC-CVD) and subsequently annealed in air. The various annealing temperature to create Fe₂O₃ was examined and characterized by field emission scanning electron microscopy (FE-SEM), thermogravimetric analysis (TGA), X-ray photoelectron spectroscopy (XPS), Ultraviolet–visible spectroscopy (UV-Vis) and Raman spectroscopy. In addition, effect of wet/dry process on gas sensing of Fe₂O₃/CNTs was also investigated. The results suggest that the interfacial oxide layer helps to significantly improve LPG sensing performance with rapid response and recovery times. The proposed method can be considered as a promising approach for producing ultra-Fe₂O₃/CNT thin films that are appropriate for sensing application.

You might also be interested in these eBooks

Nano Engineering and Materials Technologies III

View Preview

Info:

Periodical:

Materials Science Forum (Volume 947)

Pages:

47-51

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.947.47

Citation:

Cite this paper

Online since:

March 2019

Authors:

Buaworn Chaitongrat, Sutichai Chaisitsak*

Keywords:

Chemical Vapor Deposition Technique, Gas Sensor, Hybrid Fe₂O₃/ CNTs, Thin Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. Patil, V. Patil, and P. Patil: Sensors and Actuators B: Chemical Vol.152(2011), pp.299-306.

DOI: 10.1016/j.snb.2010.12.025

Google Scholar

[2] P. Muthukumaran, C. Sumathi, J. Wilson, C. Sekar, S. Leonardi, and G. Neri: Sensor letters Vol. 12 (2014), pp.17-23.

Google Scholar

[3] C. Hua, Y. Shang, Y. Wang, J. Xu, Y. Zhang, X. Li and A. Cao: Applied Surface Science Vol. 405 (2017), pp.405-411.

Google Scholar

[4] M. Tavakkoli, T. Kallio, O. Reynaud, A. G. Nasibulin, J. Sainio, H. Jiang, E.I. Kauppinen and K. Laasonen: Journal of Materials Chemistry A Vol. 4 (2016), pp.5216-5222.

DOI: 10.1039/c6ta01472k

Google Scholar

[5] K. Jantharamatsakarn and S. Chaisitsak: Procedia Engineering Vol. 93 (2014), pp.49-58.

Google Scholar

[6] F. L. Souza, K. P. Lopes, P. A. Nascente, and E. R. Leite: Solar energy materials and solar cells Vol. 93 (2009), pp.362-368.

DOI: 10.1016/j.solmat.2008.11.049

Google Scholar

[7] B. Chaitongrat and S. Chaisitsak: Journal of Nanomaterials Vol. 2018 (2018).

Google Scholar

[8] M. Lübbe, A. M. Gigler, R. W. Stark, and W. Moritz: Surface Science Vol. 604 (2010), pp.679-685.

Google Scholar
