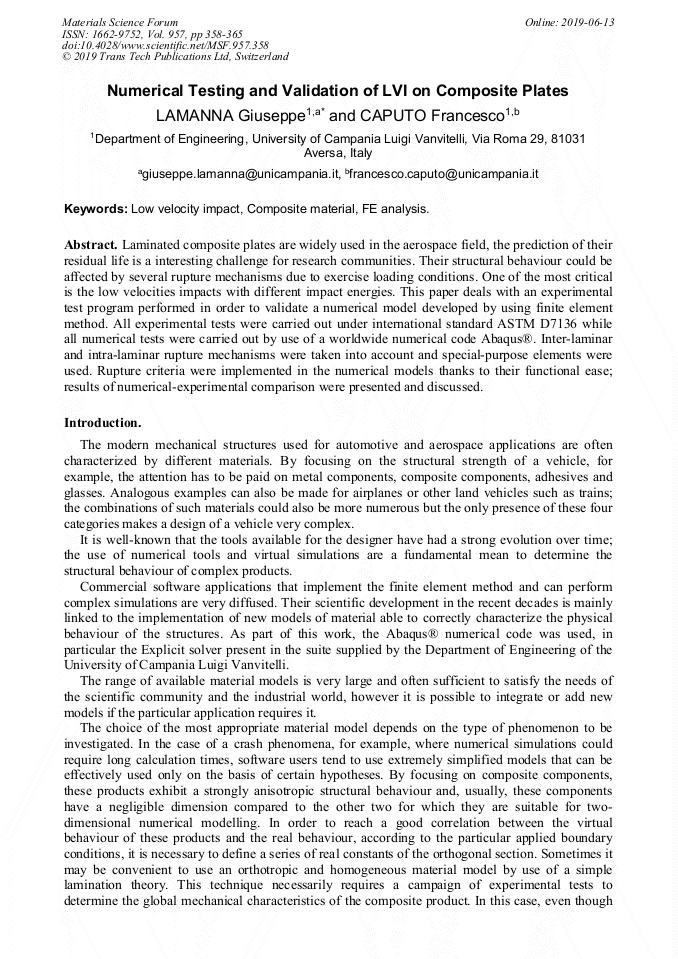

Numerical Testing and Validation of LVI on Composite Plates

Abstract:

Laminated composite plates are widely used in the aerospace field, the prediction of their residual life is a interesting challenge for research communities. Their structural behaviour could be affected by several rupture mechanisms due to exercise loading conditions. One of the most critical is the low velocities impacts with different impact energies. This paper deals with an experimental test program performed in order to validate a numerical model developed by using finite element method. All experimental tests were carried out under international standard ASTM D7136 while all numerical tests were carried out by use of a worldwide numerical code Abaqus®. Inter-laminar and intra-laminar rupture mechanisms were taken into account and special-purpose elements were used. Rupture criteria were implemented in the numerical models thanks to their functional ease; results of numerical-experimental comparison were presented and discussed.

• Periodical: Materials Science Forum (Volume 957)
• Pages: 358-365
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.957.358
• Online since: June 2019
• Authors: Giuseppe Lamanna*, Francesco Caputo
• Keywords: Composite Material, Finite Element Analysis (FEA), Low Velocity Impact

References

[1] F. Caputo, G. Lamanna, A. De Luca, V. Lopresto, Numerical Simulation of LVI Test onto Composite Plates, AIP Conf. Proc. 1599 (2014) 334-337.

DOI: 10.1063/1.4876846

[2] F. Caputo, F. Di Gennaro, G. Lamanna, A. Lefons, A. Riccio, Numerical Procedures for Damage Mechanisms Analysis in CFRP Composites, Key Engineering Materials 569-570 (2013) 111-118.

DOI: 10.4028/www.scientific.net/kem.569-570.111

[3] A. De Luca, Z. Sharif-Khodaei, M.H. Aliabadi, F. Caputo, Numerical simulation of the Lamb wave propagation in impacted CFRP laminate, Procedia Engineering 167 (2016) 109-115.

DOI: 10.1016/j.proeng.2016.11.676

[4] A. De Luca, F. Caputo, Z. Sharif-Khodaei, M.H. Aliabadi, Damage characterization of composite plates under low velocity impact using ultrasonic guided waves, Composites Part B-Engineering 138 (1) (2018) 168-180.

DOI: 10.1016/j.compositesb.2017.11.042

[5] D. Perfetto, A. Greco, F. Caputo, Experimental investigation of GFRP plates under LVI phenomena with different impact energy levels, AIP Conference Proceedings 1981 (2018) 020137.

DOI: 10.1063/1.5045999

[6] F. Caputo, G. Lamanna, A. De Luca, R. Borrelli, S. Franchitti, Global-Local FE simulation of a plate LVI test, SDHM Structural Durability and Health Monitoring 9 (3), 253-267 (2013).

DOI: 10.32604/sdhm.2013.009.253

[7] A. Riccio, G. Di Felice, G. Lamanna, E. Antonucci, F. Caputo, V. Lopresto, M. Zarrelli, A global–local numerical model for the prediction of impact induced damage in composite laminates, Applied Composite Materials 21 (3) (2014) 457-466.

DOI: 10.1007/s10443-013-9343-6

[8] F. Caputo, A. De Luca, A. Greco, S. Maietta, A. Marro, A. Apicella, Investigation on the static and dynamic structural behaviors of a regional aircraft main landing gear by a new numerical methodology, Frattura ed Integrita Strutturale 12 (43) (2018) 191-204.

DOI: 10.3221/igf-esis.43.15

[9] Sepe, R. Citarella, A. De Luca, E. Armentani, Numerical and experimental investigation on the structural behaviour of a horizontal stabilizer under critical aerodynamic loading conditions, Advances in Materials Science and Engineering (2017) 1092701.

DOI: 10.1155/2017/1092701

[10] Z. Sharif-Khodaei, M. Ghajari, M.H. Aliabadi, Determination of impact location on composite stiffened panels, Smart Materials and Structures 21 (2012) 105026.

DOI: 10.1088/0964-1726/21/10/105026

[11] D.W. Sleight, N.F. Knight, J.T. Wang, Evaluation of a Progressive Failure Analysis Methodology for Laminated Composite Structures, AIAA Journal 97:1187 (1997) 2257-2272.

DOI: 10.2514/6.1997-1187

[12] R. Olsson, Analytical prediction of large mass impact damage in composite laminates. Composites Part A 32 (9) (2001) 1207-1215.

DOI: 10.1016/s1359-835x(01)00073-2

[13] N.K. Naik, Y. Chandra Sekher, Damage in woven-fabric composites subjected to low-velocity impact, Composite Science and Technology 6 (5) (2000) 731-744.

DOI: 10.1016/s0266-3538(99)00183-9

[14] G. Lamanna, C. Opran, D. Perfetto, Development of an established FE model for the simulation of LVI tests on GFRP plates, AIP Conference Proceedings 1981 (2018) 020136.

DOI: 10.1063/1.5045998

[15] Z. Hashin, Failure Criteria for Unidirectional Fiber Composites, Journal Applied Mechanism 47 (1980) 329-334.

DOI: 10.1115/1.3153664

[16] A. De Luca, F. Caputo, A review on analytical failure criteria for composite materials, AIMS Materials Science 4 (5) (2017) 1165-1185.

DOI: 10.3934/matersci.2017.5.1165
