Electromagnetic Characteristics of Shape Memory Spring

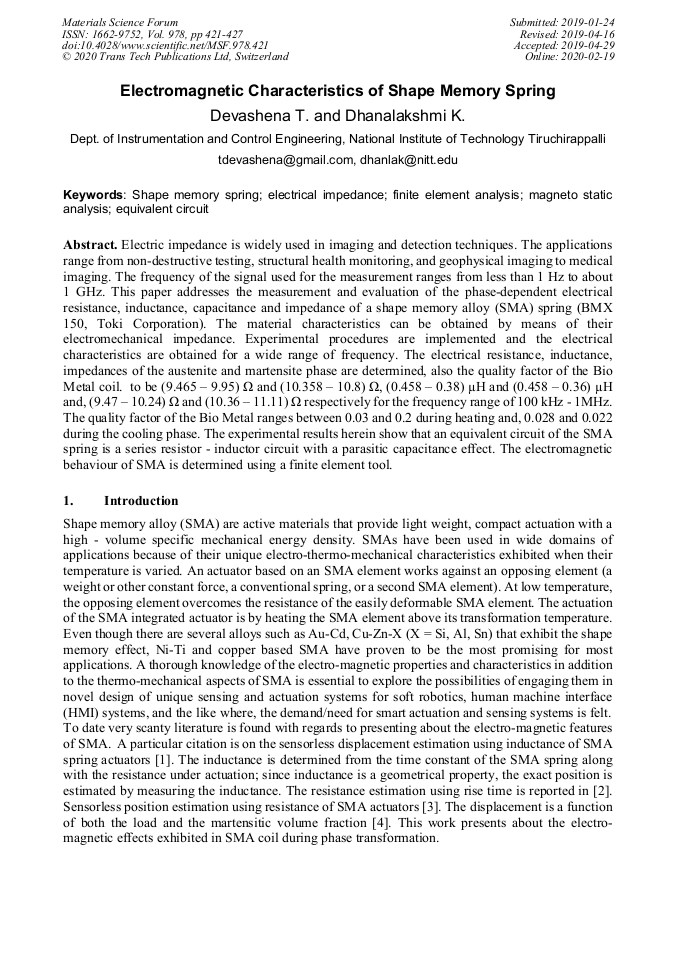

Abstract:

Electric impedance is widely used in imaging and detection techniques. The applications range from non-destructive testing, structural health monitoring, and geophysical imaging to medical imaging. The frequency of the signal used for the measurement ranges from less than 1 Hz to about 1 GHz. This paper addresses the measurement and evaluation of the phase dependent electrical resistance, inductance, capacitance, and impedance of a shape memory alloy (SMA) spring (BMX 150, Toki Corporation). The material characteristics can be obtained by means of their electromechanical impedance. Experimental procedures are implemented and the electrical characteristics are obtained for a wide range of frequency. The electrical resistance, inductance, impedances of the austenite and martensite phase are determined, also the quality factor of the Bio Metal coil to be (9.465 – 9.95) Ω and (10.358 – 10.8) Ω, (0.458 – 0.38) μH and (0.458 – 0.36) μH and, (9.47 – 10.24) Ω and (10.36 – 11.11) Ω respectively for the frequency range of 100 kHz - 1MHz. The quality factor of the Bio Metal ranges between 0.03 and 0.2 during heating and, 0.028 and 0.022 during the cooling phase. The experimental results herein show that an equivalent circuit of the SMA spring is a series resistor-inductor circuit with a parasitic capacitance effect. The electromagnetic behaviour of SMA is determined using a finite element tool.

• Periodical: Materials Science Forum (Volume 978)
• Pages: 421-427
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.978.421
• Online since: February 2020
• Authors: Thangaiyan Devashena, K. Dhanalakshmi*
• Keywords: Electrical Impedance, Equivalent Circuit, Finite Element Analysis, Magnetostatic Analysis, Shape Memory Spring

References

[1] Hongjip Kim, Yongsu Han, Dae-Young Lee, Jung-IK Ha and Kyu-Jin Cho (2013), Sensorless displacement estimation of a shape memory alloy coil spring actuator using inductance, Smart Materials and Structures 22(2), 025001 (8 pp).

DOI: 10.1088/0964-1726/22/2/025001

[2] M. Sreekanth, Abraham T Mathew and R. Vijayakumar (2017), A novel model-based approach for resistance estimation using rise time and sensorless position control of sub-millimetre shape memory alloy helical spring actuator, Journal of Intelligent Material Systems and Structures 29 (6), 1050-1064.

DOI: 10.1177/1045389x17730911

[3] K. Ikuta, M. Tsukumoto and S. Hirose (1988), Shape memory alloy servo actuator system with electric resistance feedback and Application for active endoscope, Proc. IEEE International Conference Robotic Automation 427 – 30.

DOI: 10.1109/robot.1988.12085

[4] L. C. Brinson (1993), One-dimensional constitutive behaviour of shape memory alloys: thermomechanical derivation with non-constant material functions and redefined martensite internal variable, Journal of Intelligent Material Systems and Structures 4(2), 229.

DOI: 10.1177/1045389x9300400213

[5] I. Spinella and E. Dragoni (2010), Analysis and design of hollow helical springs for shape memory actuators, Journal of Intelligent Material Systems and Structures 21(2), 185-199.

DOI: 10.1177/1045389x09356021

[6] http://www.toki.co.jp/biometal/download/downloadfiles/BMX_Catalog_140217.pdf.
