Effects of Calcium Oxide and Magnesium Oxide Stabilizing Agents on the Critical Transformation Size of Tetragonal Zirconia

Article Preview

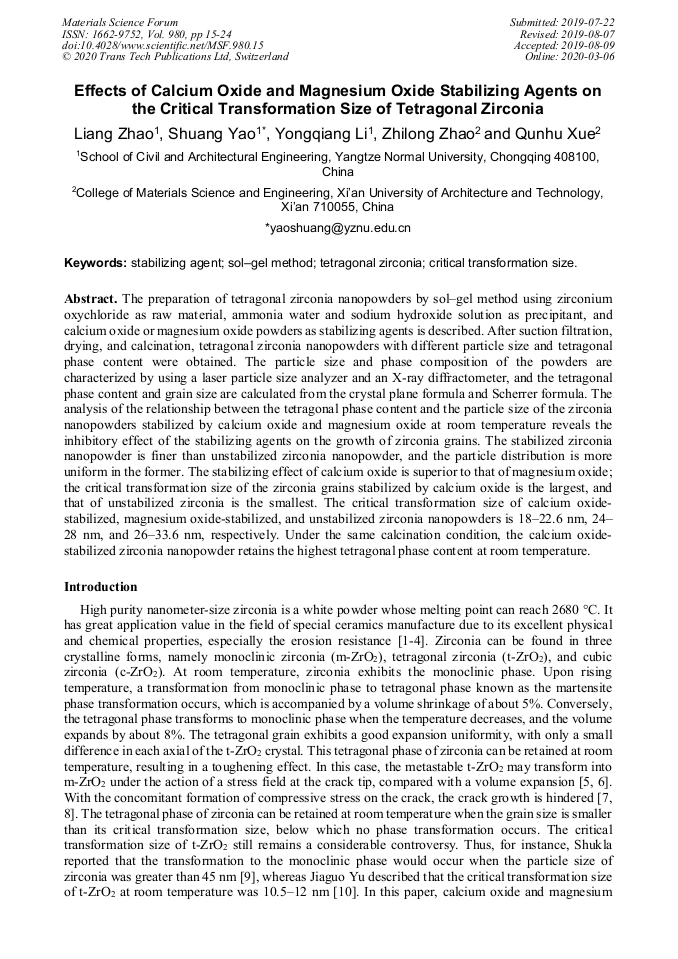

Abstract:

The preparation of tetragonal zirconia nanopowders by sol–gel method using zirconium oxychloride as raw material, ammonia water and sodium hydroxide solution as precipitant, and calcium oxide or magnesium oxide powders as stabilizing agents is described. After suction filtration, drying, and calcination, tetragonal zirconia nanopowders with different particle size and tetragonal phase content were obtained. The particle size and phase composition of the powders are characterized by using a laser particle size analyzer and an X-ray diffractometer, and the tetragonal phase content and grain size are calculated from the crystal plane formula and Scherrer formula. The analysis of the relationship between the tetragonal phase content and the particle size of the zirconia nanopowders stabilized by calcium oxide and magnesium oxide at room temperature reveals the inhibitory effect of the stabilizing agents on the growth of zirconia grains. The stabilized zirconia nanopowder is finer than unstabilized zirconia nanopowder, and the particle distribution is more uniform in the former. The stabilizing effect of calcium oxide is superior to that of magnesium oxide; the critical transformation size of the zirconia grains stabilized by calcium oxide is the largest, and that of unstabilized zirconia is the smallest. The critical transformation size of calcium oxide-stabilized, magnesium oxide-stabilized, and unstabilized zirconia nanopowders is 18–22.6 nm, 24–28 nm, and 26–33.6 nm, respectively. Under the same calcination condition, the calcium oxide-stabilized zirconia nanopowder retains the highest tetragonal phase content at room temperature.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

15-24

Citation:

Online since:

March 2020

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R. Lach, K. Wojciechowski, D. Zientara. Zirconia nano-powder–a useful precursor to dense polycrystals. Ceramics International, 2017, 43(5): 4470-4474.

DOI: 10.1016/j.ceramint.2016.12.097

Google Scholar

[2] A. Łabuz, R. Lach, M. Rączka, B. Wójtowicz, and W. Pyda. Processing and characterization of Ca-TZP nanoceramics. Journal of the European Ceramic Society, 2015, 35(14): 3943-3947.

DOI: 10.1016/j.jeurceramsoc.2015.06.022

Google Scholar

[3] L. Zhao, L. Kang, and S. Yao. Research and application of acoustic emission signal processing technology. IEEE Access, 2019, 22: 984-993.

DOI: 10.1109/access.2018.2886095

Google Scholar

[4] J. X. Zhao, Y. J. Zhang, H. Y. Gong, Y. B. Zhang, X. L. Wang, X. Guo, and Y. J. Zhao, Fabrication of high-performance Y2O3 stabilized hafnium dioxide refractories. Ceramics International, 2015, 41: 5232-5238.

DOI: 10.1016/j.ceramint.2015.01.047

Google Scholar

[5] D. Baghmar. Structural Phase Transitions and Elastic Properties of Zirconia. Phase Transitions, 2013, 86: 811-823.

DOI: 10.1080/01411594.2012.721116

Google Scholar

[6] Q. H. Xue, L. Zhao, D. H. Ding, Y. H. Zhou, and X. Wang. Modification effect of MgO-Al2O3-ZrO2 composite powders on zirconia metering nozzle. Journal of the Chinese Ceramic Society, 2016, 44(3): 474-480.

Google Scholar

[7] P. Li, F. Luo, J. Xu, X. Y. Wang, W. C. Zhou, and D. M. Zhu, Mechanical and Dielectric Properties of Partially Stabilized Zirconia Ceramic. Journal of the Chinese Ceramic Society, 2008, 36: 306-310.

Google Scholar

[8] L. Zhao, Q. H. Xue. Effects of temperature gradient on the damage of zirconia metering nozzle. International Journal of Minerals, Metallurgy, and Materials, 2017, 24(9): 999-1003.

DOI: 10.1007/s12613-017-1488-0

Google Scholar

[9] S. Shukla, S. Seal. Mechanisms of room temperature metastable tetragonal phase stabilisation in zirconia. International Metallurgical Reviews, 2005, 50(1): 45-64.

DOI: 10.1179/174328005x14267

Google Scholar

[10] J. G. Yu, M. Pan. Preparation of ZrO2 ultrafine particles by wet chemical method and study on its phase transition. Chinese Academy of Sciences, 1991, 36(16): 1270-1272.

Google Scholar

[11] Q. H. Xue, L. Zhao, and D. H. Ding, Preparation and Characterization of MgO-Al2O3-ZrO2 Composite Powders. Journal of Synthetic Crystals, 2015, 44(3): 705-710.

Google Scholar

[12] S. H. Song, H. Z. Gu, X. H. Tang. Production of nano-sized yttria-stabilised zirconia powder by means of sol-gel supercritical fluid drying. Journal of Materials Science, 2005, 40(6): 1547-1548.

DOI: 10.1007/s10853-005-0601-3

Google Scholar

[13] L. Zhao, S. Yao, L. Kang, H. Y. Sun, and Q. Huang. Corrosion Mechanism of Calcium Oxide Partially Stabilized Zirconia by an Alkaline Metallurgical Slag. Science of Advance Materials, 2019, 11: 483-488.

DOI: 10.1166/sam.2019.3439

Google Scholar

[14] Z. L. Zhao, Q. H. Xue, L Zhao. Critical Transition Size of Tetragonal Zirconia Prepared with Different Stabilizers. Journal of Synthetic Crystals, 2017, 46(3): 468-474.

Google Scholar
