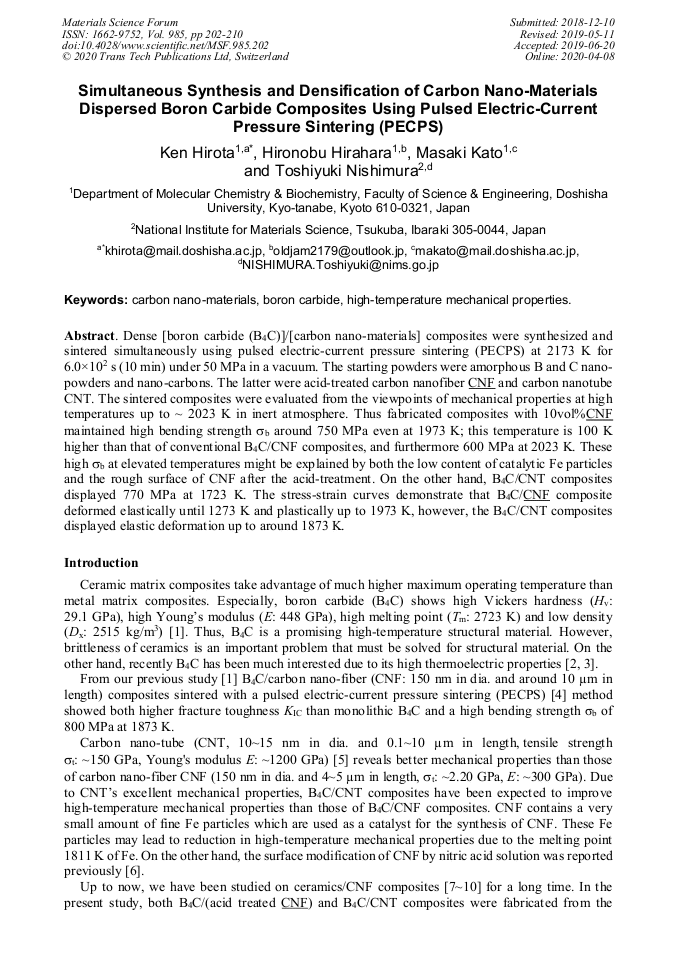

Simultaneous Synthesis and Densification of Carbon Nano-Materials Dispersed Boron Carbide Composites Using Pulsed Electric-Current Pressure Sintering (PECPS)

Abstract:

Dense [boron carbide (B₄C)]/[carbon nanomaterials] composites were synthesized and sintered simultaneously using pulsed electric-current pressure sintering (PECPS) at 2173 K for 6.0×10² s (10 min) under 50 MPa in a vacuum. The starting powders were amorphous B and C nanopowders and nanocarbons. The latter were acid-treated carbon nanofiber CNF and carbon nanotube CNT. The sintered composites were evaluated from the viewpoints of mechanical properties at high temperatures up to ~ 2023 K in inert atmosphere. Thus fabricated composites with 10vol%CNF maintained high bending strength σ_b around 750 MPa even at 1973 K; this temperature is 100 K higher than that of conventional B₄C/CNF composites, and furthermore 600 MPa at 2023 K. These high σ_b at elevated temperatures might be explained by both the low content of catalytic Fe particles and the rough surface of CNF after the acid-treatment. On the other hand, B₄C/CNT composites displayed 770 MPa at 1723 K. The stress-strain curves demonstrate that B₄C/CNF composite deformed elastically until 1273 K and plastically up to 1973 K, however, the B₄C/CNT composites displayed elastic deformation up to around 1873 K.

• Periodical: Materials Science Forum (Volume 985)
• Pages: 202-210
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.985.202
• Online since: April 2020
• Authors: Ken Hirota*, Hironobu Hirahara, Kato Masaki, Toshiyuki Nishimura
• Keywords: Boron Carbide, Carbon Nanomaterials, High-Temperature Mechanical Properties

References

[1] K. Hirota, M. Shima, X. Chen, N. Goto , M. Kato , T. Nishimura, Fabrication of dense B4C/CNF composites having extraordinary high strength and toughness at elevated temperatures, Mater. Sci. Eng. A 628 (2015) 41–49.

DOI: 10.1016/j.msea.2015.01.020

[2] M. Takeda, Advance in thermoelectric research of boron-rich compounds, Materia, 55[7] (2016) 316 -319 (in Japanese).

[3] K. Koumoto, T. Seki, C. H. PAI, H. Yanagitda, CVD synthesis and thermoelectric properties of boron carbide, J. Ceram. Soc. Jpn., 100 [6] (1992) 853-857.

DOI: 10.2109/jcersj.100.853

[4] M. Tokita, Trend in Advanced SPS Spark Plasma System and Technology, J. Soc. Powder Tech. Jpn., 30 (1993) 790–804.

[5] S. Iijima, Helical microtubules of graphitic carbon, Nature, 354 (07 November 1991) 56–58.

DOI: 10.1038/354056a0

[6] I.U. Din, M.S. Shaharun, D. Subbarao, A. Naeem, Surface modification of carbon nanofibers by HNO3 treatment, Ceram. Int., 42 (2016) 966–970.

DOI: 10.1016/j.ceramint.2015.08.054

[7] K. Hirota, Y. Takaura, M. Kato, Y. Miyamoto, Fabrication of carbon nanofiber (CNF)-dispersed Al2O3 composites by pulsed electric-current pressure sintering and their mechanical and electrical properties, J Mater Sci., 42[13] (2007) 4792-4800.

DOI: 10.1007/s10853-006-0830-0

[8] K. Hirota, H. Hara, M. Kato, Mechanical properties of simultaneously synthesized and consolidated carbon nanofiber (CNF)-dispersed SiC composites by pulsed electric-current pressure sintering, Mater. Sci. Eng. A 458 (2007) 216–225.

DOI: 10.1016/j.msea.2006.12.065

[9] K. Hirota, T. Shibata, M. Kato, T. Nishimura, Fabrication of carbon nanofiber (CNF)/SiAlON composites by pulsed electric-current pressure sintering and their mechanical and electrical properties, Materials Science and Technology (2007) 309-320.

DOI: 10.1007/s10853-006-0830-0

[10] K. Hirota, Y. Nakayama, S. Nakane, M. Kato, T. Nishimura, The study on carbon nanofiber (CNF)- dispersed B4C composites, Int. J. Appl. Ceram. Technol., 6[5] (2008) 607-616.

DOI: 10.1111/j.1744-7402.2008.02323.x

[11] F. Tamamushi et al., eds., Boron, Dictionary for Physics and Chemistry, 3rd edition, Iwanami Shoten Publisher, Tokyo (1981)1267.

[12] Information from the Supplier (Mitsubishi Chemical Co. Ltd., Tokyo, Japan). http://www. mkagaku..jp/about/mcc/division/carbon/carbon_b/index.htm.

[13] M. Endo, Y. A. Kim, T. Hayashi, K. Nishimura, T. Matsushita, K. Miyashita, and M. S. Dresselhaus, Vapor-Grown Carbon Fiber (VGCFs)—Basic Properties and Their Battery Application, Carbon, 39 (2001) 1287–1297.

DOI: 10.1016/s0008-6223(00)00295-5

[14] CNF Catalogue from Supplier (Showa Denko K.K.). http://www.sdk.co.jp/ contents/product/index.htm.

[15] Information from a supplier (Arkema,, Graphistrength multiwall carbon nanotube). https://www.arkema.co.jp/jp/products/product-finder/range/Graphinstrength-multiwall-carbon-nanotubes.

[16] Powder Diffraction File, Card No. 35-0798 (B4C), International Centre for Diffraction Data (ICDD), Newtown Square, PA, (1990).

[17] A.E. McHale, Phase Equilibria Diagram, vol. X, The American Ceramic Society, Ohio 43081, (1994).
