Processing the Working Parts of Tools Used in Construction Industry Using High Energy Methods

Abstract:

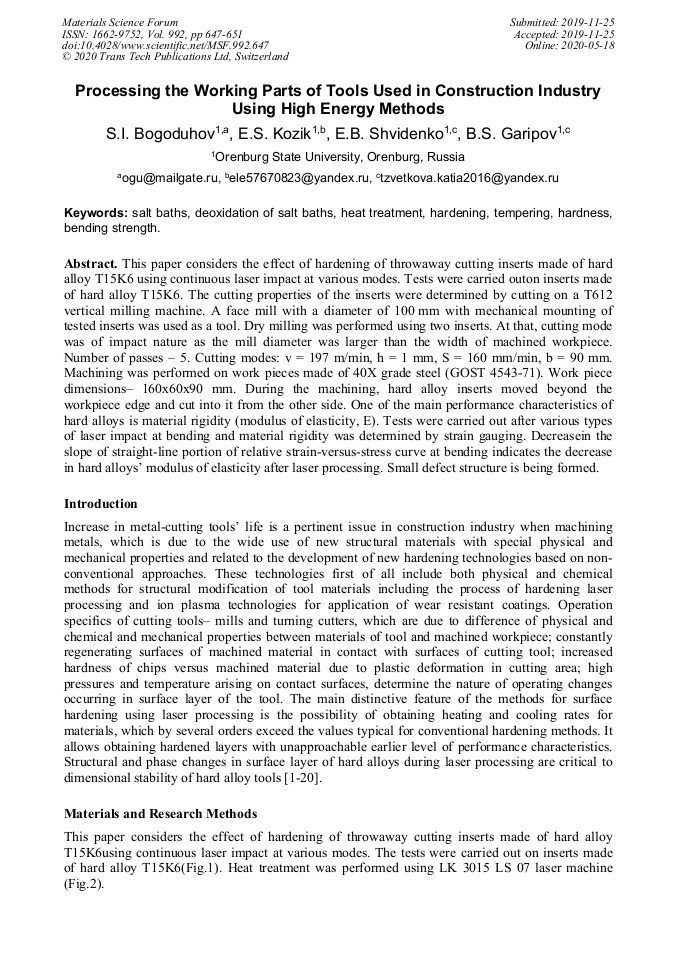

This paper considers the effect of hardening of throwaway cutting inserts made of hard alloy T15K6 using continuous laser impact at various modes. Tests were carried outon inserts made of hard alloy T15K6. The cutting properties of the inserts were determined by cutting on a T612 vertical milling machine. A face mill with a diameter of 100 mm with mechanical mounting of tested inserts was used as a tool.Dry milling was performed using two inserts. At that, cutting mode was of impact natureas the mill diameter was larger than the width of machined workpiece. Number of passes – 5. Cutting modes:v = 197 m/min, h = 1 mm, S = 160 mm/min, b = 90 mm. Machiningwasperformedonworkpieces made of 40X grade steel (GOST 4543-71). Workpiecedimensions– 160x60x90 mm. During the machining, hard alloy inserts moved beyond the workpiece edge and cut into it from the other side. One of the main performance characteristics of hard alloys is material rigidity (modulus of elasticity, Е). Tests were carried out after various types of laser impact at bending and material rigidity was determined by strain gauging. Decreasein the slopeofstraight-lineportionofrelativestrain-versus-stress curve at bending indicates the decrease in hard alloys’ modulus of elasticity after laser processing. Small defect structure is being formed.

• Periodical: Materials Science Forum (Volume 992)
• Pages: 647-651
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.992.647
• Online since: May 2020
• Authors: S.I. Bogodukhov*, E.S. Kozik, E.B. Shvidenko, B.S. Garipov
• Keywords: Bending Strength, Deoxidation of Salt Baths, Hardening, Hardness, Heat Treatment, Salt Baths, Tempering

References

[1] Li Zhang, Yuan-Jie Wang, Yu Xian- wang, Shu. Chen, Xiong Xiang-Jin, Crack propagation characteristic and toughness of functionally graded WC-CO cemented carbide, Int. J. Refract. Met. Hard Mater. 26 (2008) 295–300.

DOI: 10.1016/j.ijrmhm.2007.07.002

[2] I.V. Chichkovskii, Calculation of heat fields during processing of KPI materials in the MATHCAD environment, Samara: SGY. (2003) 28–35.

[3] V.T. Colovcan, Some analytical consequences of experiment data on properties of WC–Co hard metals, Int J. Refract. Met. Hard Mater. 26 (2008) 301–305.

DOI: 10.1016/j.ijrmhm.2007.07.001

[4] Zhixing, Guo, Ji. Xiong, Mei Yang, Cijin Jiang, WC–TiC–Ni cemented carbide with enhanced properties, J. Alloys and Compnd. 465 (2008) 157–162.

DOI: 10.1016/j.jallcom.2007.10.132

[5] S.S Kiparisov, Ia.V. Levinskii, Nitriding of refractory metals, M.: Metallurgy, (1972).

[6] V.S. Panov, Technology and properties of sintered hard alloys and their products, М.: MISIS, (2001).

[7] Yu.V. Lakhotkin, Chemical deposition of nanostructured tungsten and tungsten-alloy coatings from gas phase, Prot. Met. Phys. Chem. 44 (2008) 319–332.

DOI: 10.1134/s0033173208040024

[8] Z.Zh. Berov, B.S. Karamurzov, A.Kh. Tlibekov, M.M. Yakhutlov, Selection of a coating material for diamond grits and optimization of its thickness. J. Superhard Mater. 5 (1998) 55–61.

[9] I Endler, A. Leonhardt, H.J. Scheibe, R Born, Interlayers for diamond deposition on tool materials, Diamond Relat, Mater. 5 (1996) 299–303.

DOI: 10.1016/0925-9635(95)00352-5

[10] L.J. De Oliveira, S.C. Cabral, M. Filgueira, Study hot pressed Fe-diamond composites graphitization, Int. J. Refract. Met. Hard Mater. 35 (2012) 228–234.

DOI: 10.1016/j.ijrmhm.2012.03.015

[11] J. Hell, M. Chirtoc, C. Eisenmenger-Sittner, H. Hutter, N. Kornfeind, P. Kijamnajsuk, M. Kitzmantel, E. Neubauer, K Zellhofer, Characterisation of sputter deposited niobium and boron interlayer in the copper–diamond system, Surf. Coat. Technol. 208 (2012) 24–31.

DOI: 10.1016/j.surfcoat.2012.07.068

[12] W.Q. Qiu, Z.W. Liu, L.X. He, D.C. Zeng, Y.-W. Mai, Improved interfacial adhesion between diamond film and copper substrate using a Cu(Cr)–diamond composite interlayer, Mater. Lett. 81 (2012) 155–157.

DOI: 10.1016/j.matlet.2012.05.015

[13] Zh. Ma, J. Wang, Q. Wu, Ch. Wang, Preparation of flat adherent diamond films on thin copper substrates using a nickel interlayer, Surf. Coat. Technol. 155 (2002) 96–101.

DOI: 10.1016/s0257-8972(02)00038-5

[14] Y. Huang, H. Xiao, Zh. Ma, J. Wang, Gao. Pengzhao, Effects of Cu and Cu, Ti interlayer on adhesion of diamond film. Surf. Coat. Technol. 202 (2007) 180–184.

DOI: 10.1016/j.surfcoat.2007.05.014

[15] Z. Zhang, D.L. Chen, Contribution of Orowan strengthening effect in particulate-reinforced metal matrix nanocomposites, Mater. Sci. Eng. A. 483 (2008)148–152.

DOI: 10.1016/j.msea.2006.10.184

[16] А.A. Zaitsev, V.V. Kurbatkina, E.A. Levashov, Features of the effect of nanodispersed additives on the sintering process and properties of powdered cobalt alloys, Russ. J. Non-Ferr. Met. 49 (2008) 120–126.

DOI: 10.3103/s1067821208020107

[17] А.A. Zaitsev, V.V. Kurbatkina, E.A. Levashov, Features of the influence of nanodispersed additions on the process of and properties of the Fe–Co–Cu–Sn sintered alloy, Russ. J. Non-Ferr. Met. 49 (2008) 414–419.

DOI: 10.3103/s1067821208050180

[18] E.A. Levashov, V.V. Kurbatkina, A.A. Zaytsev, Improved mechanical and tribological properties of metal-matrix composites dispersion-strengthened by nanoparticles, Materials. 3 (2010) 97–109.

DOI: 10.3390/ma3010097

[19] A.A. Zaitsev, D.A. Sidorenko, E.A. Levashov, V.V. Kurbatkina, V.A. Andreev, S.I. Rupasov, P.V. Sevast'yanov, Diamond tolls in metal bonds dispersion-strengthened with nanosized particles for cutting highly reinforced concrete, J. Superhard Mater. 34 (2010) 423–431.

DOI: 10.3103/s1063457610060080

[20] S.I. Bohodukhiv, Materialovedenie: uchebnik, М.: Machinostroenie, (2015).
