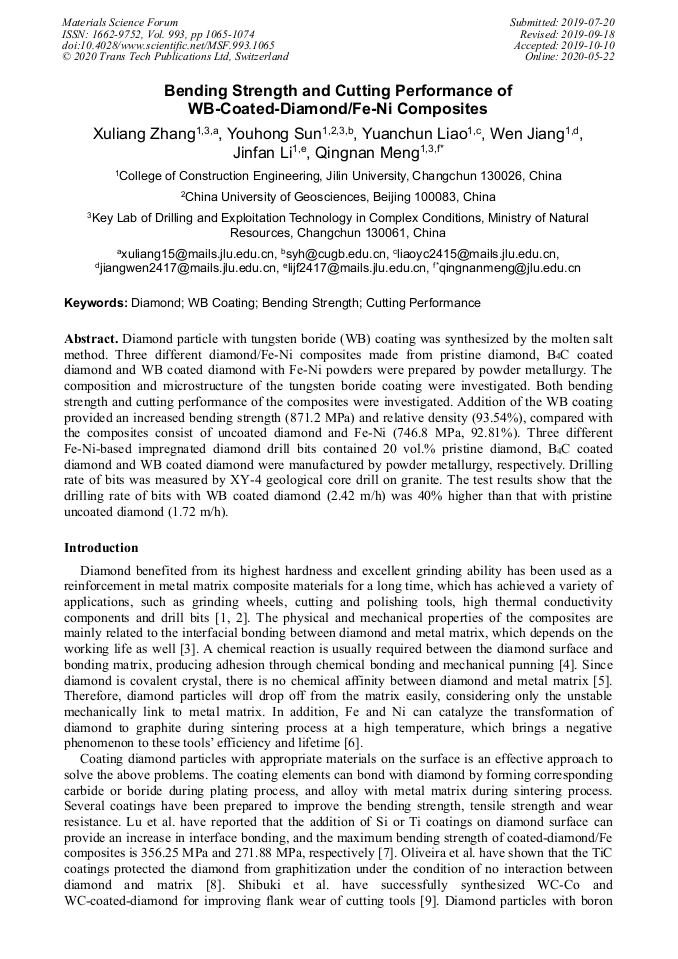

Bending Strength and Cutting Performance of WB-Coated-Diamond/Fe-Ni Composites

Abstract:

Diamond particle with tungsten boride (WB) coating was synthesized by the molten salt method. Three different diamond/Fe-Ni composites made from pristine diamond, B4C coated diamond and WB coated diamond with Fe-Ni powders were prepared by powder metallurgy. The composition and microstructure of the tungsten boride coating were investigated. Both bending strength and cutting performance of the composites were investigated. Addition of the WB coating provided an increased bending strength (871.2 MPa) and relative density (93.54%), compared with the composites consist of uncoated diamond and Fe-Ni (746.8 MPa, 92.81%). Three different Fe-Ni-based impregnated diamond drill bits contained 20 vol.% pristine diamond, B4C coated diamond and WB coated diamond were manufactured by powder metallurgy, respectively. Drilling rate of bits was measured by XY-4 geological core drill on granite. The test results show that the drilling rate of bits with WB coated diamond (2.42 m/h) was 40% higher than that with pristine uncoated diamond (1.72 m/h).

• Periodical: Materials Science Forum (Volume 993)
• Pages: 1065-1074
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.1065
• Online since: May 2020
• Authors: Xu Liang Zhang*, You Hong Sun, Yuan Chun Liao, Wen Jiang, Jin Fan Li, Qing Nan Meng
• Keywords: Bending Strength, Cutting Performance, Diamond, WB Coating

References

[1] Sun Y., Wu H., Li M., Meng Q., Gao K., Lu X., Liu B. The Effect of ZrO(2) Nanoparticles on the Microstructure and Properties of Sintered WC-Bronze-Based Diamond Composites [J]. Materials (Basel), 2016, 9(5).

DOI: 10.3390/ma9050343

[2] Tönshoff H. K., Hillmann-Apmann H., Asche J. Diamond tools in stone and civil engineering industry: cutting principles, wear and applications [J]. Diamond and Related Materials, 2002, 11(3): 736-741.

DOI: 10.1016/s0925-9635(01)00561-1

[3] Weidenmann K. A., Tavangar R., Weber L. Mechanical behaviour of diamond reinforced metals [J]. Materials Science and Engineering: A, 2009, 523(1): 226-234.

DOI: 10.1016/j.msea.2009.05.069

[4] Sun Z. Q., Jiang Z. A., Lin Q., Yu T. Study on the influence of WC W and Fe on the wear resistance of the Co-based matrix of diamond tools; proceedings of the ICMREE2011 - Proceedings 2011 International Conference on Materials for Renewable Energy and Environment, F, 2011 [C].

DOI: 10.1109/icmree.2011.5930734

[5] Yu-Zan Hsieh Shun-Tian Lin. Diamond tool bits with iron alloys as the binding matrices [J]. Materials Chemistry and Physics, 2001, 72(2001): 121-125.

DOI: 10.1016/s0254-0584(01)00419-9

[6] Dai He, Wang Limin, Zhang Jingguo, Liu Yibo, Wang Yuefa, Wang Lei, Wan Xinliang. Iron based partially pre-alloyed powders as matrix materials for diamond tools [J]. Powder Metallurgy, 2015, 58(2): 83-86.

DOI: 10.1179/0032589915z.000000000220

[7] Lu Jing, Wang Yan Hui, Zang Jian Bing, Shan Shu Xian. Effect of Si and Ti Coating on Interface Bonding between Diamond and Fe-Based Metal Bond [J]. Key Engineering Materials, 2007, 359-360: 15-18.

DOI: 10.4028/www.scientific.net/kem.359-360.15

[8] De Oliveira L. J., Cabral S. C., Filgueira M. Influence of a TiC coating on diamonds [J]. Materialwissenschaft und Werkstofftechnik, 2014, 45(2): 114-122.

DOI: 10.1002/mawe.201400129

[9] Shibuki K , Sasaki K , Yagi M , et al. Diamond coating on WC-Co and WC for cutting tools[J]. Surface & Coatings Technology, 1994, 68-69(none):369-373.

DOI: 10.1016/0257-8972(94)90187-2

[10] Sun Youhong, Meng Qingnan, Qian Ming, Liu Baochang, Gao Ke, Ma Yinlong, Wen Mao, Zheng Weitao. Enhancement of oxidation resistance via a self-healing boron carbide coating on diamond particles [J]. Scientific reports, 2016, 6: 20198.

DOI: 10.1038/srep20198

[11] Sun Youhong, He Linkai, Zhang Chi, Meng Qingnan, Liu Baochang, Gao Ke, Wen Mao, Zheng Weitao. Enhanced tensile strength and thermal conductivity in copper diamond composites with B4C coating [J]. Scientific Reports, 2017, 7.

DOI: 10.1038/s41598-017-11142-y

[12] Li M., Sun Y., Meng Q., Wu H., Gao K., Liu B. Fabrication of Fe-Based Diamond Composites by Pressureless Infiltration [J]. Materials (Basel), 2016, 9(12).

DOI: 10.3390/ma9121006

[13] Sun Youhong, Zhang Chi, Wu Jinhao, Meng Qingnan, Liu Baochang, Gao Ke, He Linkai. Enhancement of oxidation resistance via titanium boron carbide coatings on diamond particles [J]. Diamond and Related Materials, 2019, 92: 74-80.

DOI: 10.1016/j.diamond.2018.12.019

[14] Shi X. L., Shao G. Q., Duan X. L., Xiong Z., Yang H. The effect of tungsten buffer layer on the stability of diamond with tungsten carbide–cobalt nanocomposite powder during spark plasma sintering [J]. Diamond and Related Materials, 2006, 15(10): 1643-1649.

DOI: 10.1016/j.diamond.2006.01.021

[15] De Oliveira Luciano José, Cabral Stênio Cavalier, Filgueira Marcello. Study hot pressed Fe-diamond composites graphitization [J]. International Journal of Refractory Metals and Hard Materials, 2012, 35: 228-234.

DOI: 10.1016/j.ijrmhm.2012.03.015

[16] Cao Pinlu, Yang Cheng, Zheng Zhichuan, Wang Rusheng, Zhang Nan, Liu Chunpeng, Hu Zhengyi, Talalay Pavel. Low-load diamond drill bits for subglacial bedrock sampling [J]. Annals of Glaciology, 2014, 55(68): 124-130.

DOI: 10.3189/12014aog68aool

[17] Chang Rui, Zang Jianbing, Wang Yanhui, Yu Yiqing, Lu Jing, Xu Xipeng. Preparation of the gradient Mo layers on diamond grits by spark plasma sintering and their effect on Fe-based matrix diamond composites [J]. Journal of Alloys and Compounds, 2017, 695: 70-75.

DOI: 10.1016/j.jallcom.2016.10.172

[18] Aizenshtein M, Mizrahi I, Froumin N, Hayun S, Dariel Mp, Frage N. Interface interaction in the B4C/(Fe–B–C) system [J]. Materials Science and Engineering: A, 2008, 495(1-2): 70-74.

DOI: 10.1016/j.msea.2007.06.100

[19] Dai Qiu Lian, Xu Xi Peng, Wang Yung Cheng. An Investigation into the Effects of Rare Earth on the Properties of Fe-Based Diamond Composites [J]. Key Engineering Materials, 2001, 202-203: 345-348.

DOI: 10.4028/www.scientific.net/kem.202-203.345

[20] Boland James N., Li Xing S. Microstructural Characterisation and Wear Behaviour of Diamond Composite Materials [J]. Materials, 2010, 3(2): 1390-1419.

DOI: 10.3390/ma3021390
