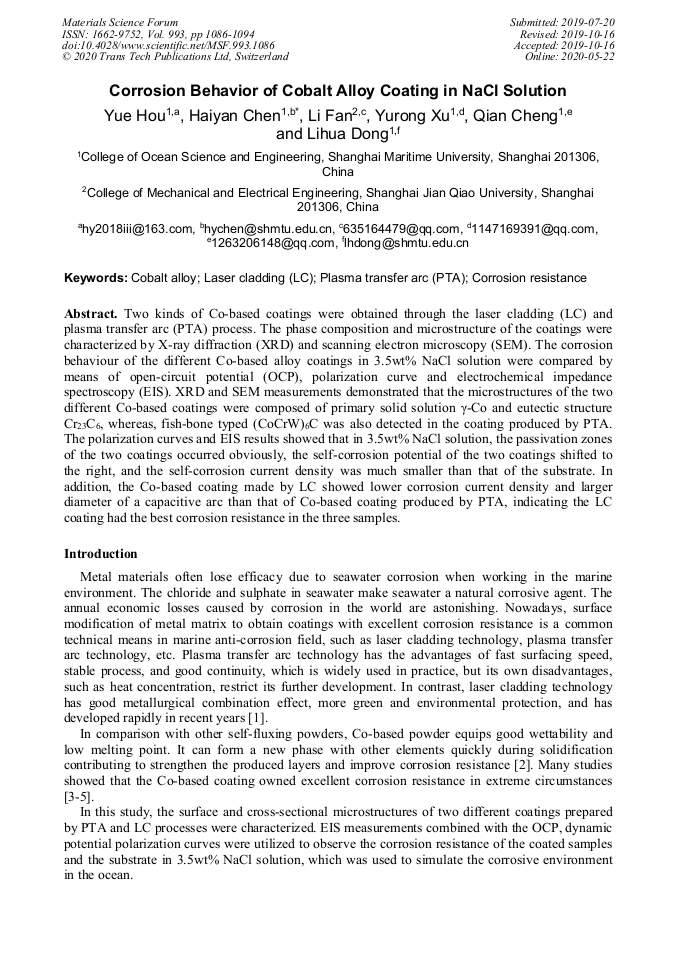

Corrosion Behavior of Cobalt Alloy Coating in NaCl Solution

Abstract:

Two kinds of Co-based coatings were obtained through the laser cladding (LC) and plasma transfer arc (PTA) process. The phase composition and microstructure of the coatings were characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The corrosion behaviour of the different Co-based alloy coatings in 3.5wt% NaCl solution were compared by means of open-circuit potential (OCP), polarization curve and electrochemical impedance spectroscopy (EIS). XRD and SEM measurements demonstrated that the microstructures of the two different Co-based coatings were composed of primary solid solution γ-Co and eutectic structure Cr₂₃C₆, whereas, fish-bone typed (CoCrW)₆C was also detected in the coating produced by PTA. The polarization curves and EIS results showed that in 3.5wt% NaCl solution, the passivation zones of the two coatings occurred obviously, the self-corrosion potential of the two coatings shifted to the right, and the self-corrosion current density was much smaller than that of the substrate. In addition, the Co-based coating made by LC showed lower corrosion current density and larger diameter of a capacitive arc than that of Co-based coating produced by PTA, indicating the LC coating had the best corrosion resistance in the three samples.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 1086-1094
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.1086
• Online since: May 2020
• Authors: Yue Hou, Hai Yan Chen*, Li Fan, Yu Rong Xu, Qian Cheng, Li Hua Dong
• Keywords: Cobalt Alloy, Corrosion Resistance, Laser Cladding (LC), Plasma Transfer Arc (PTA)

References

[1] K. Li, D. Li, Microstructure evolution and mechanical properties of multiple-layer laser cladding coating of 308L stainless steel, Appl. Surf. Sci. 340 (2015) 143-150.

DOI: 10.1016/j.apsusc.2015.02.171

[2] E. Diaz, J.M. Amado, Comparative study of Co-based alloys in repairing low Cr-Mo steel components by laser cladding, Physics Procedia. 39 (2012) 368-375.

DOI: 10.1016/j.phpro.2012.10.050

[3] X.D. Men, F.H. Tao, Erosion behavior and surface cracking mechanism of Co-based coating deposited via PTA under high-speed propellant airflow, Surf. Coat. Tech. 372 (2019) 369-375.

DOI: 10.1016/j.surfcoat.2019.05.049

[4] M. Behazin, M.C. Biesinger, J.J. Noël, J.C. Wren, Comparative study of film formation on high-purity co and Stellite-6: probing the roles of a chromium oxide layer and gamma radiation, Corros. Sci. 63 (2012) 40-50.

DOI: 10.1016/j.corsci.2012.05.007

[5] L. Liu, S. Wu, Effects of alloyed Mn on the oxidation behavior of a Co-Ni-Cr-Fe alloy between 1050 and 1250°C, Corros. Sci. 104 (2016) 236-247.

DOI: 10.1016/j.corsci.2015.12.016

[6] R. Liu, J.H. Yao, Relations of chemical composition to solidification behavior and associated microstructure of stellite alloys, Metallogr. Microstruct. Anal. 43 (2015) 146-157.

DOI: 10.1007/s13632-015-0196-2

[7] H.J. Kim, Y.J. Kim, Wear and corrosion resistance of PTA Weld Surfaced Ni and Co base alloy layers, Surf. Eng. 6(1999) 495-501.

DOI: 10.1179/026708499101516911

[8] A. Gholipour, M. Shamanian, Microstructure and wear behavior of stellite 6 cladding on 17-4 PH stainless steel, J. Alloy. Compd. 509 (2011) 4905-4909.

DOI: 10.1016/j.jallcom.2010.09.216

[9] S.A. Ali Delaware, A. Motallebzadeh, Influence of laser surface melting on the characteristics of Stellite 12 plasma transferred arc hardfacing deposit, Surf. Coat. Tech. 317 (2017) 110-116.

DOI: 10.1016/j.surfcoat.2017.03.051

[10] M. Couto, S. Dosta, J.M. Guilemany, Comparison of the mechanical and electrochemical properties of WC-17 and 12Co coatings onto Al7075-T6 obtained by high-velocity oxy-fuel and cold gas spraying, Surf. Coat. Tech. 268 (2014) 180-189.

DOI: 10.1016/j.surfcoat.2014.04.034

[11] F.S. da Silva, N. Cinca, Corrosion behavior of WC-Co coatings deposited by cold gas spray onto AA 7075-T6, Corros. Sci. 136 (2018) 231-243.

DOI: 10.1016/j.corsci.2018.03.010

[12] A. Kocijan, D. K. Merl, M. Jenko, The corrosion behavior of austenitic and duplex stainless steels in artificial saliva with the addition of fluoride, Corros. Sci. 53 (2011) 776-783.

DOI: 10.1016/j.corsci.2010.11.010
