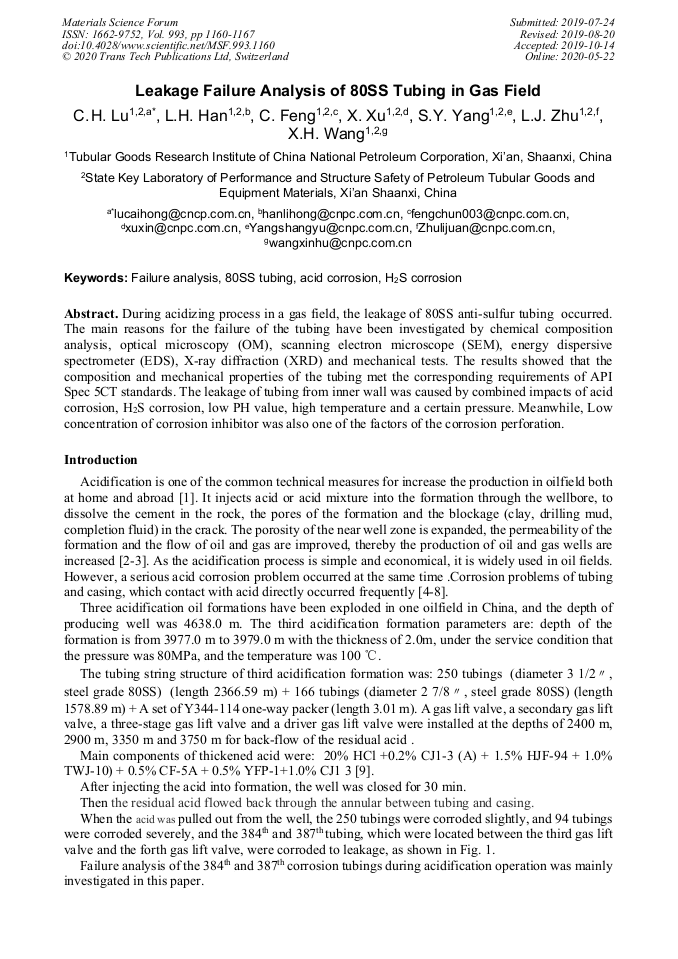

Leakage Failure Analysis of 80SS Tubing in Gas Field

Abstract:

During acidizing process in a gas field, leakage of 80SS anti-sulfur tubing occurred.The main reasons for failure of the tubing have been investigated based on analysis techniques of chemical composition analysis,Optical Microscopy (OM), Scanning Electron Microscope (SEM), Energy Dispersive Spectrometer (EDS) , X-ray Diffraction (XRD) and mechanical test. The results show that composition and mechanical properties of the tubing were all in accordance with the corresponding requirements of API Spec 5CT standards. Furthermore,leakage of tubing from inner wall was caused by combined impacts of acid corrosion, H₂S corrosion, low PH value, high temperature and a certain pressure. Meanwhile, Low concentration of corrosion inhibitor was also one of the factors of corrosion perforation.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 1160-1167
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.1160
• Online since: May 2020
• Authors: Cai Hong Lu*, Li Hong Han, Chun Feng, Xin Xu, Shang Yu Yang, Li Juan Zhu, Xin Hu Wang
• Keywords: 80SS Tubing, Acid Corrosion, Failure Analysis, H₂S Corrosion

References

[1] Luo Jingqi. Oil well acidizing principle. Beijing: Petroleum Industry Press, (1983).

[2] Wei Yingjie, Yin Bencai, Zhang Hongxin. Research and application of acidificatoin fracturing in high temperature wells. Special Oil and Gas Reservoirs. 2004.11(2):49-52.

[3] Zhu S D, Wei J F, Cai R. Corrosion failure analysis of high grade super13Cr-110 tubing string. Engineering Failure Analysis.2011,18(8):2222-2231.

DOI: 10.1016/j.engfailanal.2011.07.017

[4] Li Yan, Xie Junfeng, Chang Zeliang. Reasons for Tube corrosion in a gas well of Tarim oilfield. Corrosion and protection. 2016.37(10):861-864.

[5] Fu AQ, Geng LY, Li GS. Corrosion Failure Analysis of an Tubing Used in a Western Oilfield. Corrosion and Protection.2013,34(7):645-648.

[6] Zhang S S, Zhao G X, Lv X H. Corrosion Behavior of TP140 in Simulated Oilfield Fresh Acid and Spent Acid Environments. Corrosion and Protection.2014.35(1):28-32.

[7] Liu Z Z, Wang Y, Wang J. Research on Corrosion Behavior of Release Sewage of Acidizing in the Exploration of LD10-1 Oilfield. Corrosion Research.2013.27(06):34-38.

[8] Zhang Chunxia, Yang Jianqiang and Zhang Zhonghua. Corrosion behavior of D type inclusion in acid solution for 00Cr13Ni5Mo2. Technology of Baosteel.2015.4:18-21.

[9] Liu G L, Sun H. Technology research and equipment development of acid gel fracturing in carbonate gas formation. Chinese oilfield chemicals.Specialissue:56-64.
