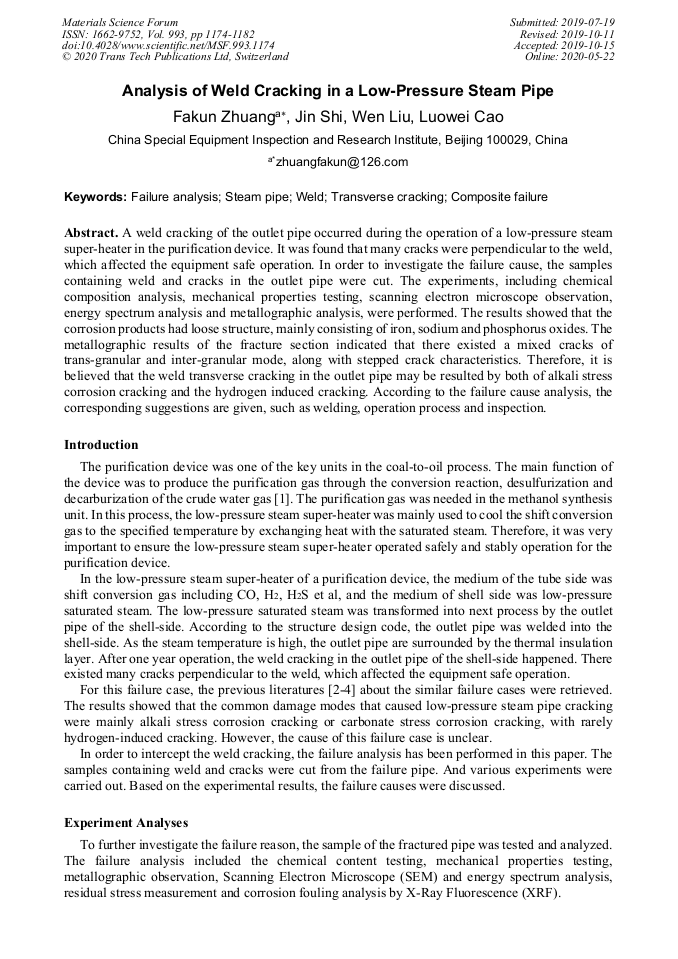

Analysis of Weld Cracking in a Low-Pressure Steam Pipe

Abstract:

A weld cracking of the outlet pipe occurred during the operation of a low-pressure steam super-heater in the purification device. It was found that many cracks were perpendicular to the weld, which affected the equipment safe operation. In order to investigate the failure cause, the samples containing weld and cracks in the outlet pipe were cut. The experiments, including chemical composition analysis, mechanical properties testing, scanning electron microscope observation, energy spectrum analysis and metallographic analysis, were performed. The results showed that the corrosion products had loose structure, mainly consisting of iron, sodium and phosphorus oxides. The metallographic results of the fracture section indicated that there existed a mixed cracks of trans-granular and inter-granular mode, along with stepped crack characteristics. Therefore, it is believed that the weld transverse cracking in the outlet pipe may be resulted by both of alkali stress corrosion cracking and the hydrogen induced cracking. According to the failure cause analysis, the corresponding suggestions are given, such as welding, operation process and inspection.

• Periodical: Materials Science Forum (Volume 993)
• Pages: 1174-1182
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.993.1174
• Online since: May 2020
• Authors: Fa Kun Zhuang*, Jin Shi, Wen Liu, Luo Wei Cao
• Keywords: Composite Failure, Failure Analysis, Steam Pipe, Transverse Cracking, Weld

References

[1] S.Z. Cui, J.X. Hu, Application of experion PKS system on purification Unit, Inner Mongolia Petrochem. Indus. 12 (2012) 30-32.

[2] W. Han, J. Zhao, C. Wang, et al. Failure analysis of the steam pipeline. Pipeline Technique and Equipment, 2012, 3: 55-56.

[3] N. Xu. Analysis of butt weld fracture of low pressure steam pipeline withφ377mm. Petro-Chemical Equipment Technology, 1999, 20(4):52- 54.

[4] GB/T 30579-2014, Damage modes indentification for pressure equipments.

[5] GB/T 9711-2011, Petroleum and natural gas industries-Steel pipe for pipeline transportation systems.

[6] GB/T 711-2008, Hot-rolled quality carbon structural steel plates, sheets and wide strips.

[7] G.Q. Qu, S.H. Wang, Influence of the content of Mn on the low-temperature flexibility of 16MnDR welding joint, Mod. Welding Tech. 11 (2011) 50-50.

[8] L.P. Song, R.L. Sun, W. Gu, et al, Microstructure and mechanical properties of submerged arc weld seam of 2.25Cr-1Mo-0.25V steel for hydrogenation reactors, Mater. For Mech. Eng. 40 (2016) 5-9.

[9] DIN 50150-1976. Testing of Steel and Cast Steel, Conversion Table for Vickers Hardness, Brinell Hardness, Rockwell Hardness and Tensile Strength.

DOI: 10.1520/e0048

[10] GB150-2011, Pressure vessels.

[11] C.Y. Yu, The discussion on hydrogen embrittlement in metal materials, Total corrosion con. 5 (2015) 17-22.
