Effect of the 0.1% Sc Addition on the Texture Development and Mechanical Properties in Al-Zn-Mg-Cu-Mn Alloy

No Jin Park; S.J. Jin; C.W. Jea; Seong Taek Lim; Yong Yun Lee; Dong-Seok Chung

doi:10.4028/www.scientific.net/SSP.105.213

Paper Titles

Calculation of Magnetization and Phase Equilibrium in Fe-C Binary System under a Magnetic Field
p.187

Deformation Textures in FCC Metals Subjected to Frictional and to Abrasive Wear
p.195

Influence of Starting Textures on the Development of Texture and Microstructure during Large Strain Hot Rolling of Pure Magnesium
p.201

Regular Substructure Inhomogeneity of Textured Materials by the Example of Rolled Ti-Ni Single Crystals
p.207

Effect of the 0.1% Sc Addition on the Texture Development and Mechanical Properties in Al-Zn-Mg-Cu-Mn Alloy
p.213

Dislocation Activity and Slip Analysis Contributing to Grain Boundary Sliding and Damage during Thermomechanical Fatigue in Dual Shear Lead-Free Solder Joint Specimens
p.219

The Effect of Texture on the Serrated Flow in Peak-Aged 2090 Al-Li Alloy
p.227

Cross-Sectional Texture Gradients in Interstitial Free Steels Processed by Accumulated Roll Bonding
p.233

Microstructure and Texture of Shear Bands in Cold Rolled Silicon Steel Single Crystals of Goss Orientation
p.239

HomeSolid State PhenomenaSolid State Phenomena Vol. 105Effect of the 0.1% Sc Addition on the Texture...

Effect of the 0.1% Sc Addition on the Texture Development and Mechanical Properties in Al-Zn-Mg-Cu-Mn Alloy

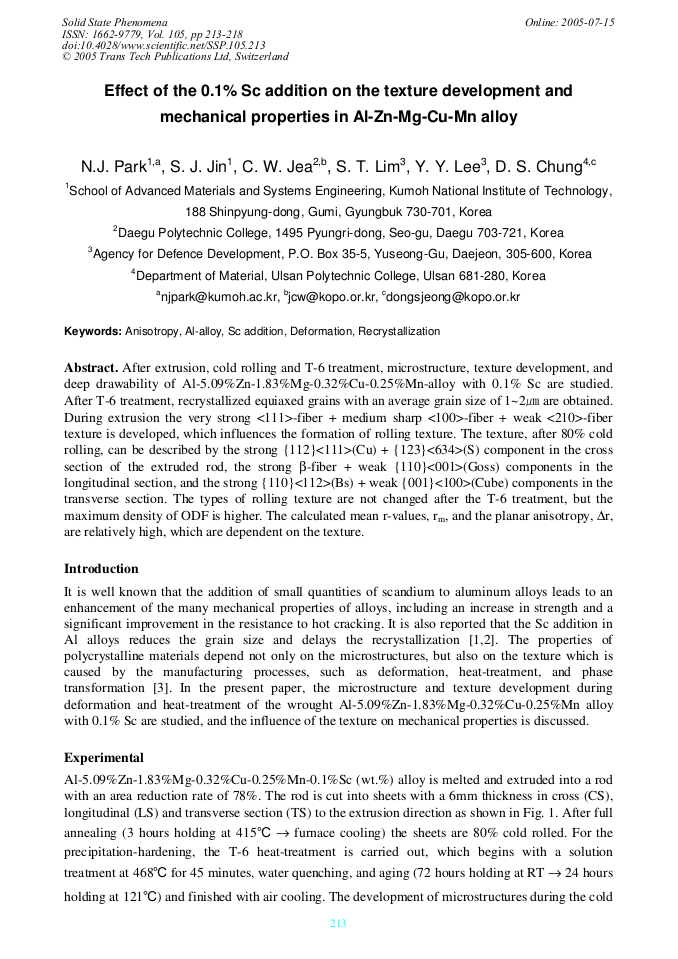

Abstract:

After extrusion, cold rolling and T-6 treatment, microstructure, texture development, and deep drawability of Al-5.09%Zn-1.83%Mg-0.32%Cu-0.25%Mn-alloy with 0.1% Sc are studied. After T-6 treatment, recrystallized equiaxed grains with an average grain size of 1~2㎛ are obtained. During extrusion the very strong <111>-fiber + medium sharp <100>-fiber + weak <210>-fiber texture is developed, which influences the formation of rolling texture. The texture, after 80% cold rolling, can be described by the strong {112}<111>(Cu) + {123}<634>(S) component in the cross section of the extruded rod, the strong b-fiber + weak {110}<001>(Goss) components in the longitudinal section, and the strong {110}<112>(Bs) + weak {001}<100>(Cube) components in the transverse section. The types of rolling texture are not changed after the T-6 treatment, but the maximum density of ODF is higher. The calculated mean r-values, rm, and the planar anisotropy, Dr, are relatively high, which are dependent on the texture.
