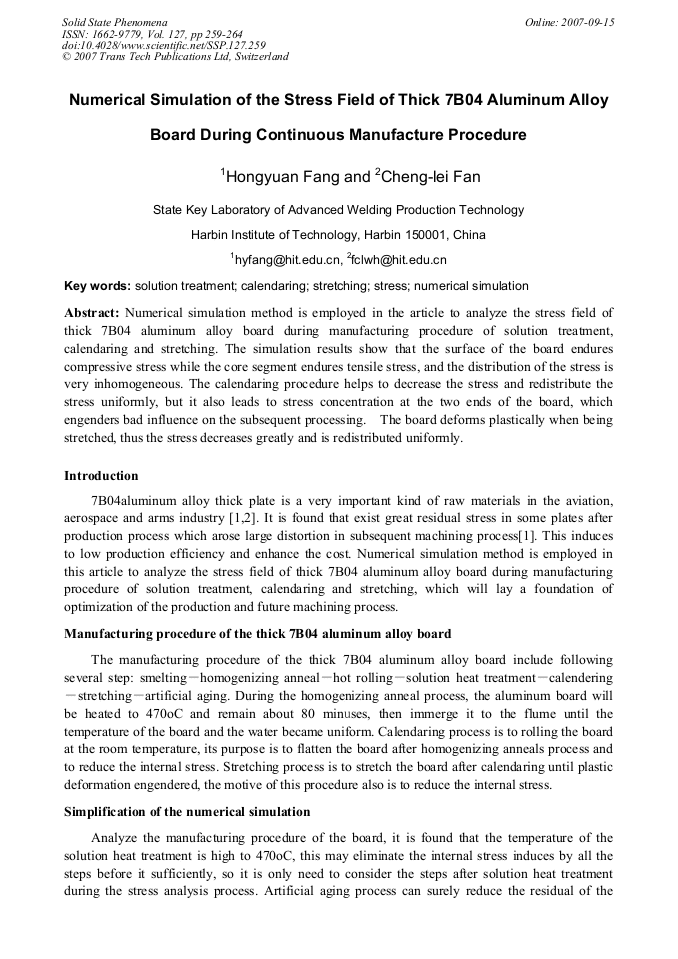

Numerical Simulation of the Stress Field of Thick 7B04 Aluminum Alloy Board during Continuous Manufacture Procedure

Abstract:

Numerical simulation method is employed in the article to analyze the stress field of thick 7B04 aluminum alloy board during manufacturing procedure of solution treatment, calendaring and stretching. The simulation results show that the surface of the board endures compressive stress while the core segment endures tensile stress, and the distribution of the stress is very inhomogeneous. The calendaring procedure helps to decrease the stress and redistribute the stress uniformly, but it also leads to stress concentration at the two ends of the board, which engenders bad influence on the subsequent processing. The board deforms plastically when being stretched, thus the stress decreases greatly and is redistributed uniformly.

• Periodical: Solid State Phenomena (Volume 127)
• Pages: 259-264
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.127.259
• Online since: September 2007
• Authors: Hong Yuan Fang, Cheng Iei Fan
• Keywords: Calendaring, Numerical Simulation, Solution Treatment, Stress, Stretching

References

[1] Zhou Hongzhang. Manufacture of the Prestretching Aluminum Alloy Board. Aluminum Manufacture, 1999, 22(8): 16-19.

[2] Wang Zhutang. Manufacture Manual of Aluminum Alloy. Central South University of Technology Press, (1989).
