An Ultra-High Q Silicon Cantilever Resonator for Thin Film Internal Friction and Young's Modulus Measurements

Abstract:

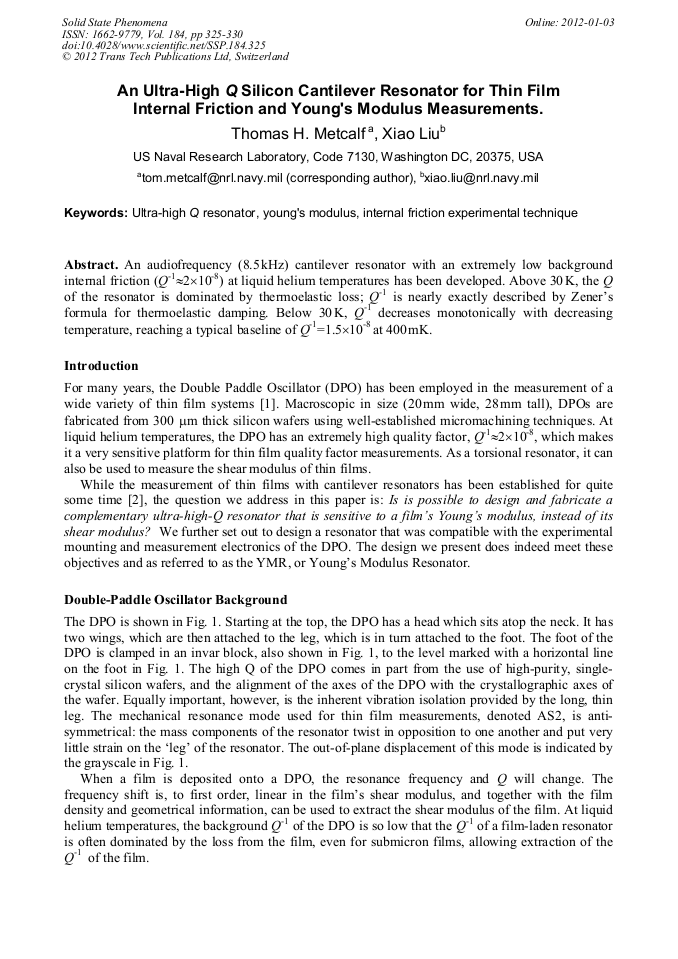

An audiofrequency (8.5 kHz) cantilever resonator with an extremely low background internal friction (Q^-1≈2×10^-8) at liquid helium temperatures has been developed. Above 30 K, the Q of the resonator is dominated by thermoelastic loss; Q^-1 is nearly exactly described by Zener’s formula for thermoelastic damping. Below 30 K, Q^-1decreases monotonically with decreasing temperature, reaching a typical baseline of Q^-1=1.5×10^-8at 400 mK.
