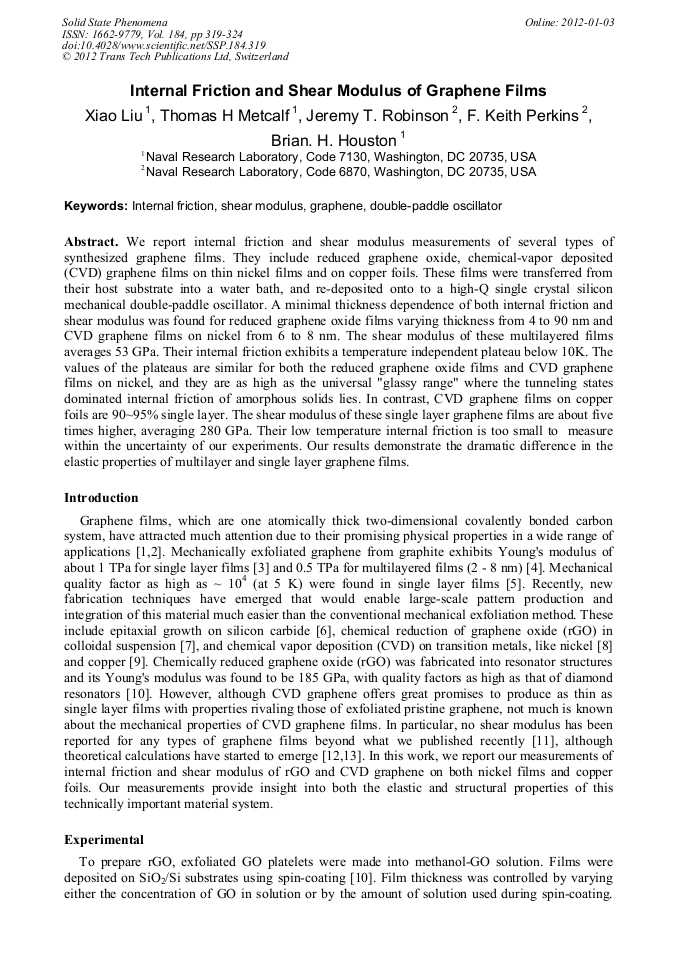

Internal Friction and Shear Modulus of Graphene Films

Abstract:

We report internal friction and shear modulus measurements of several types of synthesized graphene films. They include reduced graphene oxide, chemical-vapor deposited (CVD) graphene films on thin nickel films and on copper foils. These films were transferred from their host substrate into a water bath, and re-deposited onto to a high-Q single crystal silicon mechanical double-paddle oscillator. A minimal thickness dependence of both internal friction and shear modulus was found for reduced graphene oxide films varying thickness from 4 to 90 nm and CVD graphene films on nickel from 6 to 8 nm. The shear modulus of these multilayered films averages 53 GPa. Their internal friction exhibits a temperature independent plateau below 10K. The values of the plateaus are similar for both the reduced graphene oxide films and CVD graphene films on nickel, and they are as high as the universal "glassy range" where the tunneling states dominated internal friction of amorphous solids lies. In contrast, CVD graphene films on copper foils are 90~95% single layer. The shear modulus of these single layer graphene films are about five times higher, averaging 280 GPa. Their low temperature internal friction is too small to measure within the uncertainty of our experiments. Our results demonstrate the dramatic difference in the elastic properties of multilayer and single layer graphene films.

• Periodical: Solid State Phenomena (Volume 184)
• Pages: 319-324
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.184.319
• Online since: January 2012
• Authors: Xiao Liu, Thomas H. Metcalf, Jeremy T. Robinson, F. Keith Perkins, Brian H. Houston
• Keywords: Double-Paddle Oscillator, Graphen, Internal Friction, Shear Modulus

References

[1] A.K. Geim, K.S. Novoselov, The rise of graphene, Nature Mater. 6 (2007) 183-191.

[2] Y. Zhu, S. Murali, W. Cai, X. Li, J. W. Suk, J. R. Potts, R. S. Ruoff, Graphene and graphene oxide: synthesis, properties, and applications, Adv. Mater. 22 (2010) 3906-3924.

DOI: 10.1002/adma.201001068

[3] C. Lee, X. Wei, J.W. Kysar, J. Hone, Measurement of the elastic properties and intrinsic strength of monolayer graphene, Science 321 (2008) 385-388.

DOI: 10.1126/science.1157996

[4] I.W. Frank, D.M. Tanenbaum, A.M. van der Zande, P.L. McEuen, Mechanical properties of suspended graphene sheets, J. Vac. Sci. Technol. B 25 (2007) 2558-2561.

DOI: 10.1116/1.2789446

[5] C. Chen, S. Rosenblatt, K.I. Bolotin, W. Kalb, P. Kim, I. Kymissis, H.L. Stormer, T.F. Heinz, and J. Hone, Performance of monolayer graphene, Nat. Nanotechnol. 4 (2009) 861-867.

DOI: 10.1038/nnano.2009.267

[6] C. Berger, Z. Song, X. Li, X. Wu, N. Brown, C. Naud, D. Mayou, T. Li, J. Hass, A. N. Marchenkov, E. H. Conrad, P. N. First, W. A. de Heer, Electronic confinement and coherence in patterned epitaxial graphene, Science 312 (2006) 1191-1196.

DOI: 10.1126/science.1125925

[7] S. Stankovich, D.A. Dikin, G.H.B. Dommett, K.M. Kohlhaas, E.J. Zimney, E.A. Stach, R.D. Piner, S.T. Nguyen, R.S. Ruoff, Graphene-based composite materials, Nature 442 (2006) 282-286.

DOI: 10.1038/nature04969

[8] K.S. Kim, Y. Zhao, H. Jang, S.Y. Lee, J.M. Kim, K.S. Kim, J. Ahn, P. Kim, J. Choi, B. Hong, Large-scale pattern growth of graphene films for stretchable transparent electrodes, Nature 457 (2009) 706-710.

DOI: 10.1038/nature07719

[9] X. Li, W. Cai, J. An, S. Kim, J. Nah, D. Yang, R. Piner, A. Velamakanni, I. Jung, E. Tutuc, S. K. Banerjee, L. Colombo, R. S. Ruoff, Large-area synthesis of high-quality and uniform graphene films on copper foils, Science 324 (2009) 1312-1314.

DOI: 10.1126/science.1171245

[10] J.T. Robinson, M. Zalalutdinov, J.W. Baldwin, E.S. Snow, Z. Wei, P. Sheehan, B.H. Houston, Wafer-scale reduced graphene oxide films for nanomechanical devices, Nanolett. 8 (2008) 3441-3445.

DOI: 10.1021/nl8023092

[11] X. Liu, J.T. Robinson, Z. Wei, P.E. Sheehan, B.H. Houston, E.S. Snow, Low temperature elastic properties of chemically reduced and CVD-grown graphene thin films, Diamond Relat. Mater. 19 (2010) 875-878.

DOI: 10.1016/j.diamond.2010.02.011

[12] Sakhaee-Pour, Elastic properties of single-layered graphene sheet, Solid State Commun. 149 (2009) 91-95.

DOI: 10.1016/j.ssc.2008.09.050

[13] F. Scarpa, S. Adhikari, A.S. Phani, Effective elastic mechanical properties of single layer graphene sheets, Nanotechnol. 20 (2009) 065709.

DOI: 10.1088/0957-4484/20/6/065709

[14] X. Liu, T. H. Metcalf, P. Mosaner, A. Miotello, Microstructure dependence of low temperature elastic properties in amorphous diamond-like carbon films, Phys. Rev. B 71 (2005) 155419.

DOI: 10.1103/physrevb.71.155419

[15] H.J. McSkimin, P. Andreatch, Elastic moduli of diamond as a function of pressure and temperature, J Appl. Phys. 43 (1972) 2944-2948.

DOI: 10.1063/1.1661636

[16] A.M. van der Zande, R.A. Barton, J.S. Alden, C.S. Ruiz-Vargas, W.S. Whitney, P.H.Q. Pham, J. Park, J.M. Parpia, H.G. Craighead, P.L. McEuen, Large-scale arrays of single-layer graphene resonators, Nanolett. 8 (2010) 4869-4873.

DOI: 10.1021/nl102713c

[17] T.H. Metcalf, X. Liu, B. H. Houston, J.W. Baldwin, J.E. Butler, T. Feygelson, Low temperature internal friction in nanocrystalline diamond films, Appl. Phys. Lett. 86 (2005) 081910.

DOI: 10.1063/1.1868065

[18] J. E. Van Cleve, Ph.D. thesis, Cornell University, (1991).

[19] R.O. Pohl, X. Liu, E. Thompson, Low temperature thermal conductivity and acoustic attenuation in amorphous solids, Rev. Mod. Phys. 74 (2002) 991-1013.

DOI: 10.1103/revmodphys.74.991

[20] J. Tsai, J. Tu, Characterizing mechanical properties of graphite using molecular dynamics simulation, Mater. Des. 31 (2010) 194-199.

DOI: 10.1016/j.matdes.2009.06.032

[21] S.K. Georgantzinos, G.I. Giannopoulos, N.K. Anifantis, Numerical investigation of elastic mechanical properties of graphene structures, Mater. Des. 31 (2010) 4646-4654.

DOI: 10.1016/j.matdes.2010.05.036

[22] S.K. Georgantzinos, G.I. Giannopoulos, N.K. Anifantis, Numerical investigation of elastic mechanical properties of graphene structures, Mater. Des. 31 (2010) 4646-4654.

DOI: 10.1016/j.matdes.2010.05.036
