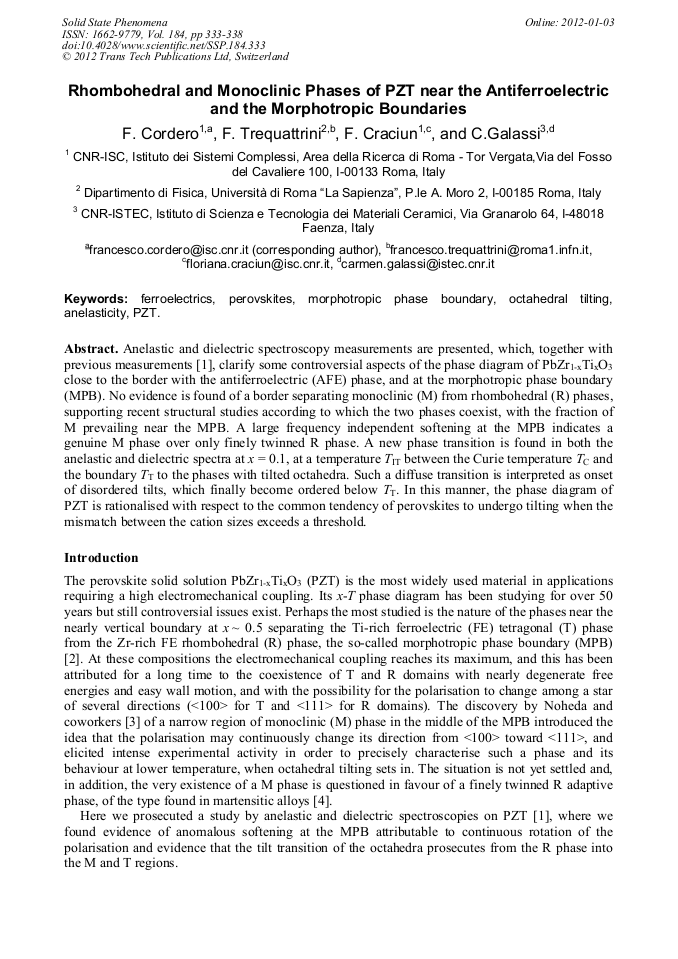

Rhombohedral and Monoclinic Phases of PZT near the Antiferroelectric and the Morphotropic Boundaries

Abstract:

Anelastic and dielectric spectroscopy measurements are presented, which, together with previous measurements [1], clarify some controversial aspects of the phase diagram of PbZr_1xTi_xO₃ close to the border with the antiferroelectric (AFE) phase, and at the morphotropic phase boundary (MPB). No evidence is found of a border separating monoclinic (M) from rhombohedral (R) phases, supporting recent structural studies according to which the two phases coexist, with the fraction of M prevailing near the MPB. A large frequency independent softening at the MPB indicates a genuine M phase over only finely twinned R phase. A new phase transition is found in both the anelastic and dielectric spectra at x = 0.1, at a temperature T_IT between the Curie temperature T_C and the boundary T_T to the phases with tilted octahedra. Such a diffuse transition is interpreted as onset of disordered tilts, which finally become ordered below T_T. In this manner, the phase diagram of PZT is rationalised with respect to the common tendency of perovskites to undergo tilting when the mismatch between the cation sizes exceeds a threshold.

• Periodical: Solid State Phenomena (Volume 184)
• Pages: 333-338
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.184.333
• Online since: January 2012
• Authors: Francesco Cordero, Francesco Trequattrini, Floriana Craciun, Carmen Galassi
• Keywords: Anelasticity, Ferroelectric, Morphotropic Phase Boundary, Octahedral Tilting, Perovskite, PZT

References

[1] F. Cordero, F. Craciun, and C. Galassi, Phys. Rev. Lett. 98 (2007) 255701-1-3.

[2] H. Yokota, N. Zhang, A.E. Taylor, P.A. Thomas and A.M. Glazer, Phys. Rev. B 80 (2009) 104109-1-12.

[3] B. Noheda, D.E. Cox, G. Shirane, L.E. Cross and S. -E. Park, Appl. Phys. Lett. 74 (1999) 2059-(2061).

[4] A.G. Khachaturyan, Phil. Mag. 90 (2010) 37-60.

[5] W. Rehwald, Adv. Phys. 22 (1973) 721.

[6] R. Schaller, G. Fantozzi and G. Gremaud, Mechanical Spectroscopy Q-1 2001, Trans Tech Publications, Totton, UK, (2001).

[7] Y. Ishibashi and M. Iwata, Jpn. J. Appl. Phys. 38 (1999) 1454.

[8] D. Phelan, X. Long, Y. Xie, Z. -G. Ye, A.M. Glazer, H. Yokota, P.A. Thomas and P.M. Gehring, Phys. Rev. Lett. 105 (2010) 207601.

[9] J.B. Goodenough, Rep. Prog. Phys. 67 (2004) (1915).

[10] D.I. Woodward, J. Knudsen and I.M. Reaney Phys. Rev. B 72 (2005) 104110.
