Stability of Thermally Processed LaNi5-Based Alloys for Hydrogen Storage

Adriana Wrona; Agnieszka Sierczyńska; Katarzyna Bilewska; Małgorzata Kamińska; Mariusz Staszewski

doi:10.4028/www.scientific.net/SSP.203-204.423

Paper Titles

Calculation of Electronic Structure of the K-Phase Cells which are Involved in Thermobarically Induced Epitaxial Growth of Diamond Crystals in High-Carbon Fe-Al-Alloys
p.402

Influence of the Crystallographic Orientation of CuZn30 Single Crystal on the Portevin-Le Chatelier Effect
p.406

Study of Defects Structure in Fe-Al Alloys
p.411

Influence of Overheating Temperature on the Shape of Primary Silicon Crystals in Hypereutectic Al-Si Cast Alloys
p.417

Stability of Thermally Processed LaNi₅-Based Alloys for Hydrogen Storage
p.423

On Frequencies of Occurrence of Geometrically Characteristic Grain Boundaries
p.427

The Specific Heat Capacity and Oxidation Kinetics of NiAl, FeAl and TiAl Alloys
p.431

Microstructural Characterization of Ni(Co)CrAlY Powders Designed for Thermal Spraying of Bondcoat for TBC Systems
p.435

Crystalline and Lamellar Structure of Polypropylene Fibrillated Fibres
p.439

HomeSolid State PhenomenaSolid State Phenomena Vols. 203-204Stability of Thermally Processed LaNi5-Based...

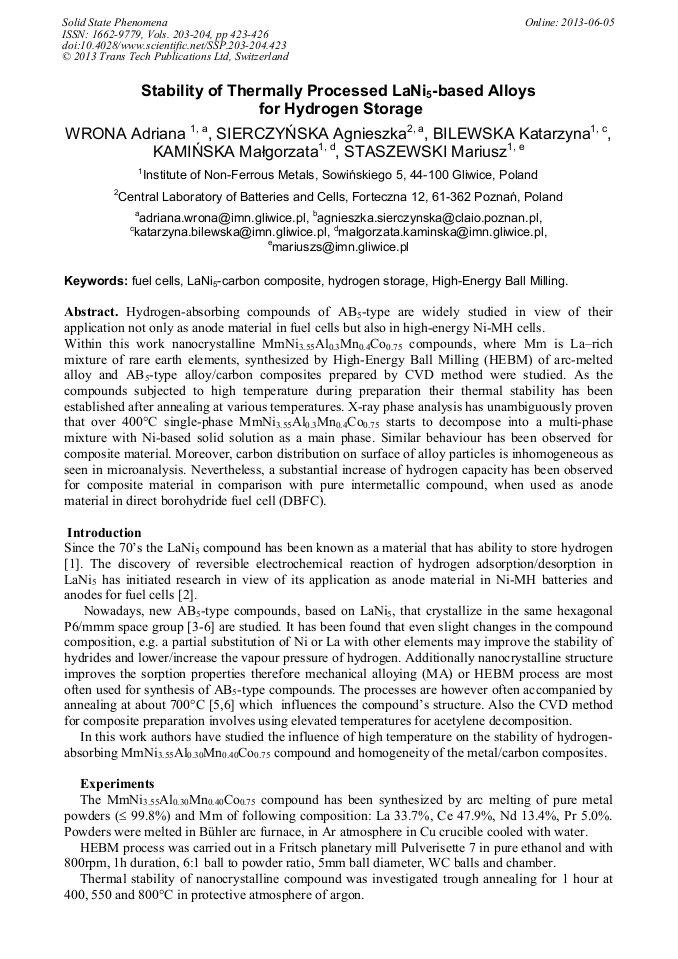

Stability of Thermally Processed LaNi₅-Based Alloys for Hydrogen Storage

Abstract:

Hydrogen-absorbing compounds of AB₅-type are widely studied in view of their application not only as anode material in fuel cells but also in high-energy Ni-MH cells. Within this work nanocrystalline MmNi_3.55Al_0.3Mn_0.4Co_0.75 compounds, where Mm is La–rich mixture of rare earth elements, synthesized by High-Energy Ball Milling (HEBM) of arc-melted alloy and AB₅-type alloy/carbon composites prepared by CVD method were studied. As the compounds subjected to high temperature during preparation their thermal stability has been established after annealing at various temperatures. X-ray phase analysis has unambiguously proven that over 400°C single-phase MmNi_3.55Al_0.3Mn_0.4Co_0.75 starts to decompose into a multi-phase mixture with Ni-based solid solution as a main phase. Similar behaviour has been observed for composite material. Moreover, carbon distribution on surface of alloy particles is inhomogeneous as seen in microanalysis. Nevertheless, a substantial increase of hydrogen capacity has been observed for composite material in comparison with pure intermetallic compound, when used as anode material in direct borohydride fuel cell (DBFC).
