Deformation Characteristics and Mechanism of Martensitic Stainless Steel during Thixoforming

Abstract:

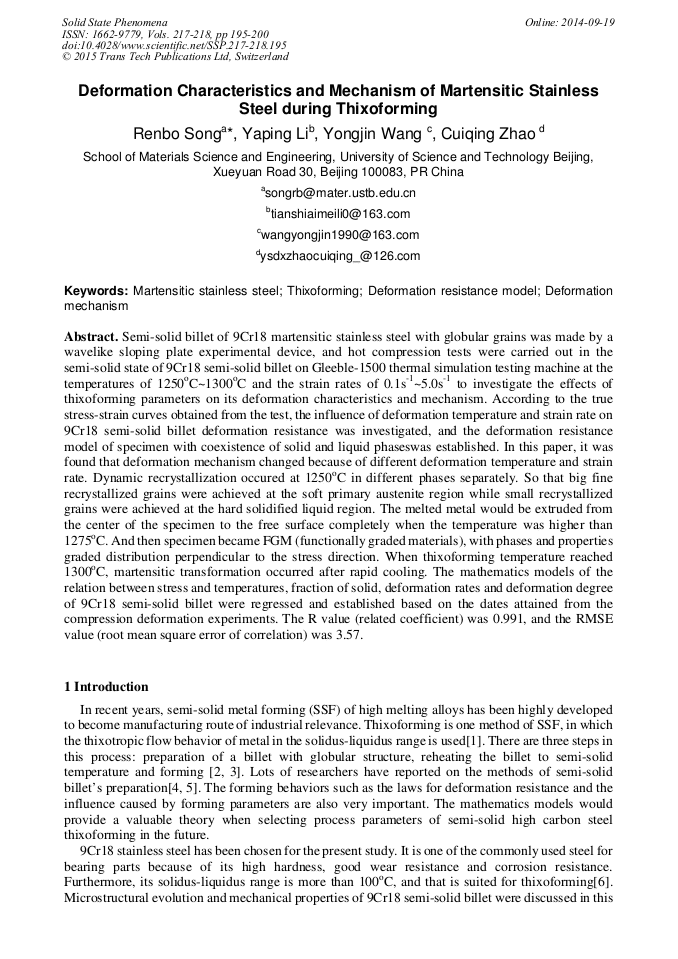

Semi-solid billet of 9Cr18 martensitic stainless steel with globular grains was made by a wavelike sloping plate experimental device, and hot compression tests were carried out in the semi-solid state of 9Cr18 semi-solid billet on Gleeble-1500 thermal simulation testing machine at the temperatures of 1250°C ~1300°C and the strain rates of 0.1 s^-1 ~5.0 s^-1 to investigate the effects of thixoforming parameters on its deformation characteristics and mechanism. According to the true stress-strain curves obtained from the test, the influence of deformation temperature and strain rate on 9Cr18 semi-solid billet deformation resistance was investigated, and the deformation resistance model of specimen with coexistence of solid and liquid phases was established. In this paper, it was found that deformation mechanism changed because of different deformation temperature and strain rate. Dynamic recrystallization occured at 1250°C in different phases separately. So that big fine recrystallized grains were achieved at the soft primary austenite region while small recrystallized grains were achieved at the hard solidified liquid region. The melted metal would be extruded from the centre of the specimen to the free surface completely when the temperature was higher than 1275°C. And then specimen became FGM (functionally graded materials), with phases and properties graded distribution perpendicular to the stress direction. When thixoforming temperature reached 1300 °C, martensitic transformation occurred after rapid cooling. The mathematics models of the relation between stress and temperatures, fraction of solid, deformation rates and deformation degree of 9Cr18 semi-solid billet were regressed and established based on the dates attained from the compression deformation experiments. The R value was 0.991, and the RMSE value was 3.57.

• Periodical: Solid State Phenomena (Volumes 217-218)
• Pages: 195-200
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.217-218.195
• Online since: September 2014
• Authors: Ren Bo Song*, Ya Ping Li, Yong Jin Wang, Cui Qing Zhao
• Keywords: Deformation Mechanism, Deformation Resistance Model, Martensitic Stainless Steel, Thixoforming

References

[1] Rogal. Ł, Dutkiewicz. J, Bonarski. J, Olszowska-Sobieraj. J, Characteristics of 100Cr6 bearing steel after thixoforming process performed with prototype device, Trans Nonferr Metal Soc. 2010, 20: 1033-1036.

DOI: 10.1016/s1003-6326(10)60626-7

[2] Dodangeh A, Kazeminezhad M, Aashuri H, Severe plastic deformation of rheoforged aluminum alloy A356, MaterSciEng A. 2012, 558: 371-376.

DOI: 10.1016/j.msea.2012.08.014

[3] Ramadan M, Takita M, Nomura H, El-Bagoury N, Semi-solid processing of ultrahigh-carbon steel castings, MaterSciEng A. 2006, 430: 285-291.

DOI: 10.1016/j.msea.2006.05.132

[4] Song R, Kang Y, Zhao A, Semi-solid rolling process of steel strips, J Mater Process technol. 2008, 198: 291-299.

DOI: 10.1016/j.jmatprotec.2007.06.079

[5] Omar MZ, Palmiere EJ, Howe AA, Atkinson HV, Kapranos P. Thixoforming of a high performance HP9/4/30 steel, MaterSciEng A. 2005, 395: 53-61.

DOI: 10.1016/j.msea.2004.12.013

[6] Cuiqing Zhao, Renbo Song, Evolution of microstructure and mechanical properties for 9Cr18 stainless steel during thixoforming, Mater Des. 2014, 59: 502-508.

DOI: 10.1016/j.matdes.2014.03.017

[7] Zhang Lei, Yuan Xiumei, Preparation of Semisolid TiB2/ZL203 Composites by Cooling Slope Process, Special Casting and Nonferrous Alloys. 2013, 33: 421-423.

[8] Kiuchi M, Sugiyama S. A new method to detect solid fraction of mushy/semi-solid alloys, (1994).

DOI: 10.1016/s0007-8506(07)62211-2

[9] Dong J, Cui J Z, Le Q C, et al, Liquidus semi-continuous casting, reheating and thixoforming of a wrought aluminum alloy 7075, MaterSciEng A. 2003, 345(1): 234-242.

DOI: 10.1016/s0921-5093(02)00473-2

[10] Wang X, Jie W. Controlled melting process of off-eutectic alloy. 2004, 52(2): 415-422.

DOI: 10.1016/j.actamat.2003.09.026

[11] Püttgen W, Hallstedt B, Bleck W, Uggowitzer PJ, On the microstructure formation in chromium steels rapidly cooled from the semi-solid state, Acta Mater. 2007, 55: 1033-1042.

DOI: 10.1016/j.actamat.2006.09.021

[12] Aišman D, Jirková H, Mašek B, The influence of deformation and cooling parameters after transition through semi-solid state on structure development of ledeburite steel, J Alloys Compd. 2012, 536: 204-207.

DOI: 10.1016/j.jallcom.2012.02.028

[13] Zhou Jihua, Guan Kezhi, Resistance of metal plastic deformation, China Machine Press, Beijing, (1989).
