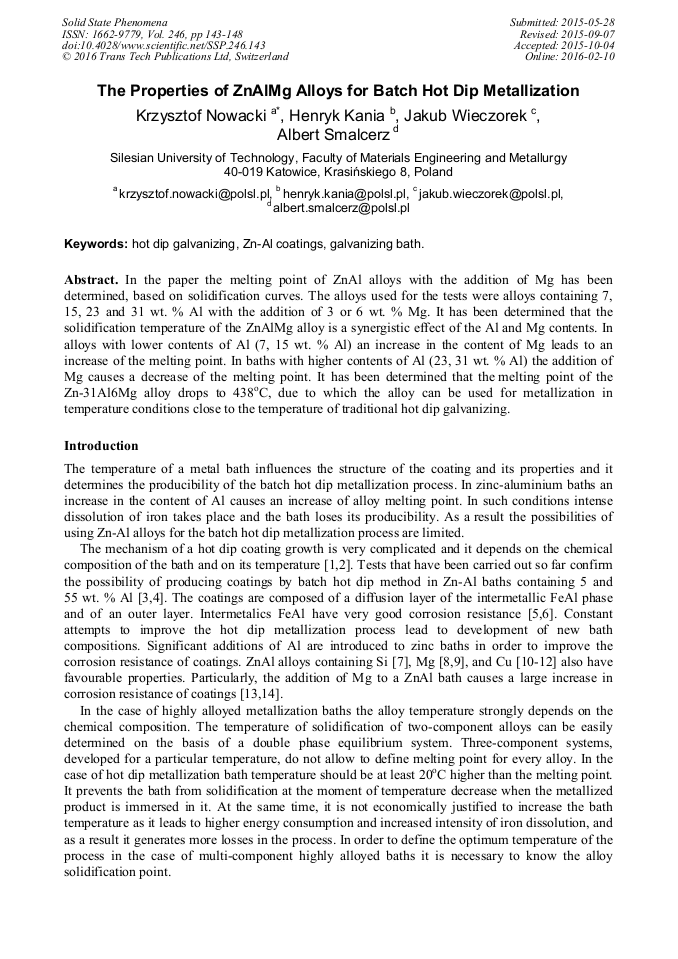

The Properties of ZnAlMg Alloys for Batch Hot Dip Metallization

Abstract:

In the paper the melting point of Zn-Al alloys with the addition of Mg has been determined, based on solidification curves. The alloys used for the tests were alloys containing 7, 15, 23 and 31 wt.% Al with the addition of 3 or 6 wt.% Mg. It has been determined that the solidification temperature of the ZnAlMg alloy is a synergistic effect of the Al and Mg contents. In alloys with lower contents of Al (7, 15 wt.% Al) an increase in the content of Mg leads to an increase of the melting point. In baths with higher contents of Al (23, 31 wt.% Al) the addition of Mg causes a decrease of the melting point. It has been determined that the melting point of the Zn-31Al6Mg alloy drops to 438°C, due to which the alloy can be used for metallization in temperature conditions close to the temperature of traditional hot dip galvanizing.

• Periodical: Solid State Phenomena (Volume 246)
• Pages: 143-148
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.246.143
• Online since: February 2016
• Authors: Krzysztof Nowacki, Henryk Kania*, Jakub Wieczorek, Albert Smalcerz
• Keywords: Galvanizing Bath, Hot Dip Galvanizing, Zn-Al Coatings

References

[1] W. Wołczyński et al., Morphological characteristics of multi-layer/substrate systems, Mater. Charact. 56 (2006) 274-280.

[2] D. Kopyciński, E. Guzik, Intermetallic phases formation in hot dip galvanizing process, Solid State Phenom. 197 (2013) 77-82.

DOI: 10.4028/www.scientific.net/ssp.197.77

[3] J. Mendala, Influence of the cooling method on the structure of 55AlZn coatings, IOP Conf. Series: Mater. Sci. Eng. 22 (2011) 012004.

DOI: 10.1088/1757-899x/22/1/012004

[4] P. Liberski et al., The structure and corrosion resistance of Zn-Al coatings obtained in batch double dip process, Physico Chemical Mechanics of Materials 5 (2006) 673-679.

[5] J. Cebulski et al., Comparison of high temperature corrosion resistance in gaseous environment of alloys based on intermetallic phase matrix Fe40Al5CrZrB and steel X12CrCoNi2120, Arch. Metall. Mater. 59 (2014) 447-450.

DOI: 10.2478/amm-2014-0074

[6] A. Fornalczyk et al., The morphology of corrosion products in FeAl alloys after heat-resistance tests at different temperatures, Solid State Phenom. 227 (2015) 409-412.

DOI: 10.4028/www.scientific.net/ssp.227.409

[7] J. Mendala, The influence of Si addition in 55AlZn bath on the coating structures obtained in the batch hotdip metallization, IOP Conf. Series: Mater. Sci. Eng. 22 (2011) 012005.

DOI: 10.1088/1757-899x/22/1/012005

[8] H. Kania, The structure of coatings obtained in the Zn-31Al-3Mg bath on high-silicon steel, Solid State Phenom. 212 (2014) 101-106.

DOI: 10.4028/www.scientific.net/ssp.212.101

[9] H. Kania, M. Bierońska, Corrosion resistance of Zn-31AlMg coatings obtained by batch hot dip method, Solid State Phenom. 212 (2014) 167-172.

DOI: 10.4028/www.scientific.net/ssp.212.167

[10] R. Michalik, The effect of modification with rare earth elements on ZnAl22Cu3 alloy structure and mechanical properties, Arch. Metall. Mater. 58 (2013) 49-53.

DOI: 10.2478/v10172-012-0149-6

[11] R. Michalik, Influence of solutionizing on structure and mechanical properties of ZnAl40Cu3 alloy, Materialwiss. Werkst. 45 (2014) 354-360.

[12] R. Michalik, Influence of Si and REE on the corrosion resistance of ZnAl40Cu3 alloy, Solid State Phenom. 212 (2014) 133-136.

DOI: 10.4028/www.scientific.net/ssp.212.133

[13] T. Tsujimura, A. Komatsu, A. Andoh, Influence of Mg content in coating layer and coating structure on corrosion resistance of hot-dip Zn-Al-Mg alloy coated steel sheet, Proc. of the 5th International Conf. on Zinc and Zinc Alloy Coated Steel, GALVATECH, 2001, Brussels, Belgium, 145-152.

DOI: 10.4028/www.scientific.net/amr.834-836.601

[14] K. Nishimura, H. Shindo, K. Kato, Y. Morimoto, Microstructure and corrosion behaviour of Zn-Mg-Al hot dip galvanized steel sheet, Proc. of the 4th International Conf. on Zinc and Zinc Alloy Coated Steel, GALVATECH, 1998, Chiba, Japan, 437-442.

DOI: 10.1520/a0653_a0653m-02
