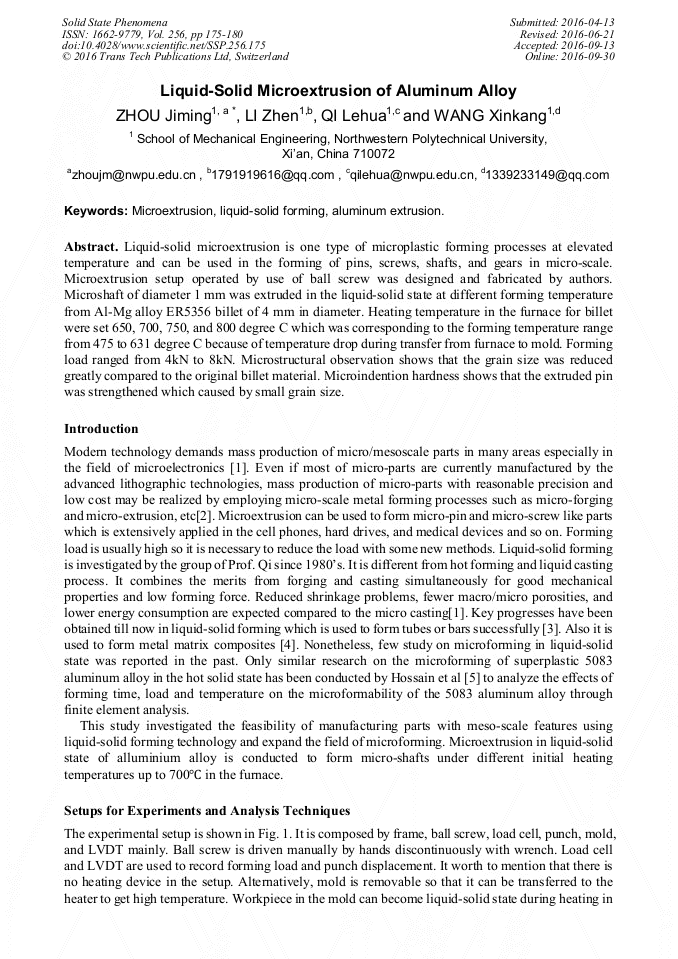

Liquid-Solid Microextrusion of Aluminum Alloy

Abstract:

Liquid-solid microextrusion is one type of microplastic forming processes at elevated temperature and can be used in the forming of pins, screws, shafts, and gears in micro-scale. Microextrusion setup operated by use of ball screw was designed and fabricated by authors. Microshaft of diameter 1 mm was extruded in the liquid-solid state at different forming temperature from Al-Mg alloy ER5356 billet of 4 mm in diameter. Heating temperature in the furnace for billet were set 650, 700, 750, and 800 degree C which was corresponding to the forming temperature range from 475 to 631 degree C because of temperature drop during transfer from furnace to mold. Forming load ranged from 4kN to 8kN. Microstructural observation shows that the grain size was reduced greatly compared to the original billet material. Microindention hardness shows that the extruded pin was strengthened which caused by small grain size.

You might also be interested in these eBooks

Semi-Solid Processing of Alloys and Composites XIV

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 256)

Pages:

175-180

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.256.175

Citation:

Cite this paper

Online since:

September 2016

Authors:

Ji Ming Zhou*, Zhen Li, Le Hua Qi, Xin Kang Wang

Keywords:

Aluminium Extrusion, Liquid-Solid Forming, Microextrusion

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] G.Y. Kim, J. Ni, R. Mayor, H. Kim, An Experimental Investigation on Semi-Solid Forming of Micro/Meso-Scale Features, J. MANUF. SCI. E. -T. ASME. 129(2007) 246-251.

DOI: 10.1115/1.2515402

Google Scholar

[2] S.G. Kang, Y.S. Na, K.Y. Park, J.E. Jeon, S.C. Son, J.H. Lee, A study on the micro-formability of Al 5083 superplastic alloy using micro-forging method, MAT. SCI. ENG. A-STRUCT. 449-451(2007) 338-342.

DOI: 10.1016/j.msea.2006.01.166

Google Scholar

[3] H.J. Li, L.H. Qi, J.M. Zhou, Technology and application of liquid solid forming under high pressure, first ed., National Defense Industry Press, Beijing, (2013).

Google Scholar

[4] J. Liu, L. H. Qi, J. T. Guan, Y. Q. Ma, J. M. Zhou, Compressive behavior of Csf/AZ91D composites by liquid–solid extrusion directly following vacuum infiltration technique, MAT. SCI. ENG. A-STRUCT. 531(2012)164-170.

DOI: 10.1016/j.msea.2011.10.051

Google Scholar

[5] M. A. M. Hossan, S. T. Hong, K. Y. Park, Y. S. NA, Microforming of superplastic 5083 aluminum alloy, T. NONFERR. METAL. SOC. 22(2012) s656-s660.

DOI: 10.1016/s1003-6326(12)61781-6

Google Scholar
