Effect of Chip Size on Semi-Solid Microstructure of AZ91D Magnesium Alloy Prepared by CRP Process

Abstract:

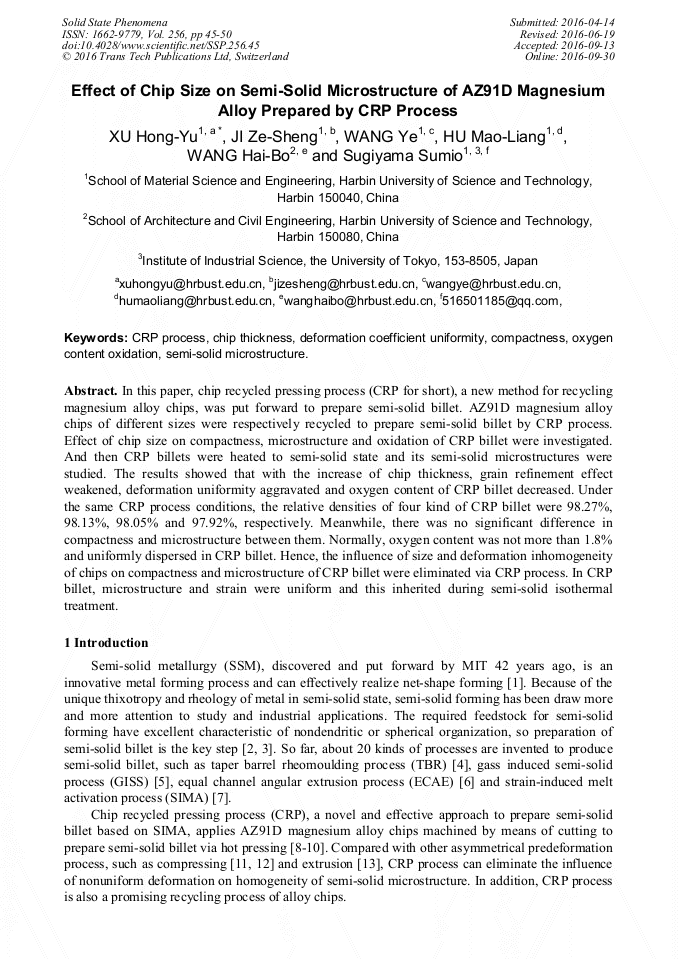

In this paper, chip recycled pressing process (CRP for short), a new method for recycling magnesium alloy chips, was put forward to prepare semi-solid billet. AZ91D magnesium alloy chips of different sizes were respectively recycled to prepare semi-solid billet by CRP process. Effect of chip size on compactness, microstructure and oxidation of CRP billet were investigated. And then CRP billet were heated to semi-solid state and its semi-solid microstructures were studied. The results showed that with the increase of chip thickness, grain refinement effect weakened, deformation uniformity aggravated and oxygen content of CRP billet decreased. Under the same CRP process conditions, the relative densities of four kind of CRP billet were 98.27%, 98.13%, 98.05% and 97.92%, respectively. Meanwhile, there was no significant difference in compactness and microstructure between them. Normally, oxygen content was not more than 1.8% and uniformly dispersed in CRP billet. Hence, the influence of size and deformation inhomogeneity of chip on compactness and microstructure of CRP billet were eliminated via CRP process. In CRP billet, microstructure and strain were uniform and this inherited during semi-solid isothermal treatment.

• Periodical: Solid State Phenomena (Volume 256)
• Pages: 45-50
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.256.45
• Online since: September 2016
• Authors: Hong Yu Xu*, Ze Sheng Ji, Ye Wang, Mao Liang Hu, Hai Bo Wang, Sumio Sugiyama
• Keywords: Chip Thickness, Compactness, CRP Process, Deformation Coefficient Uniformity, Oxygen Content Oxidation, Semisolid Microstructure

References

[1] M.C. Flemings, Behavior of metal alloys in the semisolid state, Met. Trans. 22A (1991) 957-981.

[2] F. Czerwinski, Semisolid extrusion molding of Mg-9%Al-1%Zn alloys, J. Mater. Sci. 39 (2004) 463-468.

DOI: 10.1023/b:jmsc.0000011499.82960.9d

[3] E. Tzimas, A. Zavaliangos, Evolution of near-equiaxed microstructure in the semisolid state, Mater. Sci. Eng., A. 289 (2000) 228-240.

DOI: 10.1016/s0921-5093(00)00908-4

[4] L. Q. Yang, Y. L. Kang, F. Zhang, J. Xu, Microstructure and mechanical properties of rheo-diecasting AZ91D Mg alloy, T. Nonferr. Metal. SOC. 20 (2010) s862-s867.

DOI: 10.1016/s1003-6326(10)60596-1

[5] S. Thanabumrungkul, S. Janudom, R. Burapa, Industrial development of gas induced semi-solid process, T. Nonferr. Metal. SOC. 20 (2010) s1016-s1021.

DOI: 10.1016/s1003-6326(10)60623-1

[6] J. F. Jiang, X. Lin, Y. Wang, J. J. Qu, S. J. Luo, Microstructural evolution of AZ61 magnesium alloy predeformed by ECAE during semisolid isothermal treatment, T. Nonferr. Metal. SOC. 22 (2012) 555-563.

DOI: 10.1016/s1003-6326(11)61213-2

[7] A. Bolouri, M. Shahmiri, E. N. H. Cheshmeh, Microstructural evolution during semisolid state strain induced melt activation process of aluminum 7075 alloy, T. Nonferr. Metal. SOC. 20 (2010) 1663-1671.

DOI: 10.1016/s1003-6326(09)60355-1

[8] H. Y. Xu, Z. S. Ji, M. L. Hu, Z. Z. Wang, Microstructure evolution of hot pressed AZ91D alloy chips reheated to semi-solid state, T. Nonferr. Metal. SOC. 22 (2012) 2906-2912.

DOI: 10.1016/s1003-6326(11)61549-5

[9] H. Y. Xu, Z. S. Ji, M. L. Hu, Z. Z. Wang, Microstructure of AZ91D magnesium alloy semi-solid billets prepared by SIMA method from chips, T. Nonferr. Metal. SOC. 20 (2010) s749-s753.

DOI: 10.1016/s1003-6326(10)60575-4

[10] H. Y. Xu, Z. S. Ji, Z. Z. Wang, Microstructural evolution of AZ91D-1. 5%Er during semi-Solid isothermal treatment, Solid State Phenomena, 192-193 (2013) 238-245.

DOI: 10.4028/www.scientific.net/ssp.192-193.238

[11] Q. Q. Zhang, Z. Y. Cao, Y. B. Liu, Y. F. Zhang, L. Zhang, M. L. Zhang, R. Z. Wu, Effect of asymmetrical deformation on the microstructure evolution of semisolid AZ91D alloy, Mater. Sci. Eng., A. 488 (2008) 260-265.

DOI: 10.1016/j.msea.2007.12.002

[12] Q. Q. Zhang, Z. Y. Cao, Y. F. Zhang, G. H. Su, Y. B. Liu, Effect of compression ratio on the microstructure evolution of semisolid AZ91D alloy, J. Mater. Process. Tech. 184 (2007) 195-200.

DOI: 10.1016/j.jmatprotec.2006.11.022

[13] S. J. Luo, Q. Chen, Z. D. Zhao, An investigation of microstructure evolution of RAP processed ZK60 magnesium alloy, Mater. Sci. Eng., A. 501 (2009) 146-152.

DOI: 10.1016/j.msea.2008.09.059

[14] M. L. Hu, Z. S. Ji, X. Y. Chen, Z. K. Zhang, Effect of chip size on mechanical property and microstructure of AZ91D magnesium alloy prepared by solid state recycling, Mater. Charact. 59 (2008) 385-389.

DOI: 10.1016/j.matchar.2007.02.002

[15] J. G. Wang, P. Lu, H. Y. Wang, J. F. Liu, Q. C. Jiang, Semisolid microstructure evolution of the predeformed AZ91D alloy during heat treatment, J. Alloy. Compd. 395 (2005) 108-112.

DOI: 10.1016/j.jallcom.2004.11.050
