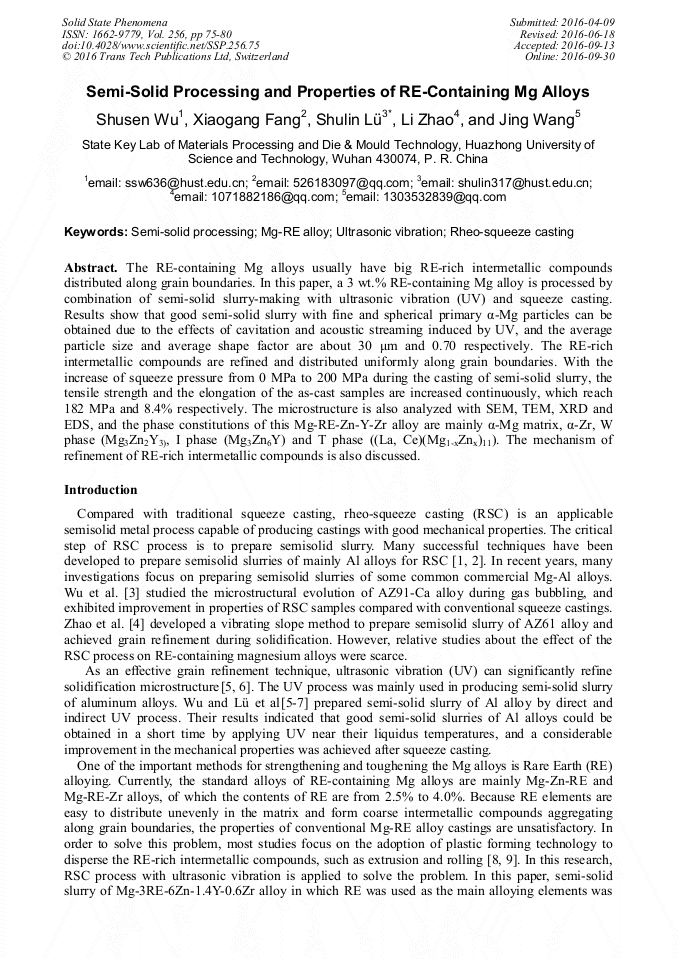

Semi-Solid Processing and Properties of RE-Containing Mg Alloys

Abstract:

The RE-containing Mg alloys usually have big RE-rich intermetallic compounds distributed along grain boundaries. In this paper, a 3 wt.% RE containing Mg alloy is processed by combination of semi-solid slurry-making with ultrasonic vibration (UV) and squeeze casting. Results show that good semi-solid slurry with fine and spherical primary α-Mg particles can be obtained due to the effects of the cavitation and acoustic streaming induced by UV, and the average particle size and average shape factor are about 30 μm and 0.70 respectively. The RE-rich intermetallic compounds are refined and uniformly distributed along grain boundaries. With the increase of squeeze pressure from 0 MPa to 200 MPa during the casting of semi-solid slurry, the tensile strength and the elongation of the as-cast samples are increased continuously, which reach 182 MPa and 8.4% respectively. The microstructure is also analyzed with SEM, TEM, XRD and EDS, and the phase constitutions of this Mg-RE-Zn-Y-Zr alloy are mainly α-Mg matrix, α-Zr, W phase (Mg₃Zn₂Y₃₎, I phase (Mg₃Zn₆Y) and T phase ((La,Ce)(Mg_1-xZn_x)₁₁). The mechanism of refinement of RE-rich intermetallic compounds is also discussed.

• Periodical: Solid State Phenomena (Volume 256)
• Pages: 75-80
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.256.75
• Online since: September 2016
• Authors: Shu Sen Wu, Xiao Gang Fang, Shu Lin Lü*, Li Zhao, Jing Wang
• Keywords: Mg-Re Alloy, Rheo-Squeeze Casting, Semisolid Processing, Ultrasonic Vibration

References

[1] C. Limmaneevichitr, S. Pongananpanya, J. Kajornchaiyakul, Metallurgical structure of A356 aluminum alloy solidified under mechanical vibration: An investigation of alternative semi-solid casting routes, Mater. & Des. 30(2009)3925-3930.

DOI: 10.1016/j.matdes.2009.01.036

[2] J. Wang, P. Li, G. Mi, Y. Zhong, Microstructural evolution caused by electromagnetic stirring in superheated AlSi7Mg alloys, J. Mater. Process. Tech. 210(2010)1652-1659.

DOI: 10.1016/j.jmatprotec.2010.05.016

[3] Y. Zhang, G.H. Wu, W.C. Liu, L. Zhang, S. Pang, W.J. Ding, Microstructure and mechanical properties of rheo-squeeze casting AZ91-Ca magnesium alloy prepared by gas bubbling process, Mater. & Des. 67(2015)1-8.

DOI: 10.1016/j.matdes.2014.10.087

[4] Z.Y. Zhao, R.G. Guan, X. Wang, Y. Li, L. Dong, C.S. Lee, C.M. Liu, Microstructure formation mechanism and properties of AZ61 alloy processed by melt treatment of vibration cooling slope and semisolid rolling, Met. Mater. Int. 19(2013)1063-1067.

DOI: 10.1007/s12540-013-5022-2

[5] S.L. Lü, S.S. Wu, C. Lin, Z.Q. Hu, P. An, Preparation and rheocasting of semisolid slurry of 5083 Al alloy with indirect ultrasonic vibration process, Mater. Sci. & Eng. A 528(2011) 8635-8640.

DOI: 10.1016/j.msea.2011.08.014

[6] S.L. Lü, S.S. Wu, Z.M. Zhu, P. An, Y.W. Mao, Effect of semi-solid processing on microstructure and mechanical properties of 5052 aluminum alloy, Trans. of Nonferr. Met. Soc. of China 20(S) (2010): 758-763.

DOI: 10.1016/s1003-6326(10)60577-8

[7] S.S. Wu, S.L. Lȕ, P. An, H. Nakae, Mater. Lett. 73(2012) 150-153.

[8] N. Tahreen, D.F. Zhang, F.S. Pan, X.Q. Jiang, D.Y. Li, D.L. Chen, Hot deformation and processing map of an as-extruded Mg-Zn-Mn-Y alloy containing I and W phases, Mater. & Des. 87(2015)245-255.

DOI: 10.1016/j.matdes.2015.08.023

[9] D. Wu, R.S. Chen, W.N. Tang, E.H. Han, Influence of texture and grain size on the room-temperature ductility and tensile behavior in a Mg-Gd-Zn alloy processed by rolling and forging, Mater. & Des. 41(2012)306-313.

DOI: 10.1016/j.matdes.2012.04.033

[10] C. Lin, S.S. Wu, S.L. Lü, P. An, L. Wan, Microstructure and mechanical properties of rheo-diecast hypereutectic Al-Si alloy with 2%Fe assisted with ultrasonic vibration process, J. Alloy & Compd. 568(2013)42-48.

DOI: 10.1016/j.jallcom.2013.03.089

[11] V. Abramov, O. Abramov, V. Bulgakov, F. Sommer, Solidification of aluminum alloys under ultrasonic irradiation using water-cooled resonator, Mater. Lett., 37(1998) 27-34.

DOI: 10.1016/s0167-577x(98)00064-0

[12] S.S. Wu, X.P. Wu, Z.H. Xiao, A model of growth morphology for semi-solid metals, Acta Materialia, 52 (2004) 3519–3524.

DOI: 10.1016/j.actamat.2004.04.005

[13] R.M. Wang, A. Eliezer, E. Gutman, Microstructures and dislocations in the stressed AZ91D magnesium alloys, Mater. Sci. & Eng. A 344(2002)279-287.

DOI: 10.1016/s0921-5093(02)00413-6

[14] L.Z. Liu, X.H. Chen, F.S. Pan. Effect of Y and Ce additions on microstructures and mechanical properties of Mg-Zn-Zr alloys, Mater. Sci. & Eng. A 644(2015) 247-253.

DOI: 10.1016/j.msea.2015.07.065
