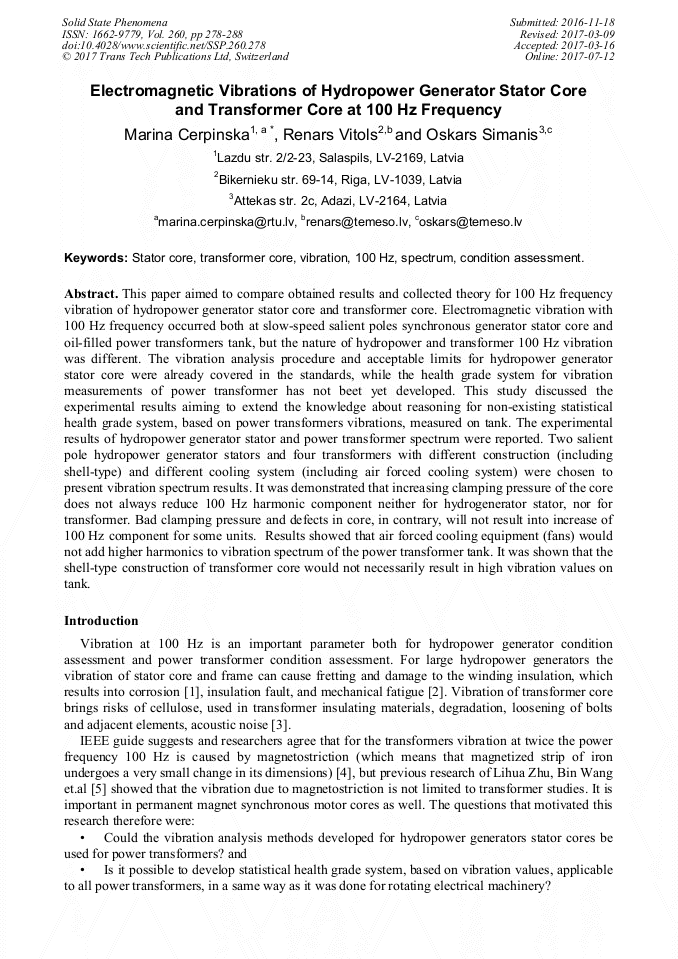

Electromagnetic Vibrations of Hydropower Generator Stator Core and Transformer Core at 100 Hz Frequency

Abstract:

This paper aimed to compare obtained results and collected theory for 100 Hz frequency vibration of hydropower generator stator core and transformer core. Electromagnetic vibration with 100 Hz frequency occurred both at slow-speed salient poles synchronous generator stator core and oil-filled power transformers tank, but the nature of hydropower and transformer 100 Hz vibration was different. The vibration analysis procedure and acceptable limits for hydropower generator stator core were already covered in the standards, while the health grade system for vibration measurements of power transformer has not beet yet developed. This study discussed the experimental results aiming to extend the knowledge about reasoning for non-existing statistical health grade system, based on power transformers vibrations, measured on tank. The experimental results of hydropower generator stator and power transformer spectrum were reported. Two salient pole hydropower generator stators and four transformers with different construction (including shell-type) and different cooling system (including air forced cooling system) were chosen to present vibration spectrum results. It was demonstrated that increasing clamping pressure of the core does not always reduce 100 Hz harmonic component neither for hydrogenerator stator, nor for transformer. Bad clamping pressure and defects in core, in contrary, will not result into increase of 100 Hz component for some units. Results showed that air forced cooling equipment (fans) would not add higher harmonics to vibration spectrum of the power transformer tank. It was shown that the shell-type construction of transformer core would not necessarily result in high vibration values on tank.

• Periodical: Solid State Phenomena (Volume 260)
• Pages: 278-288
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.260.278
• Online since: July 2017
• Authors: Marina Cerpinska*, Renars Vitols, Oskars Simanis
• Keywords: 100 Hz, Condition Assessment, Spectrum, Stator Core, Transformer Core, Vibration

References

[1] M. Griscenko, R. Vitols, Stator Core Vibration and Temperature Analysis of Hydropower Generation Unit at 100 Hz Frequency, in Proceedings of Conference Engineering for rural development, Jelgava, 2015, pp.383-388.

[2] J. He, L. Zhou, L. Chen et. al., Vibration Analysis and Improvement of Stator Core in Three Gorges Hydro-Generator, International Conference on Electrical Machines and Systems, 2008, pp.615-616.

[3] J. H. Harlow, Electric power transformer engineering, CRC press, (2004).

[4] IEEE Std C57. 136-2000. IEEE Guide for Sound Level Abatement and Determination for Liquid-Immersed Power Transformers and Shunt Reactors Rated Over 500 kVA.

DOI: 10.1109/ieeestd.2001.92422

[5] L. Zhu, B. Wang et. al., Electromagnetic Vibration of Motor Core Including Magnetostriction Under Different Rotation Speeds, in IEEE Transactions on magnetics, 52(3), 2016, p.8102004.

DOI: 10.1109/tmag.2015.2497738

[6] S. Borucki, T. Boczar, P. Fracz, D. Zmarzly, Diagnostics of Power Transformers Cores Using a Modified Vibroacoustic Method, Conference Record of the 2012 IEEE International Symposium on Electrical Insulation (ISEI), 2012, pp.179-183.

DOI: 10.1109/elinsl.2012.6251453

[7] STO 17330282. 27. 140. 001-2006 guideline Methods for Evaluating the Technical Condition of Major Hydroelectric Plant Equipment.

[8] Z. Berler, A. Golubev, V. Rusov et. al., Vibro-acoustic method of transformer clamping pressure monitoring. IEEE Conference record of IEEE international symposium on electrical insulation, 2000, pp.263-266.

DOI: 10.1109/elinsl.2000.845503

[9] Y. Wang, J. Pan, Voltage and vibration fluctuations in power transformers, Proceedings of Acoustics, 2012, pp.1-7.

[10] T. Boczar et al., The Analysis of Mechanical Vibrations and Acoustic Pressure Level of a Transformer Model, Acta Physica Polonica A, Vol. 114, (2008) pp.21-26.

DOI: 10.12693/aphyspola.114.a-21

[11] M. Jin, J. Pan, H. Huang, J. Zhou, Transmission of vibration of a power transformer from the internal structures to the tank, Proceedings of Acoustics, 2012, pp.1-7.

[12] M. Heathcote, J & P transformer book. Thirteenth edition, Newnes, (2007).

[13] J. He, Z. Yu, R. Zeng, B. Zhang, Vibration and audible noise characteristics of AC transformer caused by HVDC system under monopole operation, IEEE Transactions on Power Delivery, 27(4), 2012, pp.1835-1842.

DOI: 10.1109/tpwrd.2012.2205409

[14] H. L. Rivera, J. A. Garcia-Souto, J. Sanz, Measurements of Mechanical Vibrations at Magnetic Cores of Power Transformers with Fiber-Optic Interferometric Intrinsic Sensor, IEEE Journal of Selected Topics in Quantum Electronics, vol. 6, No. 5, 2000, pp.788-797.

DOI: 10.1109/2944.892619

[15] D. Zmarzly, T. Boczar, P. Fracz, S. Borucki, High voltage power transformer diagnostics using vibroacoustic method, In IEEE International Power Modulator and High Voltage Conference (IPMHVC), 2014, pp.561-564.

DOI: 10.1109/ipmhvc.2014.7287337

[16] S. Saponara, L. Fanucci, F. Bernardo, A. Falciani, A network of vibration measuring nodes with integrated signal processing for predictive maintenance of high power transformers, In IEEE 9th International Symposium on Intelligent Signal Processing (WISP), 2015, pp.1-4.

DOI: 10.1109/wisp.2015.7139154
