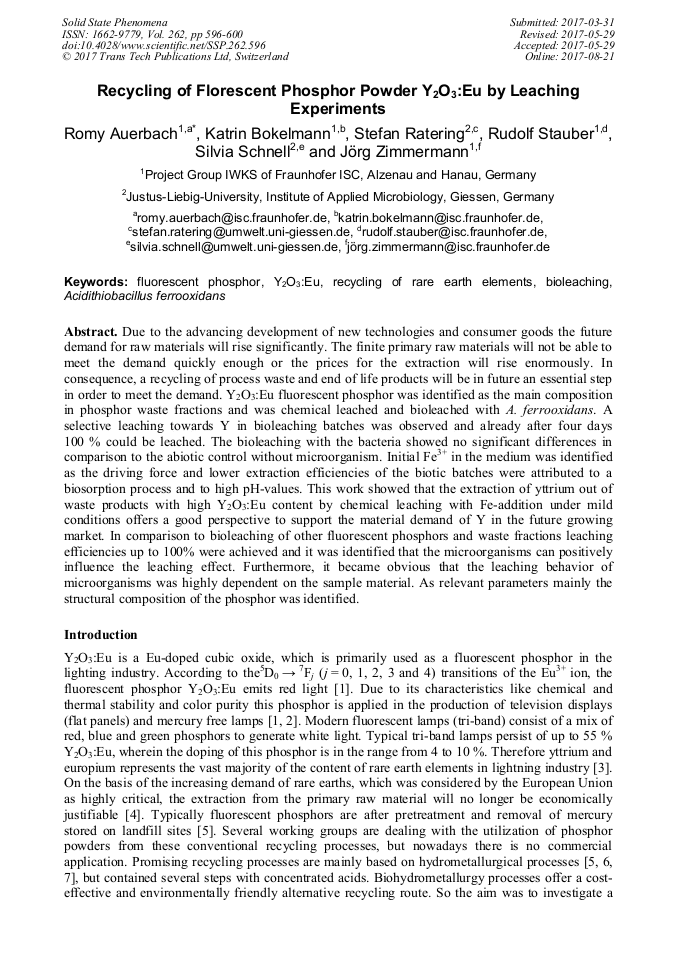

Recycling of Florescent Phosphor Powder Y₂O₃:Eu by Leaching Experiments

Abstract:

Due to the advancing development of new technologies and consumer goods the future demand for raw materials will rise significantly. The finite primary raw materials will not be able to meet the demand quickly enough or the prices for the extraction will rise enormously. In consequence, a recycling of process waste and end of life products will be in future an essential step in order to meet the demand. Y₂O₃:Eu fluorescent phosphor was identified as the main composition in phosphor waste fractions and was chemical leached and bioleached with A. ferrooxidans. A selective leaching towards Y in bioleaching batches was observed and already after four days 100 % could be leached. The bioleaching with the bacteria showed no significant differences in comparison to the abiotic control without microorganism. Initial Fe³⁺ in the medium was identified as the driving force and lower extraction efficiencies of the biotic batches were attributed to a biosorption process and to high pH-values. This work showed that the extraction of yttrium out of waste products with high Y₂O₃:Eu content by chemical leaching with Fe-addition under mild conditions offers a good perspective to support the material demand of Y in the future growing market. In comparison to bioleaching of other fluorescent phosphors and waste fractions leaching efficiencies up to 100% were achieved and it was identified that the microorganisms can positively influence the leaching effect. Furthermore, it became obvious that the leaching behavior of microorganisms was highly dependent on the sample material. As relevant parameters mainly the structural composition of the phosphor was identified.

• Periodical: Solid State Phenomena (Volume 262)
• Pages: 596-600
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.262.596
• Online since: August 2017
• Authors: Romy Auerbach*, Katrin Bokelmann, Stefan Ratering, Rudolf Stauber, Sylvia Schnell, Jörg Zimmermann
• Keywords: Acidithiobacillus ferrooxidans, Bioleaching, Fluorescent Phosphor, Recycling of Rare Earth Elements, Y₂O₃:Eu

References

[1] J.H. Gwak, S.H. Park, J.E. Jang, S.J. Lee, J.E. Jung, J.M. Kim, Synthesis and Modification of Red Oxide Phosphors for Low Voltage Excitation, J. Vac. Sci. Technol. B, 18 (2000) 1101–1105.

DOI: 10.1116/1.591338

[2] J. B. Prasanna kumar, G. Ramgopal, Y. S. Vidya, K. S. Anantharaju, B. Daruka Prasad, S. C. Sharma, S. C. Prashantha, H. B. Premkumar, H. Nagabhushana, Bio-inspired synthesis of Y2O3: Eu3+ red nanophosphor for eco-friendly photocatalysis, Spectrochim. Acta A: Mol. Biomol. Spect. 141 (2015).

DOI: 10.1016/j.saa.2015.01.055

[3] C. Tunsu, M. Petranikova, C. Ekberg, T. Retegan, A hydrometallurgical process for the recovery of rare earth elements from fluorescent lamp waste fractions, Sep. Purif. Technol. 161 (2016) 172-186.

DOI: 10.1016/j.seppur.2016.01.048

[4] Europäische Komission, Critical raw materials for the EU: Report of the ad-hoc working group in defining critical raw materials, (2010) 33-47.

[5] K. Binnemans, P. T. Jones, B. Blanpain, T. Van Gerven, Y. Yang, A. Walton, M. Buchert, Recycling of rare earths: A critical review, J. Clean. Prod. 51 (2013) 1-22.

DOI: 10.1016/j.jclepro.2012.12.037

[6] C. Tunsu, M. Petranikova, M. Gergoric, C. Ekberg, T. Retegan, Reclaiming rare earth elements from end-of-life products: A review of the perspectives for urban mining using hydrometallurgical unit operations, Hydrometallurgy, 156 (2015) 239-258.

DOI: 10.1016/j.hydromet.2015.06.007

[7] K. Binnemans, P. T. Jones, Perspectives for the recovery of rare earths from end-of-life fluorescent lamps, J. Rare Earths 32/3 (2014) 195-200.

DOI: 10.1016/s1002-0721(14)60051-x

[8] F. Barmettler, C. Castelberg, C. Fabbri, H. Brandl, Microbial mobilization of rare earth elements from mineral solids- A mini review, AIMS Microbiol. 2/2 (2016) 190-204.

DOI: 10.3934/microbiol.2016.2.190

[9] S. Hopfe, K. Flemming, F. Lehmann, R. Möckel, S. Kutschke, K. Pollmann, Leaching of rare earth elements from fluorescent powder using tea fungus Kombucha, Waste Management (2017), http: /dx. doi. org/10. 1016/j. wasman. 2017. 02. 005.

DOI: 10.1016/j.wasman.2017.02.005

[10] D. W. Reed, Y. Fujita, D. L. Daubaras, Y. Jiao, V. S. Thompson, Bioleaching of rare earth elements from waste phosphors and cracking catalysts, Hydrometallurgy, 166 (2016) 34-40.

DOI: 10.1016/j.hydromet.2016.08.006

[11] M. A. Al-Ghouti, R. H. Abuqaoud, M. H. Abu-Dieyeh, Detoxification of mercury pollutant leached from fluorescent lamps using bacterial strains, Waste Manag. 49 (2016) 238-244.

DOI: 10.1016/j.wasman.2015.12.013

[12] C. Tunsu, T. Retegan, C. Ekberg, Sustainable processes development for recycling of fluorescent phosphorous powders- rare earths and mercury separation, literature report, Chalmers university of Technology Sweden (2011), pp.33-65.

[13] D. W. Shin, J. G. Kim, Study on the separation and extraction of rare earth elements from the phosphor recovered from end of life fluorescent lamps, Arch. Metall. Mater. 60 (2015) 1257-1260.

DOI: 10.1515/amm-2015-0109

[14] U. Müller, Anorganische Strukturchemie, Teubner, 3th Edition (1996).

[15] S. O. Rastegar, S. M. Mousavi, S. A. Shojaosadati, Cr and Ni recovery during bioleaching of dewatered metal-plating sludge using Acidithiobacillus ferrooxidans, Bioresource Technol. 167 (2014) 61-68.

DOI: 10.1016/j.biortech.2014.05.107

[16] R. Auerbach, K. Bokelmann, R. Stauber, S. Schnell, S. Ratering, Bioleaching of metals and rare earth elements from secondary raw materials using acidophilic bacteria and fungi, Chem. Ing. Tech. 88/9 (2016) 1346.

DOI: 10.1002/cite.201650166
