Synthesis and Characterisation of Anodized Powder Metallurgy Mg-Ca Alloy

Abstract:

The Mg-1wt.%Ca alloy was fabricated using powder metallurgy method. The anodizing process were done by using different voltage (5V, 15V, 25V) and concentration of KOH (0.1M, 0.5M, 1.0M). The surface changes on PM Mg/1wt.%Ca resulted by anodizing was analyzed using SEM-EDX and XRD pattern. Meanwhile, surface hardness was measured by micro-Vickers hardness machine. The experiment found different XRD pattern between all non-anodized and anodized samples. The study found that increasing the voltage will increase the hardness while increasing KOH concentration reduced the hardness. The relation of the hardness and oxide film formation can be analyzed using SEM-EDX and XRD pattern. The optimum value for voltage, KOH concentration and hardness are 25V, 0.1M and 27.2 HV. The XRD detect the changes in PM Mg/1wt.% Ca indicates the oxide film formation.

You might also be interested in these eBooks

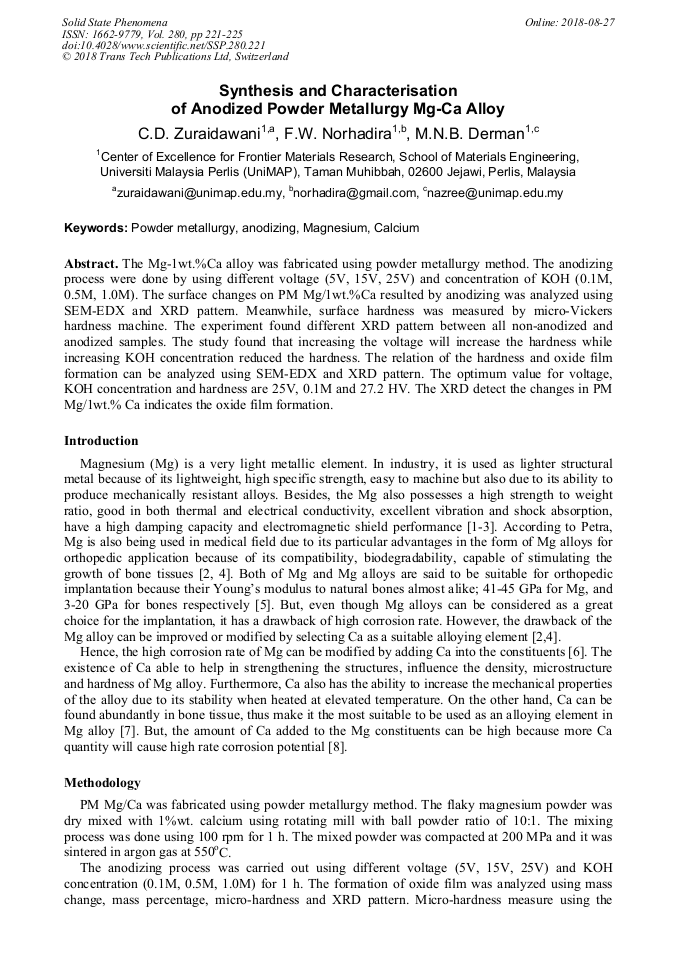

View Preview

Info:

Periodical:

Solid State Phenomena (Volume 280)

Pages:

221-225

DOI:

https://doi.org/10.4028/www.scientific.net/SSP.280.221

Citation:

Cite this paper

Online since:

August 2018

Authors:

C.D. Zuraidawani*, F.W. Norhadira, Mohd Nazree B. Derman

Keywords:

Anodizing, Calcium, Magnesium, Powder Metallurgy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Magnesium - Mg; Chemical properties of magnesium - Health effects of magnesium - Environmental effects of magnesium., Lenntech (2015).

Google Scholar

[2] W.-C. Kim, J.-G.Kim, J.-Y.Lee, and H.-K. Seok, Materials Letters, Vol. 62 (2008), pp.4146-4148.

Google Scholar

[3] H. Hornberger, S. Virtanen, and A. R. Boccaccini, Acta Biomaterialia, Vol. 8 pp.2442-2455.

Google Scholar

[4] P. Gunde, Biodegradable Magnesium Alloys For Osteosynthesis – Alloy Development And Surface Modifications,, (Dipl. Ing. ETH Zurich.vol. PhD in Doctor of Sciences Greifensee: ETH Zurich, 2010, p.143).

Google Scholar

[5] G. E. J. Poinern, S. Brundavanam, and D. Fawcett, Journal of Biomedical Engineering, Vol. 2 (2012), pp.218-240.

Google Scholar

[6] Y. Wan, G. Xiong, H. Luo, F. He, Y. Huang, and X. Zhou, Materials & Design, Vol. 29 (2008), p.2034-(2037).

Google Scholar

[7] Y. Guo and M. Salahshoor, Journal of Materials, Vol. 5 (2012), pp.135-155.

Google Scholar

[8] M. Salahshoor and Y. B. Guo, The International Journal of Advanced Manufacturing Technology, Vol. 64, pp.133-144.

Google Scholar
