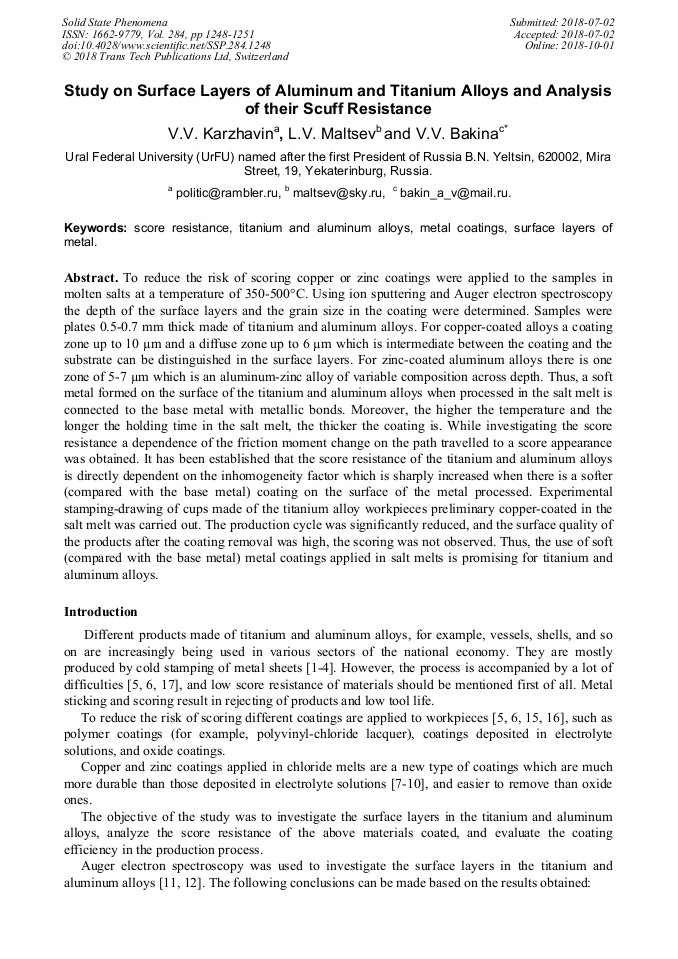

Study on Surface Layers of Aluminum and Titanium Alloys and Analysis of their Scuff Resistance

Abstract:

To reduce the risk of scoring copper or zinc coatings were applied to the samples in molten salts at a temperature of 350-500°C. Using ion sputtering and Auger electron spectroscopy the depth of the surface layers and the grain size in the coating were determined. Samples were plates 0.5-0.7 mm thick made of titanium and aluminum alloys. For copper-coated alloys a coating zone up to 10 μm and a diffuse zone up to 6 μm which is intermediate between the coating and the substrate can be distinguished in the surface layers. For zinc-coated aluminum alloys there is one zone of 5-7 μm which is an aluminum-zinc alloy of variable composition across depth. Thus, a soft metal formed on the surface of the titanium and aluminum alloys when processed in the salt melt is connected to the base metal with metallic bonds. Moreover, the higher the temperature and the longer the holding time in the salt melt, the thicker the coating is. While investigating the score resistance a dependence of the friction moment change on the path travelled to a score appearance was obtained. It has been established that the score resistance of the titanium and aluminum alloys is directly dependent on the inhomogeneity factor which is sharply increased when there is a softer (compared with the base metal) coating on the surface of the metal processed. Experimental stamping-drawing of cups made of the titanium alloy workpieces preliminary copper-coated in the salt melt was carried out. The production cycle was significantly reduced, and the surface quality of the products after the coating removal was high, the scoring was not observed. Thus, the use of soft (compared with the base metal) metal coatings applied in salt melts is promising for titanium and aluminum alloys.

• Periodical: Solid State Phenomena (Volume 284)
• Pages: 1248-1251
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.284.1248
• Online since: October 2018
• Authors: Vladimir V. Karzhavin, Lev V. Maltsev, Viktoriya V. Bakina*
• Keywords: Aluminum Alloys, Metal Coatings, Score Resistance, Surface Layers of Metal, Titanium Alloys

References

[1] A.A. Il'in., B.A. Kolachev., I.S. Polkin, Titanium alloys. Composition, structure, properties, Directory, Moscow, VILS – MATI, (2009).

[2] C.X. Cui, B.M. Hu, L.C. Zhao, S.J. Liu, Titanium alloy production technology, market prospects and development, Mater.Des.,32 (2011) 1664-1691.

[3] V.M. Beleckiy, G.A. Krivov, Aluminium alloys (composition, properties, technological process, application), Moscow, KOMINTEKH Publ, (2005).

[4] J.P. Mora., F.S. Bovard, J.D. Chrzan., P.Vandenburgh, Corrjsion Perfomance of New Generation Fluminum-Lithium Alloys for Aerospace Application, 13- th International Conference on Aluminum Alloys (ICAA13). Hoboken, NJ, USA, John Wiley & Sons, Inc., (2012).

DOI: 10.1002/9781118495292.ch62

[5] V.P. Romanovsky, Guide to cold forming, Leningrad, Mashinostroenie, (1979).

[6] E.H. Melnikov, Cold forming manual, Moscow, Mashinostroenie Publ., (2003).

[7] V.V. Karzhavin and G.V. Mineev, R.F. Patent 2,359,793 (2009).

[8] V.V. Karzhavin, T.I. Manukhina and A.N. Zyuzin. U.S.S.R. Patent 1,708,914. (1992).

[9] V.V. Karzhavin and I.V. Ukhlov, R.F. Patent 2,468,113. (2011).

[10] V.V,Karzhavin, Development and research processes multijunction deep drawing stainless steel, Machines Theory of metallurgical and mining equipment Hi. Sat., Sverdlovsk, (1984) 21-25.

[11] V.V. Karzhavin, V.V. Bakina, S.F. Kamenskik, A study of the antifriction coating from the melt of salts and the diffusion of alloying elements in the surface layers of stainless steel during chemical-thermal treatment, Universum: technical sciences: a scientific journal, 12(33) (2016).

[12] D. Briggs, M.P .Siha, Surface analysis by Auger and X-ray photoelectron spectroscop, Moscow: Mir, (1987).

[13] I.V. Kragelsky, M.N. Dobychin, V.S. Kombalov, Basics of calculations for friction and wear, Publ. Mechanical Engineerin, Moscow, (1977).

[14] A.P. Gubarev, L.V. Maltsev, Efficiency of lubricants against scoring during cold plastic deformation, Theory of machines of metallurgical and mining equipmen,. Interuniversity. Sat. Sverdlovsk., (1989) 48-53.

[15] A.P. Grudev., Yu.V., Zilberg., V.T. Tilik, Friction and lubrication in the treatment of metals by pressure,. Moscow, Metallurgy, (1982).

[16] Ya.N Lipkin., V.M. Shtanko,. Chemical and electrochemical treatment of steel pipes, Moscow, Metallurgy, (1982).

[17] K.N. Burtsev, Metal bellow,. Moscow – Leningrad, Mashgiz, (1965).

[18] V.V. Karzhavin, I.V. Ukhlov, Improving hard-stamping technology materials by processing in molten salts, Agriculture: Russian regions, 12 (2012) 15-21.

[19] V.V. Karzhavin, S.G. Shibeko, Application of special coatings as a way of facilitating the surface preparation of parts for their joining by soldering, Strengthening technologies and coatings, 7 (2014) 7-10.

[20] V.V. Karzhavin., B.N. Guzanov, G.V. Mineevv, Methods for surface preparation for brazing dissimilar metallic materials, Welding International, 24(9) (2010) 726-729.

DOI: 10.1080/09507116.2010.486175
