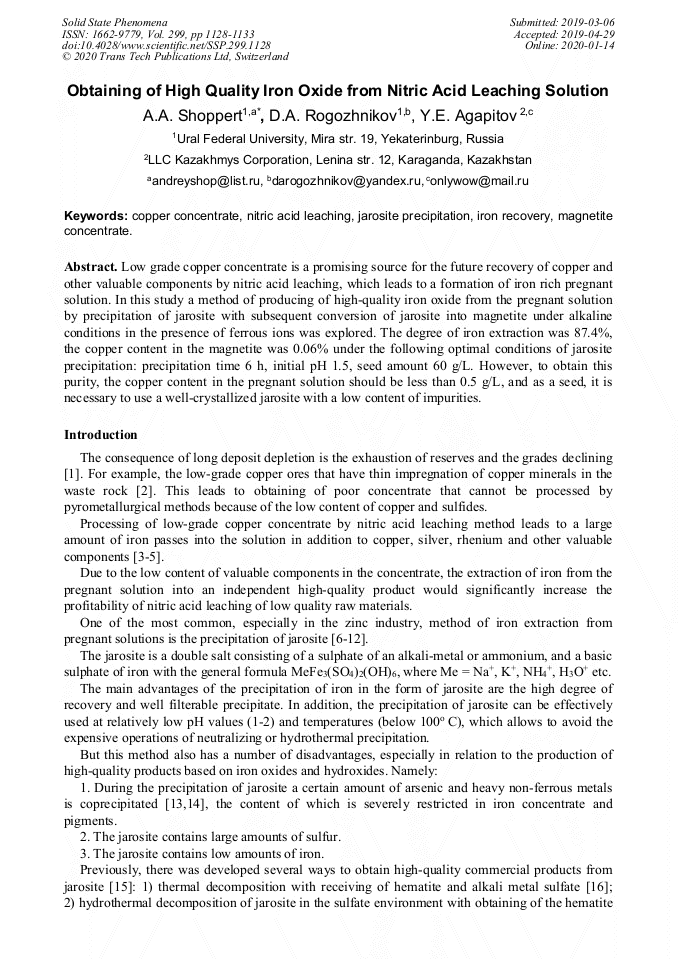

Obtaining of High Quality Iron Oxide from Nitric Acid Leaching Solution

Abstract:

Low grade copper concentrate is a promising source for the future recovery of copper and other valuable components by nitric acid leaching, which leads to a formation of iron rich pregnant solution. In this study a method of producing of high-quality iron oxide from the pregnant solution by precipitation of jarosite with subsequent conversion of jarosite into magnetite under alkaline conditions in the presence of ferrous ions was explored. The degree of iron extraction was 87.4%, the copper content in the magnetite was 0.06% under the following optimal conditions of jarosite precipitation: precipitation time 6 h, initial pH 1.5, seed amount 60 g/L. However, to obtain this purity, the copper content in the pregnant solution should be less than 0.5 g/L, and as a seed, it is necessary to use a well-crystallized jarosite with a low content of impurities.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 1128-1133
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.1128
• Online since: January 2020
• Authors: Andrey A. Shoppert*, Denis A. Rogozhnikov, Y.E. Agapitov
• Keywords: Copper Concentrate, Iron Recovery, Jarosite Precipitation, Magnetite Concentrate, Nitric Acid Leaching

References

[1] L. Sinclair, J. Thompson, In situ leaching of copper: challenges and future prospects, Hydrometallurgy. 157 (2015) 306–324.

DOI: 10.1016/j.hydromet.2015.08.022

[2] D.A. Singer, Future copper resources, Ore Geol. Rev. 86 (2017) 271–279.

[3] D.A. Rogozhnikov, B.V. Kolmachikhin, Polymetallic ore concentration middlings Nitric Acid leaching kinetics, Solid State Phenomena. 265 (2017) 1065-1070.

DOI: 10.4028/www.scientific.net/ssp.265.1065

[4] D.A. Rogozhnikov, S.V. Mamyachenkov, O.S. Anisimova, Nitric Acid Leaching of Copper-Zinc Sulfide Middlings, Metallurgist. 60 (2016) 229-233.

DOI: 10.1007/s11015-016-0278-7

[5] C.G. Anderson, The Optimization, Design and Economics of Industrial NSC Oxidative Pressure Leaching Of Complex Sulfide Concentrates, Int. J. Eng. Sci. 2 (2013) 01-16.

[6] J.E. Dutrizac, Factors affecting alkali jarosite precipitation, Metall. Trans. B. 14 (1983) 531-539.

DOI: 10.1007/bf02653939

[7] J.E. Dutrizac, The effect of seeding on the rate of precipitation of ammonium jarosite and sodium jarosite, Hydrometallurgy. 42 (1996) 293-312.

DOI: 10.1016/0304-386x(95)00111-s

[8] A.H. Kaksonen, C. Morris, F. Hilario, S.M. Rea, J. Li, K.M. Usher, J. Wylie, M.P. Ginige, K.Y. Cheng, C. Du, Plessis, Iron oxidation and jarosite precipitation in a two-stage airlift bioreactor, Hydrometallurgy. 150 (2014) 227-235.

DOI: 10.1016/j.hydromet.2014.05.020

[9] Y. Song, M. Wang, J. Liang, L. Zhou, High-rate precipitation of iron as jarosite by using a combination process of electrolytic reduction and biological oxidation, Hydrometallurgy. 143 (2014) 23-27.

DOI: 10.1016/j.hydromet.2014.01.003

[10] J.E. Dutrizac, Comparative rates of precipitation of ammonium jarosite and sodium jarosite in ferric sulphate – sulphuric acid media, Can. Metall. Quart. 49 (2010) 121-130.

DOI: 10.1179/cmq.2010.49.2.121

[11] J.E. Dutrizac, J.L. Jambor, Jarosites and their application in hydrometallurgy, Rev. Mineral. Geochem. 40 (2000) 404-452.

[12] J.E. Dutrizac, Effectiveness of jarosite species for precipitating sodium jarosite, JOM. 51 (1999) 30-32.

DOI: 10.1007/s11837-999-0168-6

[13] F. Elgersma, G.J. Witkamp, G.M. van Rosmalen, Incorporation of zinc in continuous jarosite precipitation, Hydrometallurgy. 33 (1993) 313-339.

DOI: 10.1016/0304-386x(93)90070-t

[14] K.A. Hudson-Edwards, K. Wright, Computer simulations of the interactions of the (012) and (001) surfaces of jarosite with Al, Cd, Cu2+ and Zn, Geochim. Cosmochim. Acta. 75 (2011) 52-62.

DOI: 10.1016/j.gca.2010.10.004

[15] W. W. Kunda, H. Veltman, Decomposition of Jarosite, Metall. Trans. B. 10 (1979) 439-446.

[16] M. Kerolli-Mustafa, M. Vilco, L. Curkovic, J. Sipusic, Investigation of thermal decomposition of jarosite tailing waste, J Therm. Anal. Calorim. 123 (2016) 421–430.

DOI: 10.1007/s10973-015-4881-9

[17] J.E. Dutrizac, Converting jarosite residues into compact hematite products, JOM. 42 (1990) 36-39.

DOI: 10.1007/bf03220521

[18] J. Bohacek, Preparing particulate magnetites with pigment properties from suspicions of basic iron (III) sulfates with the structure of jarosite, J. Mater. Sci. 28 (1993) 2827-2832.

DOI: 10.1007/bf00356226

[19] H. Vu, J. Jandova, T. Hron, Recovery of pigment-quality magnetite from jarosite precipitates, Hydrometallurgy, 10 (2010) 1-6.

DOI: 10.1016/j.hydromet.2009.10.007

[20] J.L.T. Hage, R.D. Shuiling, S.P. Vriend, Production of magnetite from sodium jarosite under reducing hydrothermal conditions. The reduction of Fe(III) to Fe(II) with cellulose, Can. Metall. Quart. 38 (1999) 267-276.

DOI: 10.1179/cmq.1999.38.4.267

[21] Y.M. Shneerson, V.F. Kozyrev, L.V. Chugaev, A.Y. Lapin, K.A. Plekhanov, G.V. Skopov, A.B. Lebed, G.P. Kharitidi, V.D. Shevelev, RU Patent 2365641. (2009).
