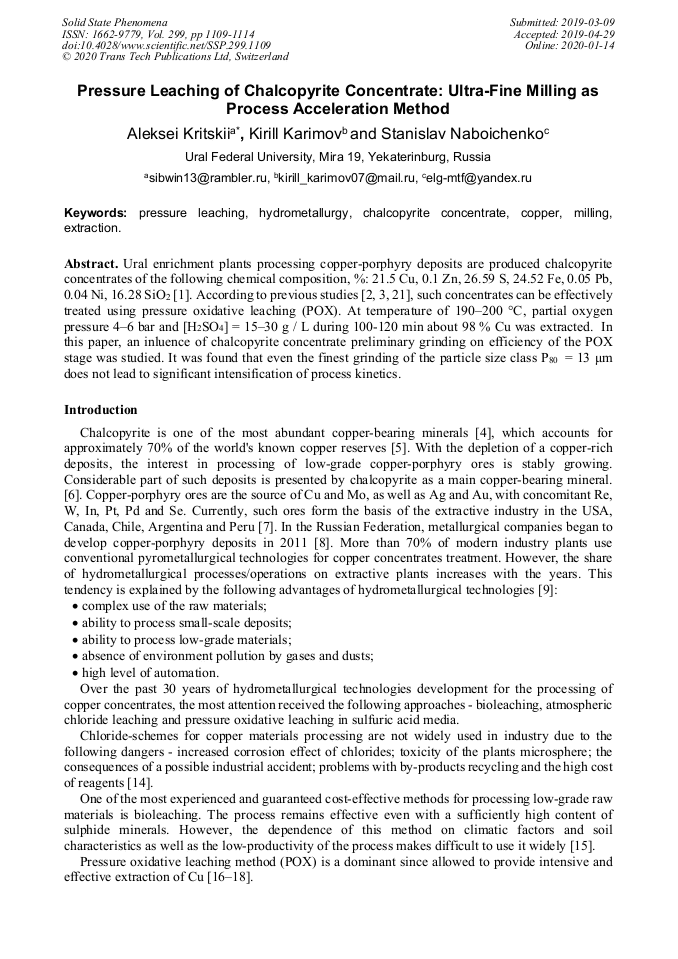

Pressure Leaching of Chalcopyrite Concentrate: Ultra-Fine Milling as Process Acceleration Method

Abstract:

Ural enrichment plants processing copper-porphyry deposits are produced chalcopyrite concentrates of the following chemical composition, %: 21.5 Cu, 0.1 Zn, 26.59 S, 24.52 Fe, 0.05 Pb, 0.04 Ni, 16.28 SiO₂ [1]. According to previous studies [2, 3, 21], such concentrates can be effectively treated using pressure oxidative leaching (POX). At temperature of 190–200 °C, partial oxygen pressure 4–6 bar and [H₂SO₄] = 15–30 g / L during 100-120 min about 98 % Cu was extracted. In this paper, an inluence of chalcopyrite concentrate preliminary grinding on efficiency of the POX stage was studied. It was found that even the finest grinding of the particle size class P₈₀ = 13 μm does not lead to significant intensification of process kinetics.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 1109-1114
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.1109
• Online since: January 2020
• Authors: Aleksei Kritskii*, Kirill Karimov, Stanislav Naboichenko
• Keywords: Chalcopyrite Concentrate, Copper, Extraction, Hydrometallurgy, Milling, Pressure Leaching

References

[1] I.A. Altushkin, А.Е. Cherepovitsin, J.А. Korol, Practical implementation of the mechanism of sustainable development in the creation and formation of the mining and metallurgical holding of the copper industry in Russia, Publishing house «Ore and Metals», Moscow, (2016).

[2] A.V. Kritskii, K.А. Karimov, S.S. Naboichenko, High-temperature leaching of chalcopyrite concentrate, Conference proceedings of IX international congress «Non-ferrous metals and minerals 2017», Krasnoyarsk, Russia, 1 (2017) 1089–1091.

[3] A.V. Kritskii, K.A. Karimov, S.S. Naboichenko, Low-temperature leaching of chalcopyrite concentrate, Conference proceedings of IX international congress «Non-ferrous metals and minerals 2017», Krasnoyarsk, Russia, 1 (2017) 1081–1083.

[4] Information on http://www.bhpbilliton.com/home/investors/reports/Documents/ 2012/ 1210 01 _ Escondida%20Site%20Visit% 20Presentation.pdf.

[5] Mudd, G.M. The environmental sustainability of mining in Australia: key mega- trends and looming constraints. Resource, 35 (2010) 98–115.

DOI: 10.1016/j.resourpol.2009.12.001

[6] Information on http://www.indexmundi.com/en/commodities/minerals/copper/copper_t20. html.

[7] Information on http://www.indexmundi.com/en/commodities/minerals/copper/copper_t40. html.

[8] Dreisinger D. Copper leaching from primary sulfides: options for biological and chemical extraction of copper //Hydrometallurgy, 83 (2006) 10–20.

DOI: 10.1016/j.hydromet.2006.03.032

[9] Peacey J. Copper hydrometallurgy — current status, preliminary economics, future direction and positioning versus smelting / X. Guo, E. Robles // Trans. Nonferrous Met. Soc., 14 (2003) 560–568.

[10] Chen, X., Peng, Y., Bradshaw, D. Effect of regrinding conditions on pyrite flotation in the presence of copper ions. Int. J. Miner. Process. 125 (2013) 129–136.

DOI: 10.1016/j.minpro.2013.08.007

[11] Corrans I.J., Angove J.E. Ultra fine milling for the recovery of refractory gold, Minerals Engineering 4 (1991) 763–776.

DOI: 10.1016/0892-6875(91)90064-3

[12] Orumwense O.A., Forssberg E. Superfine and ultrafine grinding — a literature survey. Mineral Processing and Extractive Metallurgy Review, 11 (1992) 107–127.

DOI: 10.1080/08827509208914216

[13] Palmer C.M., Johnson G.D. The Activox process: Growing significance in the nickel industry. 2005. JOM (July).

DOI: 10.1007/s11837-005-0251-6

[14] Watling, H.R. Chalcopyrite hydrometallurgy at atmospheric pressure: 2. Review of acidic chloride process options. Hydrometallurgy 146 (2014) 96–110.

DOI: 10.1016/j.hydromet.2014.03.013

[15] Dresher W.H. Producing Copper Nature's Way: Bioleaching. CND: INNOVATIONS (2004) p.10–15.

[16] Naboichenko, S.S., Ni, L., Shneerson, Y, Chugaev, L. Autoclave hydrometallurgy of non-ferrous metals. 2nd ed. Naboichenko S, editor. Yekaterinburg: GOU Ural State Polytechnic University - UPI; (2002).

DOI: 10.1134/s1070427208120318

[17] McDonald, R.G., Muir, D. Pressure oxidation leaching of chalcopyrite. Part I. Comparison of high and low temperature reaction kinetics and products. Hydrometallurgy 86 (2007) 191–205.

DOI: 10.1016/j.hydromet.2006.11.015

[18] Hackl, R.P., Dreisinger, D.B., Peters, E., King, J.A. Passivation of chalcopyrite during oxidative leaching in sulfate media. Hydrometallurgy 39 (1005) 25–48.

DOI: 10.1016/0304-386x(95)00023-a

[19] King J.A., Dreisinger D.B., Knight D.A., The Total Pressure Oxidation of Copper Concentrates, (Presentation at the CIMM District 6 Meeting, Vancouver, B.C., March 1994).

[20] Shijie W. Copper leaching from chalcopyrite concentrates. The Journal of The Minerals, Metals & Materials Society (TMS). Volume 57 (2005) 48–51.

[21] A.V. Kritskii, K.A. Karimov, S.S. Naboichenko, Pressure leaching of chalcopyrite concentrate, International seminar on metallurgy and materials (ISMM 2017), AIP Conference Proceedings 1964, 020048 (2018).

DOI: 10.4028/www.scientific.net/ssp.299.1052
