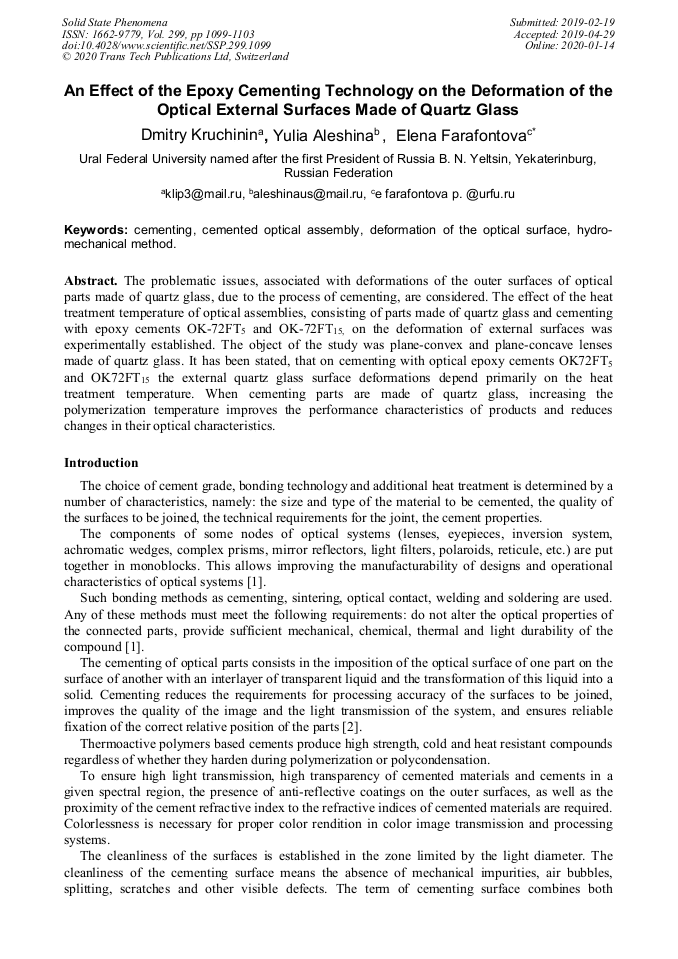

An Effect of the Epoxy Cementing Technology on the Deformation of the Optical External Surfaces Made of Quartz Glass

Abstract:

The problematic issues, associated with deformations of the outer surfaces of optical parts made of quartz glass, due to the process of cementing, are considered. The effect of the heat treatment temperature of optical assemblies, consisting of parts made of quartz glass and cementing with epoxy cements OK-72FT₅ and OK-72FT_15, on the deformation of external surfaces was experimentally established. The object of the study was plane-convex and plane-concave lenses made of quartz glass. It has been stated, that on cementing with optical epoxy cements OK72FT₅ and OK72FT₁₅ the external quartz glass surface deformations depend primarily on the heat treatment temperature. When cementing parts are made of quartz glass, increasing the polymerization temperature improves the performance characteristics of products and reduces changes in their optical characteristics.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 1099-1103
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.1099
• Online since: January 2020
• Authors: Dmitry Kruchinin, Yulia Aleshina, Elena P. Farafontova*
• Keywords: Cemented Optical Assembly, Cementing, Deformation of the Optical Surface, Hydro-Mechanical Method

References

[1] M.A. Okatov, ed., Optical Technician's Handbook (Politekhnika, St. Petersburg, 2004).

[2] W. Moreau, Semiconductor Lithography: Principles, Practices, and Materials (Springer, 1988).

[3] V.E. Levinok and V.B. Martynova, Strain-free cementing of quartz to Invar, J. Opt. Technol. 62 (1995) 724-727.

[4] V.V. Potelov, The possibility of increasing the strength of cemented optical assemblies when there is a large difference of the linear thermal-expansion coefficients, J. Opt. Technol. 76 (2009) 371-372.

DOI: 10.1364/jot.76.000371

[5] D.Y. Kruchinin, O.B. Yakovlev and M.P. Andronov, Cementing optical items that have zero cleanliness classes of polished surfaces, J. Opt. Technol. 78 (2011) 279-280.

DOI: 10.1364/jot.78.000279

[6] D.Yu. Kruchinin and O.B. Yakovlev, Russian Patent 2,454,379 (2012).

[7] D.Yu. Kruchinin, L.T. Garayshina, D.N. Babushkina and D.E. Gaft, The influence of polymerization temperature of OK72FT15 cement brand on deformation of external surfaces of optical cemented assemblies, in: Innovation Advances in Technical Sciences, Moscow, Evansys, 2017, p.43–45.

[8] D.Yu. Kruchinin and E.P. Farafontova, How the state of optical surfaces before cementing affects the strength of optical assemblies, J. Opt. Technol. 85 (2018) 648-650.

DOI: 10.1364/jot.85.000648

[9] Optical cements. Brands, Organization standard STO-33122646-1.1-2014 (S. I. Vavilov GOI, St. Petersburg, 2014).

[10] Optical cements. Brands, OST 3-6894-97.

[11] Optical epoxy cement OK-72FT technical specification, TU 2252-005-33122646-14.

[12] Optical components. Typical technological rinsing processes, OST 3-6419-88.

[13] Optical cements. Control and measurement methods, Organization standard STO-33122646-1.2-2014 (S. I. Vavilov GOI, St. Petersburg, 2014).

[14] Optical cements. Control and testing methods, OST 3-6187-95.

[15] Cements for optical components. Typical technological cementing processes, OST 3-5555-84.

[16] Optical cements. Technological process requirements for making cements and cementing optical components, OST 3-2989-93.

[17] A. Moroño, R. Vila and E.R. Hodgson, KU1 and KS-4V quartz glass lenses for remote handling and diagnostic optical transmission systems, J. Nucl. Mat. 329-333 (2004) 1438-1441.

DOI: 10.1016/j.jnucmat.2004.04.163

[18] V.K. Bityukov and V.A. Petrov, Optical Quartz Glass as a Reference Substance for the Thermal Conductivity Coefficient of Partially Transparent Materials, High Temperature. 38 (2000) 293-299.

DOI: 10.1007/bf02755959

[19] Y.H. Li, F.S. Liu, H.Y. Ma, X.L. Cheng, X.J. Ma, Y.Y. Sun, M.J. Zhang and X.D. Xue, Optical Transparency and Development of Failure in Quartz Glass Under Dynamic Load, Wuli Xuebao. 59 (2010) 2104-2108.

DOI: 10.7498/aps.59.2104

[20] D.E. Zhivulin, M.S. Zubov and A.N. Bryzgalov, Effect of heat treatment on the microhardness of quartz glass of the KU-1 brand, Glass Phys. Chem. 41 (2015) 385-388.

DOI: 10.1134/s1087659615040185

[21] Y.I. Kolesov, M.Y. Kudryavtsev and N.Y. Mikhailenko, Types and Compositions of Glass for Production of Continuous Glass Fiber (Review), Glass and Ceramics. 58 (2001) 197-202.

DOI: 10.1023/a:1012386814248

[22] D.E. Zhivulin, M.S. Zubov and A. N. Bryzgalov, Influence of the Temperature of Treatment of KU-1 Quartz Glass on the Value of the Elastic Recovery of a Microindentation Imprint, Glass Phys. Chem. 42 (2016) 154-157.

DOI: 10.1134/s1087659616020176

[23] Silica optical glass. General specifications, GOST 15130-86.
