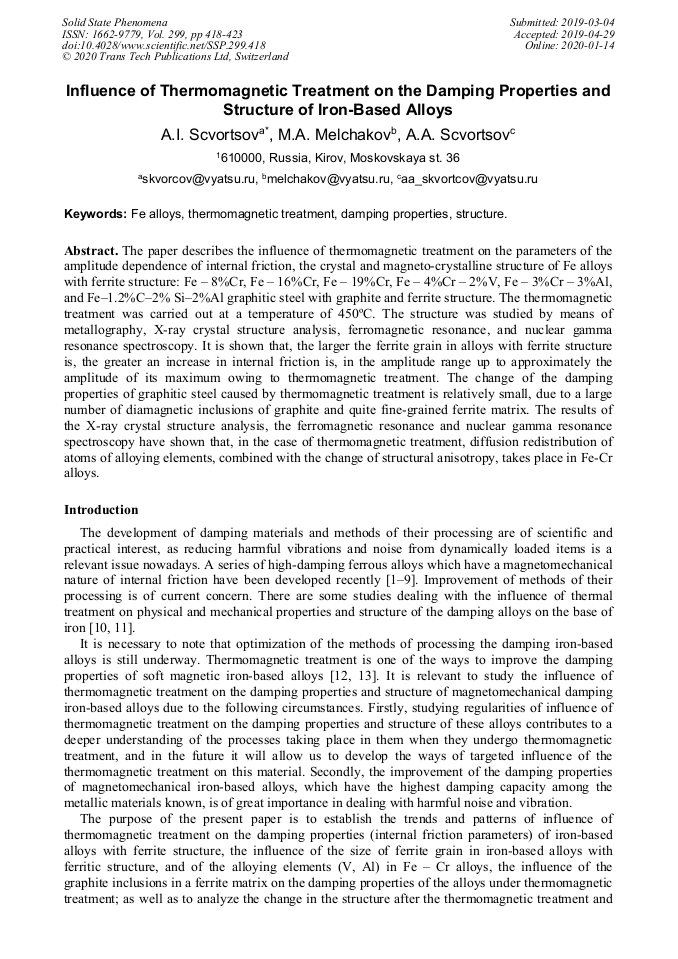

Influence of Thermomagnetic Treatment on the Damping Properties and Structure of Iron-Based Alloys

Abstract:

The paper describes the influence of thermomagnetic treatment on the parameters of the amplitude dependence of internal friction, the crystal and magneto-crystalline structure of Fe alloys with ferrite structure: Fe – 8%Cr, Fe – 16%Cr, Fe – 19%Cr, Fe – 4%Cr – 2%V, Fe – 3%Cr – 3%Al, and Fe–1.2%C–2% Si–2%Al graphitic steel with graphite and ferrite structure. The thermomagnetic treatment was carried out at a temperature of 450ºС. The structure was studied by means of metallography, X-ray crystal structure analysis, ferromagnetic resonance, and nuclear gamma resonance spectroscopy. It is shown that, the larger the ferrite grain in alloys with ferrite structure is, the greater an increase in internal friction is, in the amplitude range up to approximately the amplitude of its maximum owing to thermomagnetic treatment. The change of the damping properties of graphitic steel caused by thermomagnetic treatment is relatively small, due to a large number of diamagnetic inclusions of graphite and quite fine-grained ferrite matrix. The results of the X-ray crystal structure analysis, the ferromagnetic resonance and nuclear gamma resonance spectroscopy have shown that, in the case of thermomagnetic treatment, diffusion redistribution of atoms of alloying elements, combined with the change of structural anisotropy, takes place in Fe-Cr alloys.

• Periodical: Solid State Phenomena (Volume 299)
• Pages: 418-423
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.299.418
• Online since: January 2020
• Authors: A.I. Scvortsov*, M.A. Melchakov, A.A. Scvortsov
• Keywords: Damping Properties, Fe Alloys, Structure, Thermomagnetic Treatment

References

[1] A. Kochard, Magnetomechanical Damping, Magnetic Properties of Metals and Alloys. Мoscow, Foreign Languages Publishing House, (1961) 328–363.

[2] R.C. Frank, J.W. Ferman, Magnetomechanical damping in iron–silicon alloys, Journal of Applied Physics. 36 (1965) 2235–2242.

DOI: 10.1063/1.1714457

[3] K. Amano, M. Sahashi, H. Tokoro, M. Nikagawa, High damping characteristics of Fe–Cr–Al alloys associated with their magnetic properties, Internal Friction and Ultrasonic Attenuation in Solids. Tokyo: University of Tokyo Press, (1977) 763–767.

[4] New Silent Alloy, showing high damping capacity (for noise control and vibration damping): Metal Production Division Prospectus, Japan. 9804 (1977).

[5] H. Masumoto, S. Sawaya, M. Hinai, Damping capacity of gentalloy in the Fe–Co alloys, Journal of the Japan Institute of Metals. 42 (1978) 337–340.

DOI: 10.2320/jinstmet1952.42.4_337

[6] A.I. Scvortsov, V.M. Kondratov, Damping Properties of Graphitized Steels with Ferritic and Ferritic-carbide Matrix, Metal Science and Heat Treatment of Metals. 8 (1980) 45–48.

DOI: 10.1007/bf00694721

[7] H. Masumoto, S. Sawaya, M. Hinai, Damping characteristics of gentalloy in the Fe–Mo system, Journal of the Japan Institute of Metals. 45(6) (1981) 631–636.

DOI: 10.2320/jinstmet1952.45.6_631

[8] Ch. Azcoıtia, A. Karimi, Magnetomechanical damping in Fe–Cr alloys and effect of Al and Mo addition, Journal of Alloys and Compounds. 310 (2000) 160–164.

DOI: 10.1016/s0925-8388(00)00938-5

[9] I.V. Cherednichenko, R.I. Malinina, V.S. Shubakov, A.S. Perminov, V.P. Menushenkov, Je.H. Dinislamova, Influence of molybdenum content and thermomagnetic treatment on the structure and magnetic properties of magnetically hard Fe–Cr–Co alloys, Physics and Chemistry of Materials Treatment, 3 (2011) 78–86.

DOI: 10.3103/s0967091210010213

[10] I.S. Golovon, I.A. Varvus, The Influence of Temperature on the Damping Capacity of High-chromium Ferritic Steel, Metal Science and Heat Treatment of Metals. (1994) 26–30.

DOI: 10.1007/bf01408602

[11] M. Kiyoshi, O. Yoshihira, M. Shinya, The mechanism of damping characteristics of Fe–Al alloy, Science and Industry. 64 (1990) 417–423.

[12] V.I. Pudov, Ju.N. Dragoshanskij, Laser Deformation and Thermomagnetic Treatment of Magnetic Soft Alloys, 53d International Scientific Conference Contemporary Issues of Durability,. V1 (2012) 228–230.

[13] A.I. Scvortsov, V.M. Kondratov, A.A. Scvortsov, Magnetic anisotropy and thermomagnetic processing of soft magnetic iron-based alloys, New Magnetic Materials of Microelectronics. (2002) 63–65.
