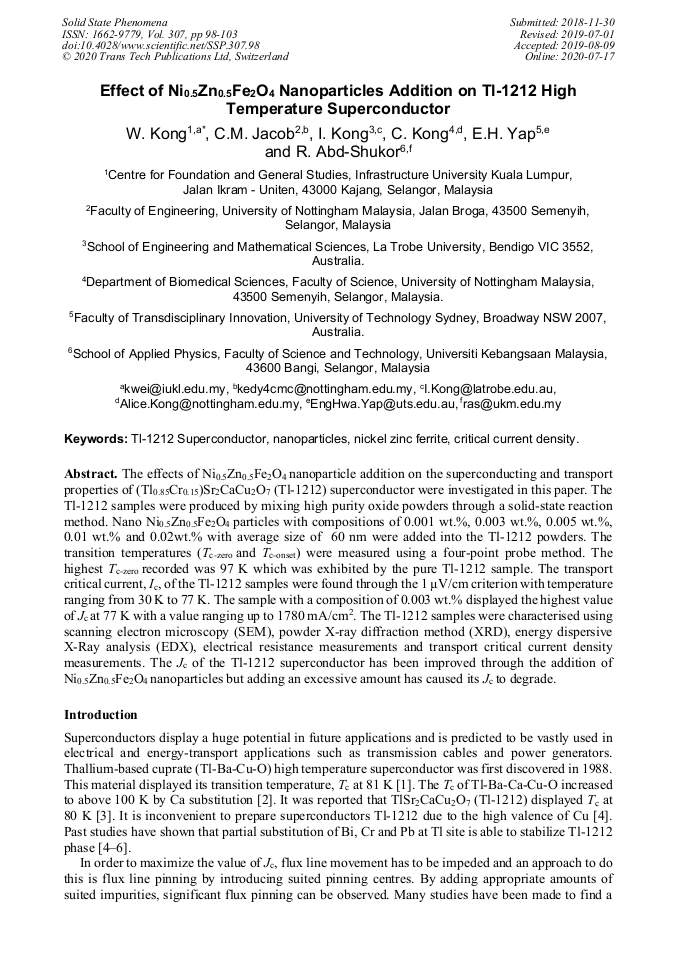

Effect of Ni_0.5Zn_0.5Fe₂O₄ Nanoparticles Addition on Tl-1212 High Temperature Superconductor

Abstract:

The effects of Ni_0.5Zn_0.5Fe₂O₄ nanoparticle addition on the superconducting and transport properties of (Tl_0.85Cr_0.15)Sr₂CaCu₂O₇ (Tl-1212) superconductor were investigated in this paper. The Tl-1212 samples were produced by mixing high purity oxide powders through a solid-state reaction method. Nano Ni_0.5Zn_0.5Fe₂O₄ particles with compositions of 0.001 wt.%, 0.003 wt.%, 0.005 wt.%, 0.01 wt.% and 0.02wt.% with average size of 60 nm were added into the Tl-1212 powders. The transition temperatures (T_c-zero and T_c-onset) were measured using a four-point probe method. The highest T_c-zero recorded was 97 K which was exhibited by the pure Tl-1212 sample. The transport critical current, I_c, of the Tl-1212 samples were found through the 1 µV/cm criterion with temperature ranging from 30 K to 77 K. The sample with a composition of 0.003 wt.% displayed the highest value of J_c at 77 K with a value ranging up to 1780 mA/cm². The Tl-1212 samples were characterised using scanning electron microscopy (SEM), powder X-ray diffraction method (XRD), energy dispersive X-Ray analysis (EDX), electrical resistance measurements and transport critical current density measurements. The J_c of the Tl-1212 superconductor has been improved through the addition of Ni_0.5Zn_0.5Fe₂O₄ nanoparticles but adding an excessive amount has caused its J_c to degrade.

• Periodical: Solid State Phenomena (Volume 307)
• Pages: 98-103
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.307.98
• Online since: July 2020
• Authors: Wei Kong, Christopher Jacob, Ing Kong, Cin Kong, Eng Hwa Yap, Roslan Abd-Shukor
• Keywords: Critical Current Density, Nanoparticles, Nickel Zinc Ferrite, Tl-1212 Superconductor

References

[1] Z.Z. Sheng, A.M. Hermann, A. El Ali, C. Almasan, J. Estrada, T. Datta, R.J. Matson, Superconductivity at 90 K in the Tl-Ba-Cu-O system, Phys. Rev. Lett. 60(10) (1988) 937-940.

DOI: 10.1103/physrevlett.60.937

[2] Z.Z. Sheng, A.M. Hermann, Bulk superconductivity at 120 K in the Tl–Ca/Ba–Cu–O system, Nature. 332 (1988) 138-139.

DOI: 10.1038/332138a0

[3] S.S.P. Parkin, V.Y. Lee, A.I. Nazzal, R. Savoy, R. Beyers, and S.J. La Placa, Tl1Can-1Ba2CunO2n+3 (n=1,2,3): A new class of crystal structures exhibiting volume superconductivity at up to 110 K, Phys. Rev. Lett. 61(6) (1988) 750-753.

[4] M.A. Subramanian, C.C. Torardi, J. Gopalakrishnan, P.L. Gai, J.C. Calabrese, T.R. Askew, R.B. Flippen, A.W. Sleight, Bulk Superconductivity up to 122 K in the Tl-Pb-Sr-Ca-Cu-O System, Science 242(4876) (1988) 249-252, (1988).

DOI: 10.1126/science.242.4876.249

[5] R.Abd-Shukor, S.V. Lo, Effect of Zn and Mn substitutions on the formation and superconductivity of Tl-1212 type phase (Tl0.85Cr0.15)Sr2CaCu2O7, J. Mater. Sci. Lett., 20 (2001) 159-161.

[6] S. Li, M. Greenblatt, Preparation and superconducting properties of (Tl,Bi)Sr2CaCu2Oy, Phys. C Supercond., 157(2) (1989), 365-369.

DOI: 10.1016/0921-4534(89)90029-4

[7] A.S. Adnan and R. Abd-Shukor, Effects of nano CaO in Tl(Sr1.5Yb0.5)CayCu2O7-δ superconductor, Sol. Stat. Sci. Techno., 18(2) (2010) 15-20.

[8] M.I. Yusof, Z. Salleh, A.K. Yahya, and M.H. Jumali, Superconductivity and enhancement of critical current density of Ta-substituted TlSr1212 with addition of nanosize MgO, Mater. Res. Innov., 13(3) (2009) 364-367.

DOI: 10.1179/143307509x441577

[9] T. Yuasa, T.J. Doi, A. Soeta, N. Inoue, K. Aihara, T. Kamo and S.P. Matsuda, Magnetic properties of the (1223) phase of Tl-Sr-Ca-Cu-O superconductors with strong pinning in liquid Nitrogen, Jpn. J. Appl. Phys. 31 (1992) L1176-1179.

DOI: 10.1143/jjap.31.l1176

[10] N.M. Hamdan, Kh.A. Ziq, A.S. Al-Harthi, Effect of fluorine on the critical current density of thallium based high Tc superconductors, J. Low Temp. Phys. 105 (1996) 1493-1498.

DOI: 10.1007/bf00753911

[11] W. Kong, A.K. Koh, R. Abd-Shukor, Kesan Penambahan Nano Ag Terhadap Suhu Genting dan Pembentukan fasa Superkonduktor (Tl0.85Cr0.15)Sr2CaCu2O7-δ, Sains Malaysiana 38 (2009) 419-422.

DOI: 10.17576/jsm-2021-5006-23

[12] W. Kong, I. Kong, M.M. Awang Kechik, R. Abd-Shukor, Phase formation and electrical transport properties of nano-sized SnO2 added (Tl0.85Cr0.15)Sr2CaCu2O7-δ superconductors, Sol. Stat. Phenom. 268 (2017) 315-319.

DOI: 10.4028/www.scientific.net/ssp.268.315

[13] N. Takezawa, K. Fukushima, Optimal size of an insulating inclusion acting as a pinning center for magnetic flux in superconductors: calculation of pinning force, Physica C 290 (1997) 31-37.

DOI: 10.1016/s0921-4534(97)01574-8

[14] I.F. Lyuksyutov, D.G. Naugle, Frozen Flux Superconductors, Mod. Phys. Lett. B 13 (1999) 491-497.

DOI: 10.1142/s0217984999000622

[15] M. Kurian, D.S. Nair, Effect of preparation conditions on nickel zinc ferrite nanoparticles: A comparison between sol-gel auto combustion and co-precipitation methods, J. Saudi Chem. Soc., 20 (2016) S517-S522.

DOI: 10.1016/j.jscs.2013.03.003

[16] W. F. Smith and J. Hashemi, Foundation of Materials Science and Engineering, McGraw-Hill, New York, (2009).

[17] R. Abd-Shukor, High Temperature Superconductors : Materials , Mechanisms and Applications, Academy of Sciences Malaysia, Kuala Lumpur, (2009).

[18] V. Corral-Flores, D. Bueno-Baqués, F. Paraguay-Delgado, C.E. Botez, R. Ibarra-Gómez, and R. Ziolo, Magnetic properties of nickel–zinc ferrite nanoparticles synthesized by coprecipitation, Phys. status solidi, 204(6) (2007) 1742-1745.

DOI: 10.1002/pssa.200675358

[19] A.V. Narlikar, Field penetration and magnetization of high temperature superconductors, Nova Science Publishers, New York,(1995).
