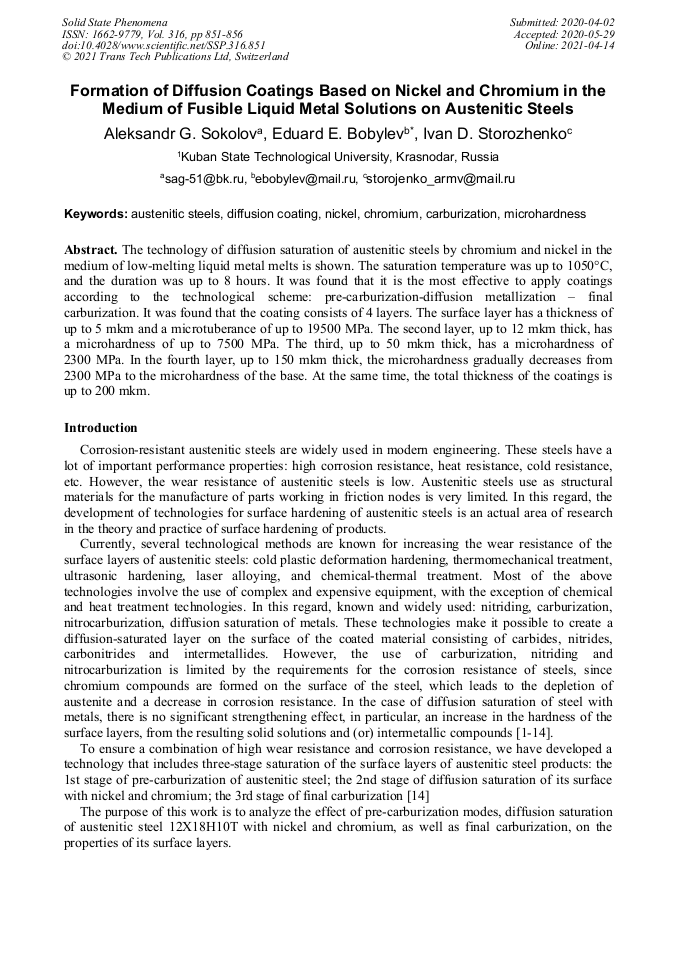

Formation of Diffusion Coatings Based on Nickel and Chromium in the Medium of Fusible Liquid Metal Solutions on Austenitic Steels

Abstract:

The technology of diffusion saturation of austenitic steels by chromium and nickel in the medium of low-melting liquid metal melts is shown. The saturation temperature was up to 1050°C, and the duration was up to 8 hours. It was found that it is the most effective to apply coatings according to the technological scheme: pre-carburization-diffusion metallization – final carburization. It was found that the coating consists of 4 layers. The surface layer has a thickness of up to 5 mkm and a microtuberance of up to 19500 MPa. The second layer, up to 12 mkm thick, has a microhardness of up to 7500 MPa. The third, up to 50 mkm thick, has a microhardness of 2300 MPa. In the fourth layer, up to 150 mkm thick, the microhardness gradually decreases from 2300 MPa to the microhardness of the base. At the same time, the total thickness of the coatings is up to 200 mkm.

• Periodical: Solid State Phenomena (Volume 316)
• Pages: 851-856
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.316.851
• Online since: April 2021
• Authors: Aleksandr G. Sokolov, Eduard E. Bobylev*, Ivan D. Storozhenko
• Keywords: Austenitic Steel, Carburization, Chromium, Diffusion Coating, Microhardness, Nickel

References

[1] Kharia Salman Hassan, Ahmed Ibrahim Razooqi and Munafhashim Ridha. Corrosion conduct of Austenitic stainless steel 316L subjected to surface treatment// Journal of Physics: Conference Series. – Vol.1032.

DOI: 10.1088/1742-6596/1032/1/012060

[2] Sokolov E.G., Artem'ev V.P., Effect of pores in powder materials on the formation of titanium and chromium diffusion coatings// Metal science and heat treatment, 2002.- Volume 44.- № 9-10, p.459–459.

[3] Bel'iakova V I, Vereschagina A A, Banas I P Diffusion-dispersion method of austenitic steel surface hardening// Metallurgy and heat treatment of metals-1991.- No. 11.-pp.2-4.

[4] Loskutov V.F., Khizhnyak V.G., Kunitskiy YU.A., Kindrachuk M.V. Diffusion coting. - K: Tekhnika, 1991. – P. 168.

[5] Coatings of various purposes for metallic materials: Textbook./ A.A. Il'in, G.B. Stroganov, S.V. Skvortsova. - M.: Al'fa-M: INFRA-M, 2013,144 s.: il. – (Sovremennye tekhnologii: Magistratura).

[6] Claire Boulesteix, Fernando Pedraza. Characterisation of aluminium diffusion coatings elaborated on austenitic stainless steels and on ferritic-martensitic steels// Surface and Coating technology. – Vol.339. – 2018. – pp.27-36.

DOI: 10.1016/j.surfcoat.2018.01.086

[7] Zhiqiang Li and others. Enhanced tensile properties and corrosion resistance of stainless steel with copper-coated graphene fillers// Journal of Materials Research and Technology. – Vol. 9. – №1. – 2020. – pp.404-412.

DOI: 10.1016/j.jmrt.2019.10.069

[8] Magdalena L. and others. Effect of mechanical properties of substrate and coating on wear performance of TiN- or DLC-coated 316LVM stainless steel// Wear. – Vol. 382-383. – 2017. – pp.62-70.

DOI: 10.1016/j.wear.2017.04.017

[9] E.L. Dalibon, D.Heim, Ch.Forsich, S.P. Brühl. Mechanical Behavior of Nitrided 316L Austenitic Stainless Steel Coated with a:C-H-Si// Procedia Material Science. – Vol. 9. – 2015. – pp.163-170.

DOI: 10.1016/j.mspro.2015.04.021

[10] N. Aravindan, M.V. Sangaranarayanan. Influence of solvent composition on the anti-corrosion performance of copper–polypyrrole (Cu–PPy) coated 304 stainless steel// Progress in Organic Coatings. – Vol.95. – 2016. – pp.38-45.

DOI: 10.1016/j.porgcoat.2016.02.008

[11] Sagar S., Shreya M., Cheruvu S.K., Ashish K.N. Effects of heat treatment on microstructure, mechanical and corrosion properties of 15-5 PH stainless steel parts built by selective laser melting process// Journal of Manufacturing Processes. – Vol. 50. – 2020. – 279-294.

DOI: 10.1016/j.jmapro.2019.12.048

[12] Patent no. 2127330, IPC C23C 8/26 (1995) heat treatment Method for forming a high – strength austenitic surface layer on stainless steel / Hans burns DE-claimed 3.10.1994; pub. 10.03.(1999).

[13] V. I. Belyakova, A. A. Vereshchagina, and I. P. Banas. Diffusion-dispersion method for hardening the surface of austenitic steel / / Metallology and heat treatment of metals-1991.- No. 11.- P. 2-4.

DOI: 10.1007/bf00811056

[14] Pat. No. 2679318 MPK S23S 2/10, S23S 11/02 (2006.01) Method of diffusion saturation of products made of austenitic steels for obtaining a wear-resistant coating on the surface of steels / A. G. Sokolov of the Russian Federation, E. E. Bobylev of the Russian Federation, R. A. Popov-declared 21.03.2018, pub.07.02.19, Byul. No. 4.

[15] Sokolov A. G. Diffusive surface alloying of structural and tool steels in the medium of low-melting liquid-metal solutions /KubSTU. - Krasnodar: Publishing House-YUG, (2019).

[16] Patent no. 2521187, IPC S23C 10/18; S23C 2/04 (2006.01) Device for diffusion metallization in the medium of low-melting liquid metal solutions / A. G. Sokolov of the Russian Federation-declared 25.10.12; pub. 27.06.2014, Byul. No. 18.

[17] Il'in A.A., Stroganov G.B., Skvortsova S.V. Coatings of various purposes for metallic materials: a tutorial.Moscow, Al'fa-M: NITs INFRA-M, 2013,144 p.

[18] Zoltan Balogh, Guido Schmitz. Diffusion in metals and alloys// Physical Metallurgy (Fifth Edition). – 2014. – P. 387-559.

DOI: 10.1016/b978-0-444-53770-6.00005-8

[19] Sokolov A.G., Bobylyov E.E. Influence of the diffusion titanizing from low-melting liquid metal medium on the performance of Ti-WC-Co and WC-Co cutting carbide-tipped tool. Obrabotka metallov (tekhnologiya, oborudovanie, instrumenty) = Metal Working and Material Science, 2018, vol. 20, no. 4, p.46–59.

DOI: 10.17212/1994-6309-2018-20.4-46-59

[20] Bobylyov E.E. Formation of diffusion titanium coatings from liquid metal media solutions on hard alloys WC-Co and TIC-WC-Co// Journal of Physics: Conference Series. – Vol.1399.

DOI: 10.1088/1742-6596/1399/4/044055
